U-Line U2224DWRINT00A User Manual

USER GUIDE
Troubleshooting - Extended 4
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

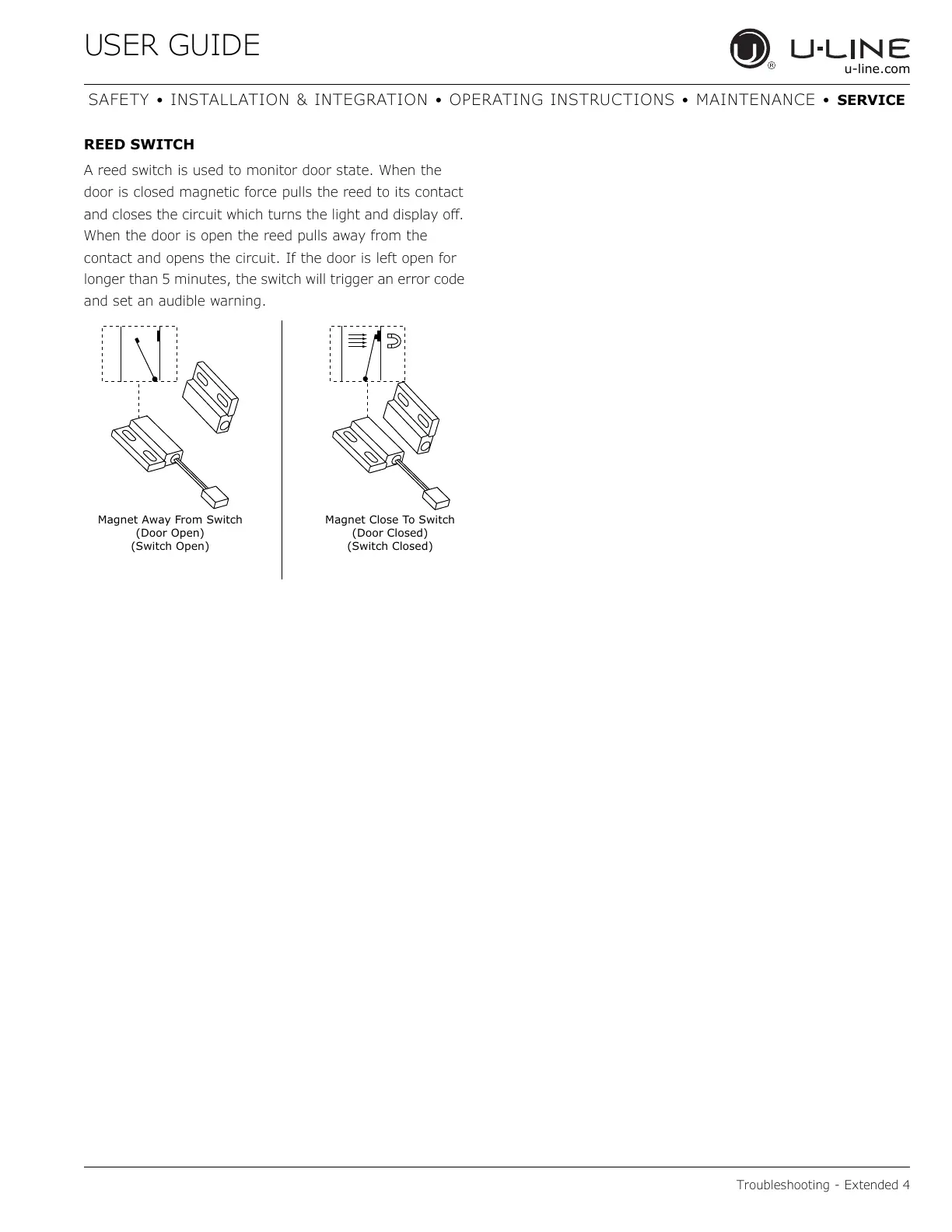

REED SWITCH
A reed switch is used to monitor door state. When the
door is closed magnetic force pulls the reed to its contact
and closes the circuit which turns the light and display off.
When the door is open the reed pulls away from the
contact and opens the circuit. If the door is left open for
longer than 5 minutes, the switch will trigger an error code
and set an audible warning.
Magnet Close To Switch
(Door Closed)
(Switch Closed)
Magnet Away From Switch
(Door Open)
(Switch Open)
57

U-Line U2224DWRINT00A Specifications

General

Color	custom, custom panel ready
Total Capacity	4.9 cubic feet
Refrigerator Capacity	4.9 cubic feet
Defrost System	none
Smart Home	yes
Wi-Fi	wi-fi
Annual Energy Consumption	300 kilowatt hours
Voltage	115 volts
Current	1.2 amperes

Weight and Dimensions

Depth	23 7/16 inches
Height	33 11/16 inches
Width	23 5/8 inches
Net Weight	135 pounds
