USER GUIDE

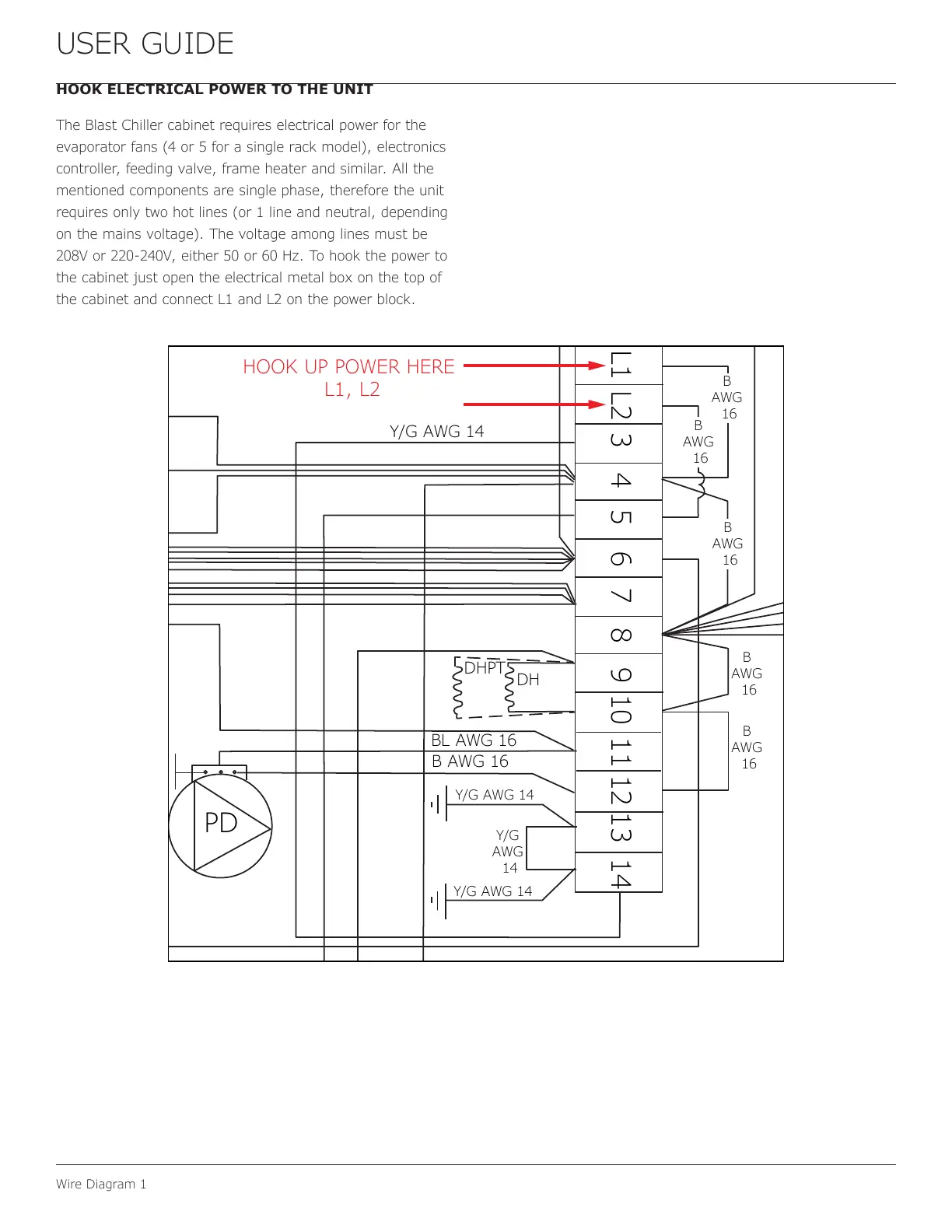

Wire Diagram 1
HOOK ELECTRICAL POWER TO THE UNIT
The Blast Chiller cabinet requires electrical power for the
evaporator fans (4 or 5 for a single rack model), electronics
controller, feeding valve, frame heater and similar. All the
mentioned components are single phase, therefore the unit
requires only two hot lines (or 1 line and neutral, depending
on the mains voltage). The voltage among lines must be
208V or 220-240V, either 50 or 60 Hz. To hook the power to
the cabinet just open the electrical metal box on the top of
the cabinet and connect L1 and L2 on the power block.
HOOK UP POWER HERE
L1, L2
BL
AWG
16
Y/G AWG 14
B
AWG
16
B
AWG
16
B
AWG
16
B
AWG
16
B
AWG
16
DHPT
DH
BL AWG 16
B AWG 16
Y/G AWG 14
Y/G
AWG
14
Y/G AWG 14
PD
L1 L2 3 4 5 6 7 8 9 10 11 12 13 14
42
