Drain
The maximum lift for the P60 drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
If your drain line will run up to a stand pipe, disposal
or spigot assembly, or does not otherwise meet the
requirements for a gravity drain, you may have ordered a
pre-installed U-Line P60 drain pump.
If you need to install a P60 drain pump into your unit, see
DRAIN PUMP section in the User Manual.

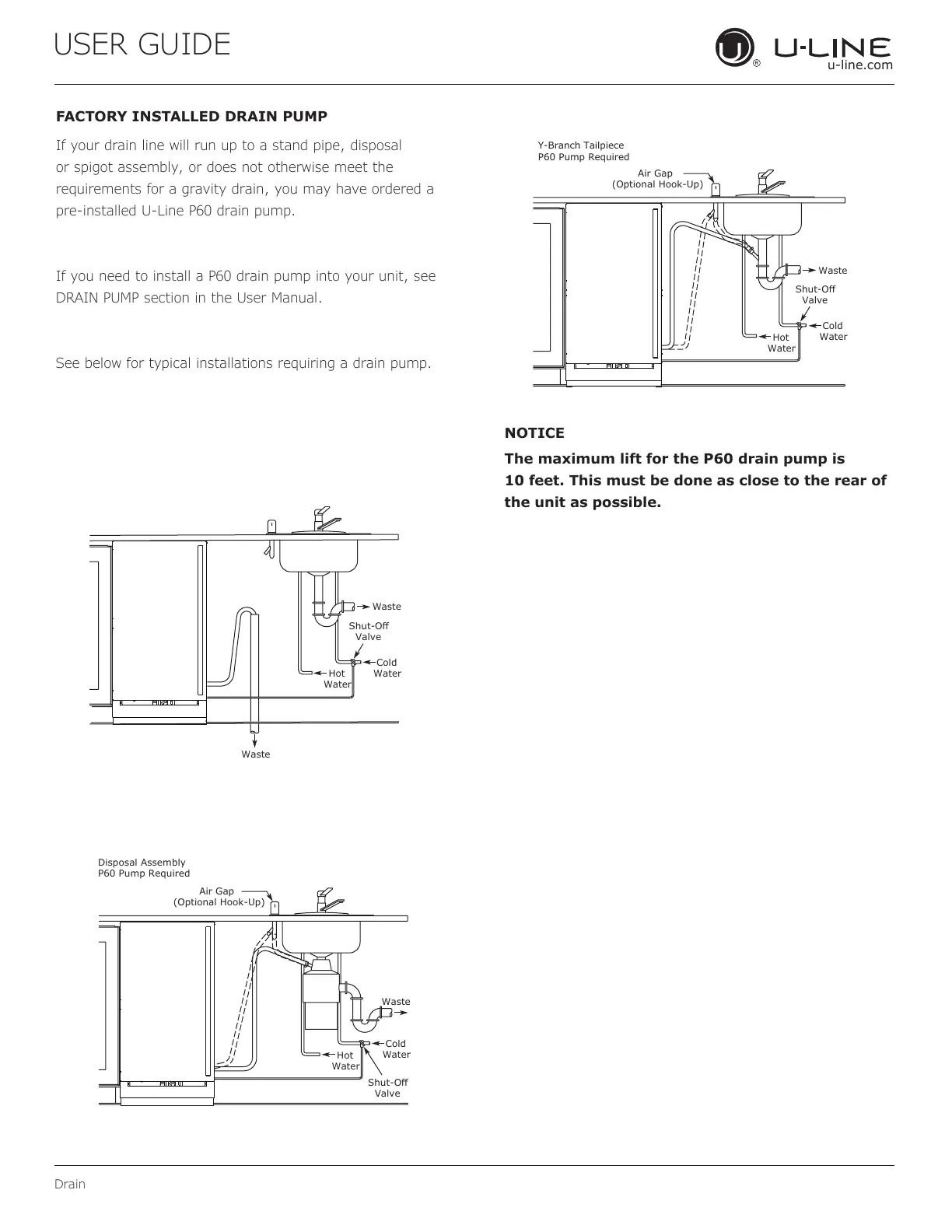

See below for typical installations requiring a drain pump.
FACTORY INSTALLED DRAIN PUMP
NOTICE
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
Disposal Assembly
P60 Pump Required
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
P60 Pump Required
