USER GUIDE
u-line.com
Parts
Pa rts
1
2
8
8
9
18
26
20
17
15
23
16
10
21
3
4
5 6
11
12
13
19
27
25

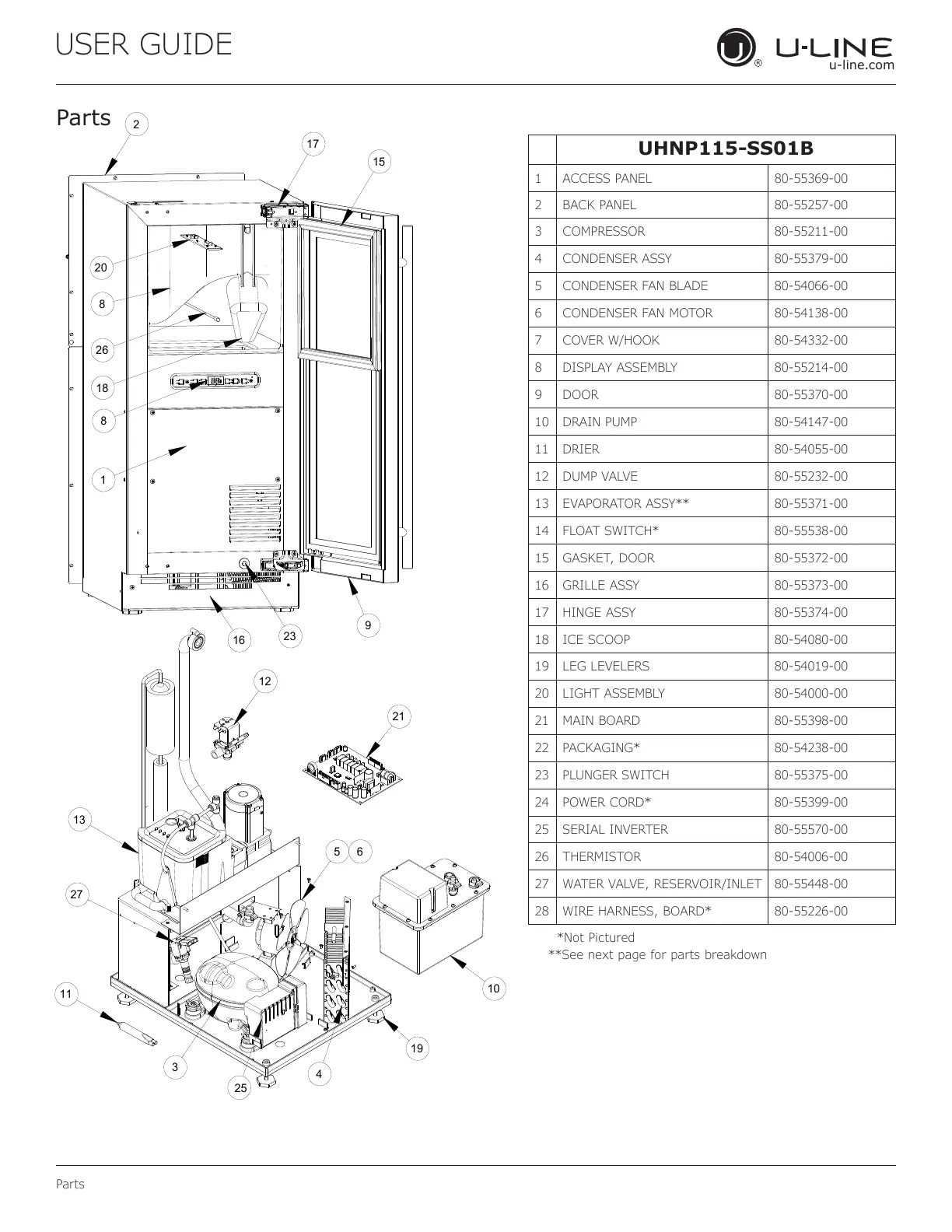

UHNP115-SS01B
1 ACCESS PANEL 80-55369-00
2 BACK PANEL 80-55257-00
3 COMPRESSOR 80-55211-00
4 CONDENSER ASSY 80-55379-00
5 CONDENSER FAN BLADE 80-54066-00
6 CONDENSER FAN MOTOR 80-54138-00
7 COVER W/HOOK 80-54332-00
8 DISPLAY ASSEMBLY 80-55214-00
9 DOOR 80-55370-00
10 DRAIN PUMP 80-54147-00
11 DRIER 80-54055-00
12 DUMP VALVE 80-55232-00
13 EVAPORATOR ASSY** 80-55371-00
14 FLOAT SWITCH* 80-55538-00
15 GASKET, DOOR 80-55372-00
16 GRILLE ASSY 80-55373-00
17 HINGE ASSY 80-55374-00
18 ICE SCOOP 80-54080-00
19 LEG LEVELERS 80-54019-00
20 LIGHT ASSEMBLY 80-54000-00
21 MAIN BOARD 80-55398-00
22 PACKAGING* 80-54238-00
23 PLUNGER SWITCH 80-55375-00
24 POWER CORD* 80-55399-00
25 SERIAL INVERTER 80-55570-00
26 THERMISTOR 80-54006-00
27 WATER VALVE, RESERVOIR/INLET 80-55448-00
28 WIRE HARNESS, BOARD* 80-55226-00
*Not Pictured
**See next page for parts breakdown
32
To Next Page
