u-line.com 11
13. Remove all three screws on the opposite side of the hinge and
carefully lift off the door latch assembly (
Figure 28
).
14. Place the door latch assembly on opposite side of unit (
Figure
29
). Be sure to tighten all three screws securely.

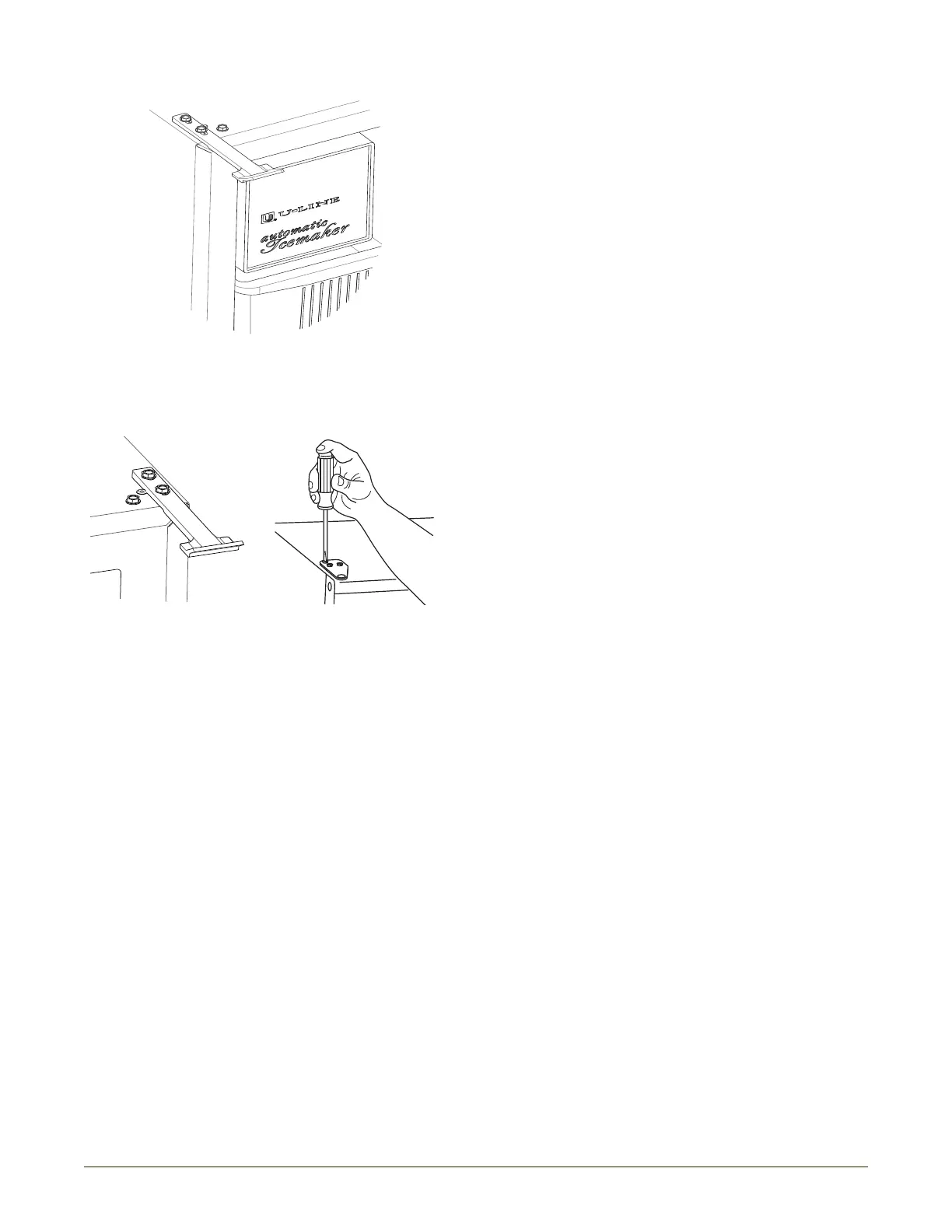

15. Place door on lower hinge pin. Invert and install upper hinge on
door. Fasten upper hinge to unit (three screws (
Figure 30
).
Partially tighten screws.
16. Adjust door to assure proper seal. Tighten upper and lower
hinge screws securely.
17. Replace screws in holes in bottom of unit on opposite side.
18. Replace the grille.
