90
3. Open the door and release the tarpaulin.
4. Remove the tarpaulin from the bolts of the windshield
frame and from the hooks of the tarpaulin framework front bow.
Remove the tarpaulin from the framework and stow it in a clean
place.
5. Secure the tarpaulin metal hold-down strips in place by
screwing in all the bolts on the windshield frame.
6. Unfasten and remove the fixing straps of the tarpaulin
framework.
7. Remove the spring struts of the tarpaulin framework.
8. Remove the longitudinal struts of the tarpaulin framework.
9. Unscrew the bolts and remove the inclined props of the
tarpaulin framework.
10. Unscrew and remove the tarpaulin bows.
11. Fold up the tarpaulin placing the inclined struts, spring
braces and straps inside. Couple the tarpaulin bag by means of
the belts.
Body Heating and Ventilation
The body is heated with air admitted from the outside
through the cowl ventilator located in the middle part of the
body front. The air passes through heater radiator 5 (Fig. 85)
connected into the engine cooling system.

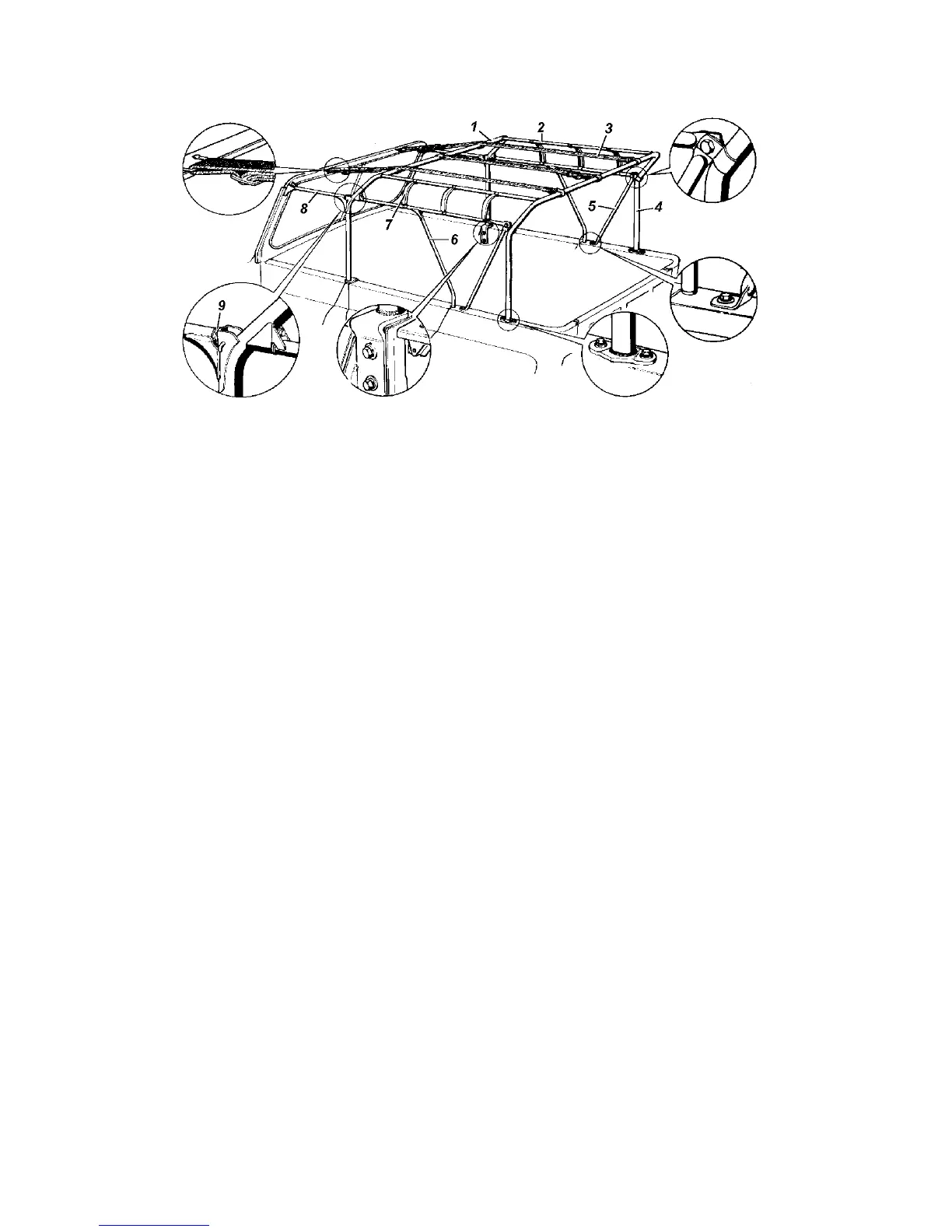

Fig. 84. Body Tarpaulin Frame:
1 -front bow; 2 -bow rear tie; 3 -fixing strap; 4 -rear bow; 5 -brace; 6 -inclined
strut; 7 -spring strut; 8 -bow front tie; 9 -rubber bushing
