ubbink RobotClean Accu - Operating Procedures; General Operating Instructions; Design of the RobotClean Accu; Setting the Cleaning Pattern

1 Robotclean Accu Operating Instructions and Parts List
- The pool cleaner is only suitable for pools up to a size of app. 50 m2. Otherwise the cleaning eect may be compromised due to the limited capacity of the battery.
- The battery of the pool cleaner should be charged and discharged every three months when the appliance is stored for a longer period. Due to the battery discharging itself, the
battery charge can fall below the level of the over-discharge protective voltage, which damages the battery.
- The pool cleaner may only be powered with the original charging adapter supplied.
- Only charge the pool cleaner battery under the permitted conditions. When the battery is charged, the pool cleaner should be placed on a cool and dry surface to avoid damage to the
internal electric components due to overheating.
- Operating the pool cleaner outside water can lead to serious damage and to the expiry of the warranty.
- Do not leave the cleaner in the pool permanently and never expose the pool cleaner and charging adapter to high temperatures (heating, etc.) or weather conditions (rain, etc.).
- When the charging adapter or other pool cleaner parts are damaged they must be replaced to avoid endangerment.
- This appliance may be operated by children from the age of 8 years upwards and persons with reduced physical, sensory or mental capabilities, lack of experience and knowledge
when they are supervised or have been instructed in the safe handling of the appliance and understand the risks involved. Children must not play with the appliance. Children may
undertake cleaning and those service processes a user can carry out only when supervised.
- Keep small parts and packaging materials away from children. Danger of suocation!
GENERAL OPERATING INSTRUCTIONS
The product is exclusively for private use and is not suitable for the commercial sector. The RobotClean Accu can be used for almost all commercially available pools with horizontal,
level oor. Use the appliance only as described in these operating instructions. Any other form of usage is considered as incorrect and can result in damage to property and people.
Ubbink Garden BV does not accept liability for damage resulting from improper or incorrect usage.
 DO NOT ENTER THE SWIMMING POOL, WHEN THE CLEANER IS IN USE
 SCHALTEN SIE DEN REINIGER NICHT EIN, WENN ER NICHT IM WASSER IST
CAUTION: Before using the cleaner remove all items from the pool, which could aect the performance of the cleaner.
CAUTION: After every use, take the cleaner out of the pool. Leaving the cleaner in the pool all the time may lead to additional need for servicing.

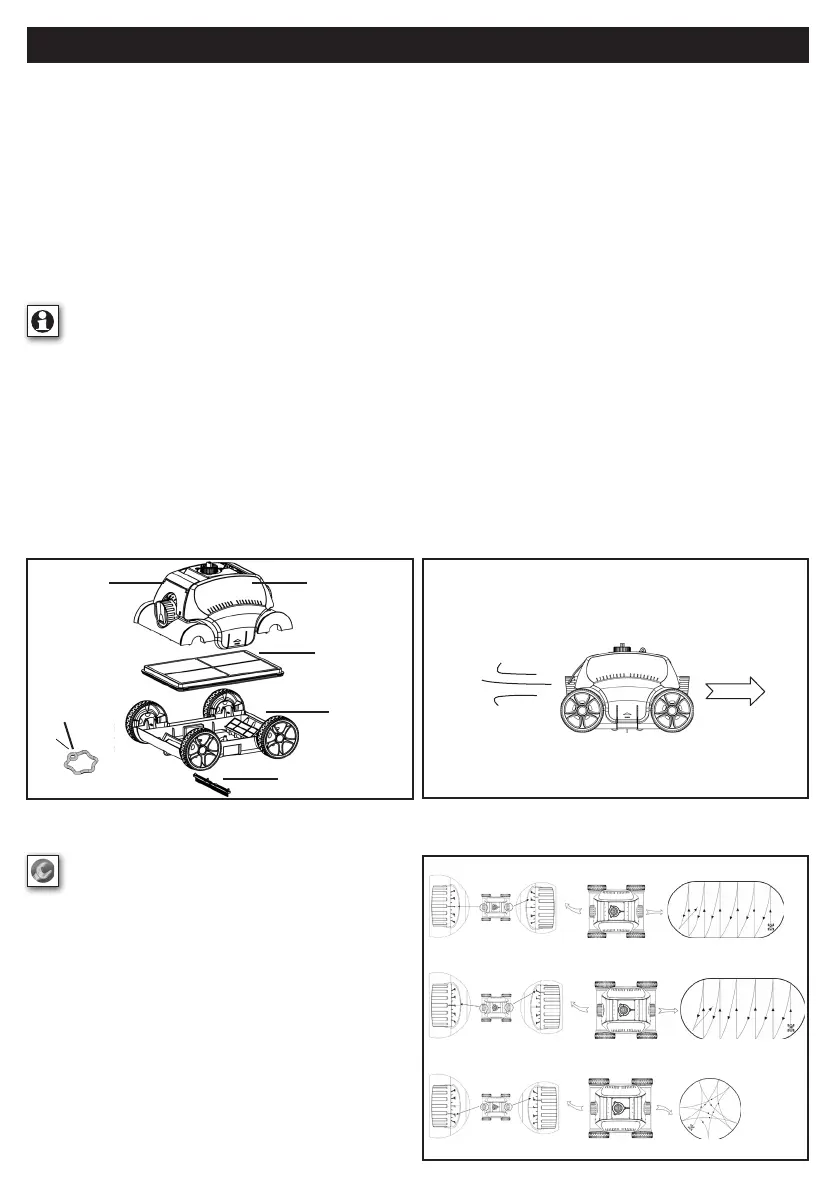

Design of the RobotClean Accu Jet Drive
There is an adjustable control nozzle on either side of the cleaner for propulsion in water. Sucked-in dirty water is ltered rst and is then used to drive the pool cleaner via the control
nozzles. Both nozzles are adjustable to achieve the best cleaning result, depending on the shape and size of the pool.
SETTING THE CLEANING PATTERN
The cleaner has two control nozzles with an adjustable direction angle of 0 - 40°.
The pool cleaner moves at a nearly straight line when set at a nozzle angle of 0° - 0°
The pool cleaner moves at a more curved line when set at an angle of 0° - 40°.
The three settings below are recommendations.
The actual shape and size of the pool may require slightly dierent settings
of the control nozzles.
Einstellung 1: 0°/20° Standardeinstellung für die meisten Pools.
Einstellung 2: 0°/40° wenn der Poolreiniger das Becken nicht vollständig abdeckt.
Einstellung 3: 20°/20° für runde Becken.
Öffnen und Schließen des Gehäuses
Öffnen
Schließen
Montage der Bürste
1
Drücken Sie die Bürste in die an der
Außenseite des Gehäuseunterteiles
vorgesehenen Einkerbung
2
Stellen Sie sicher, dass die Bürste fest sitzt.
Demontage der Bürste
1
Drücken Sie die Bürste von der Innenseite
des Gehäuseunterteiles aus der Einkerbung
Swing Flap
Driving Handle
Housing - Upper Part
Filter Element
Housing - Lower Part
Brush
BETRETEN SIE NICHT DEN SWIMMINGPOOL, WENN DER REINIGER IN BETRIEB IST
SCHALTEN SIE DEN REINIGER NICHT EIN, WENN ER NICHT IM WASSER IST
Aufbau des RobotClean Accu
Jetantrieb
Auf beiden Seiten des Reinigers befindet sich eine verstellbare Steuerdüse für den Antrieb im Wasser. Das
angesaugte schmutzige Wasser wird zuerst gefiltert und danach über die Steuerdüsen zum Antrieb für den
Poolreiniger verwendet. Beide Düsen sind einstellbar, um bezogen auf die Form und Größe des Pools die beste
Reinigungswirkung zu erreichen.
EINSTELLEN DES REINIGUNGSMUSTERS
Der Reiniger verfügt über zwei Steuerdüsen mit einstellbarem Richtungswinkel von 0 - 40°.
Bei einem Düsenwinkel von 0° - 0° bewegt sich der Poolreiniger in einer annähernd geraden Linie.
Bei einem Winkel von 0° - 40° bewegt sich der Poolreiniger in einer stärker gekrümmten Linie.
Die drei nachstehenden Einstellungen sind Empfehlungen. Die tatsächliche Form und Größe des Pools können
eine leicht geänderte Einstellung der Steuerdüsen erfordern.
Gehäuseoberteil
Filtereinsatz
Gehäuseunterteil
Schwingklappe
Treibender Griff
Bürste
Setting 1: 0°/20° Standard setting for most pools.
Setting 2: 0°/40° when the pool cleaner does not fully cover the pool.
Setting 3: 20°/20° for round pools.
