Page 12
Step 6
X
X
A
C
F
C1
A1
D
D1
B
B
×2
×2
C1
D1
E1
V
V
×2
X
X
D
C
E
V
V
F1

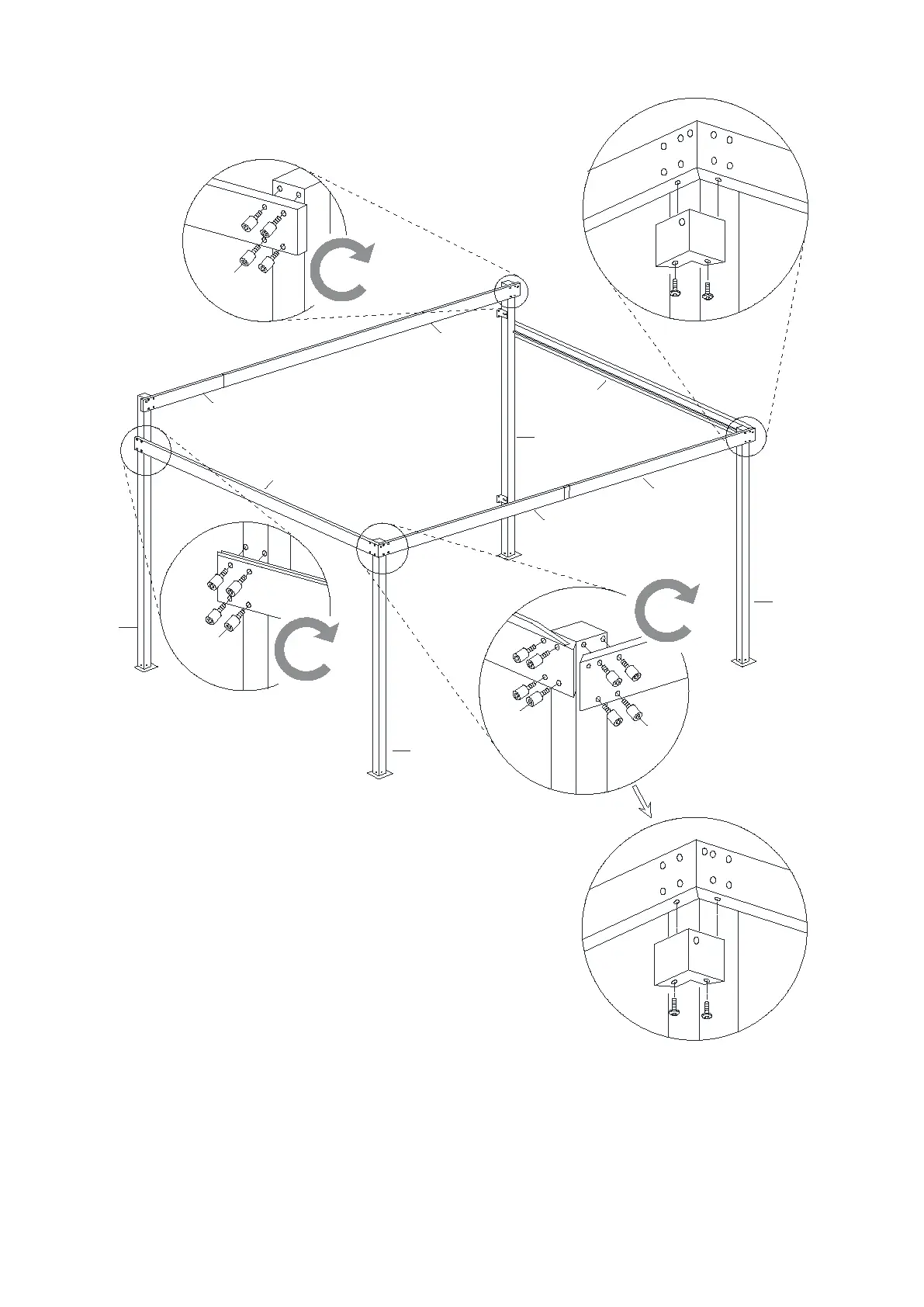

6.1. Attach the assembled Rails (D & D1) to both Posts (B) with Screws (X).
6.2. Attach the assembled Lintels (F & F1) to Posts (A & A1) with Screws (X).
6.3. Attach the side Rail (C) to Posts (A & B) with Screws (X). Attach the Rail (C1) to Posts (A1 & B)
with Screws (X).
Make sure the Rails are placed with the sides with Hooks towards the inside of the Shelter.
6.4. Attach the Corner cover（E) and Rails (D) to the side Rail (C) with screw (V); attach the Corner
cover（E1) and Rails (D1) to the side Rail (C1) with screw (V).
