Uberhaus 72255106 - Page 13

Page 13
Step 7
C
G
G1
C1
O
O
×2
O
V
V

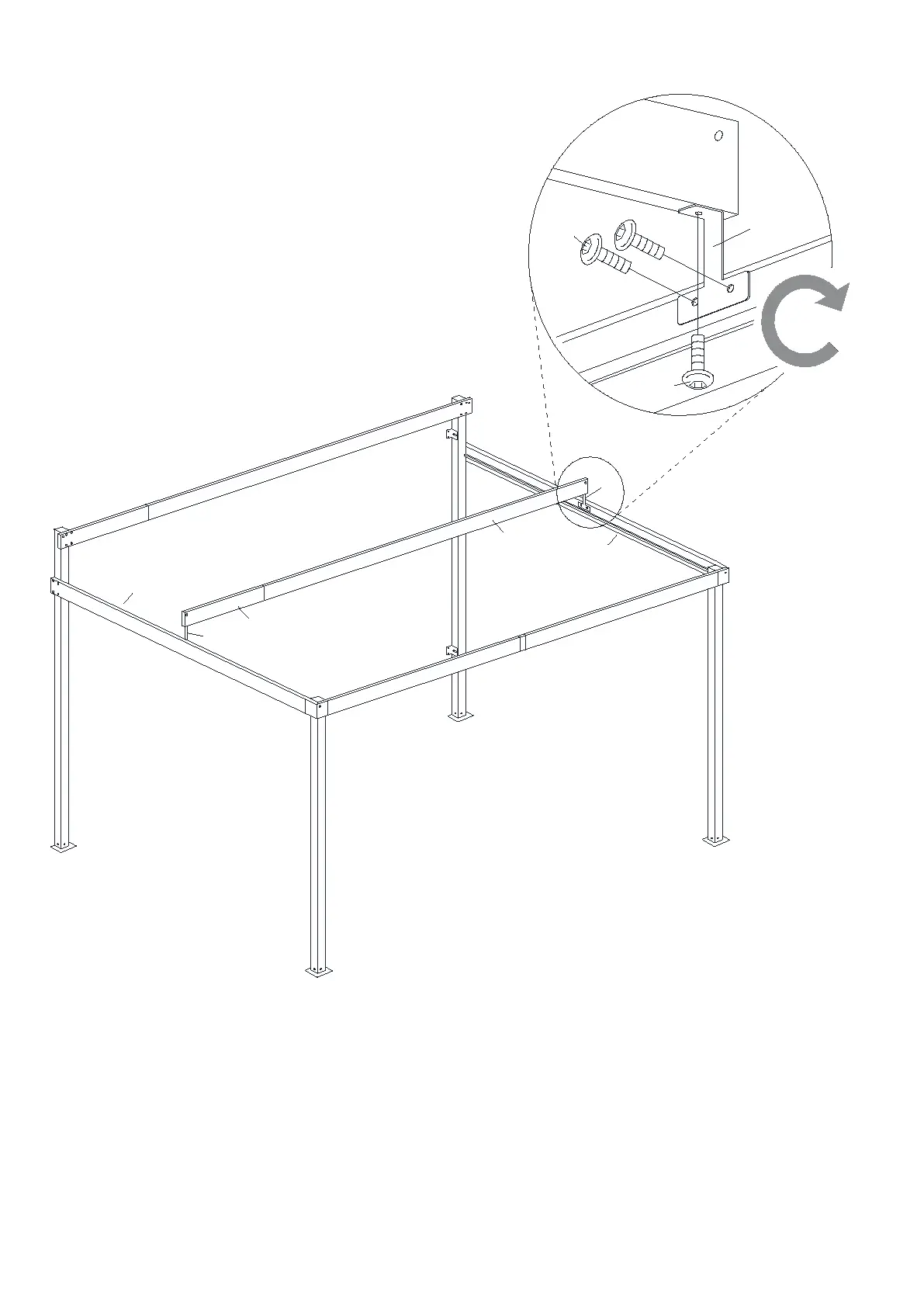

7.1. Attach Connector (O) to Rail (C) with Screws (V).
7.2. Attach Connector (O) to Rail (C1) with Screws (V).
7.3. Place the assembled Lintels (G &G1) onto the Connectors (O) with Screws (V).
Ensure that the Screws are well tightened.
