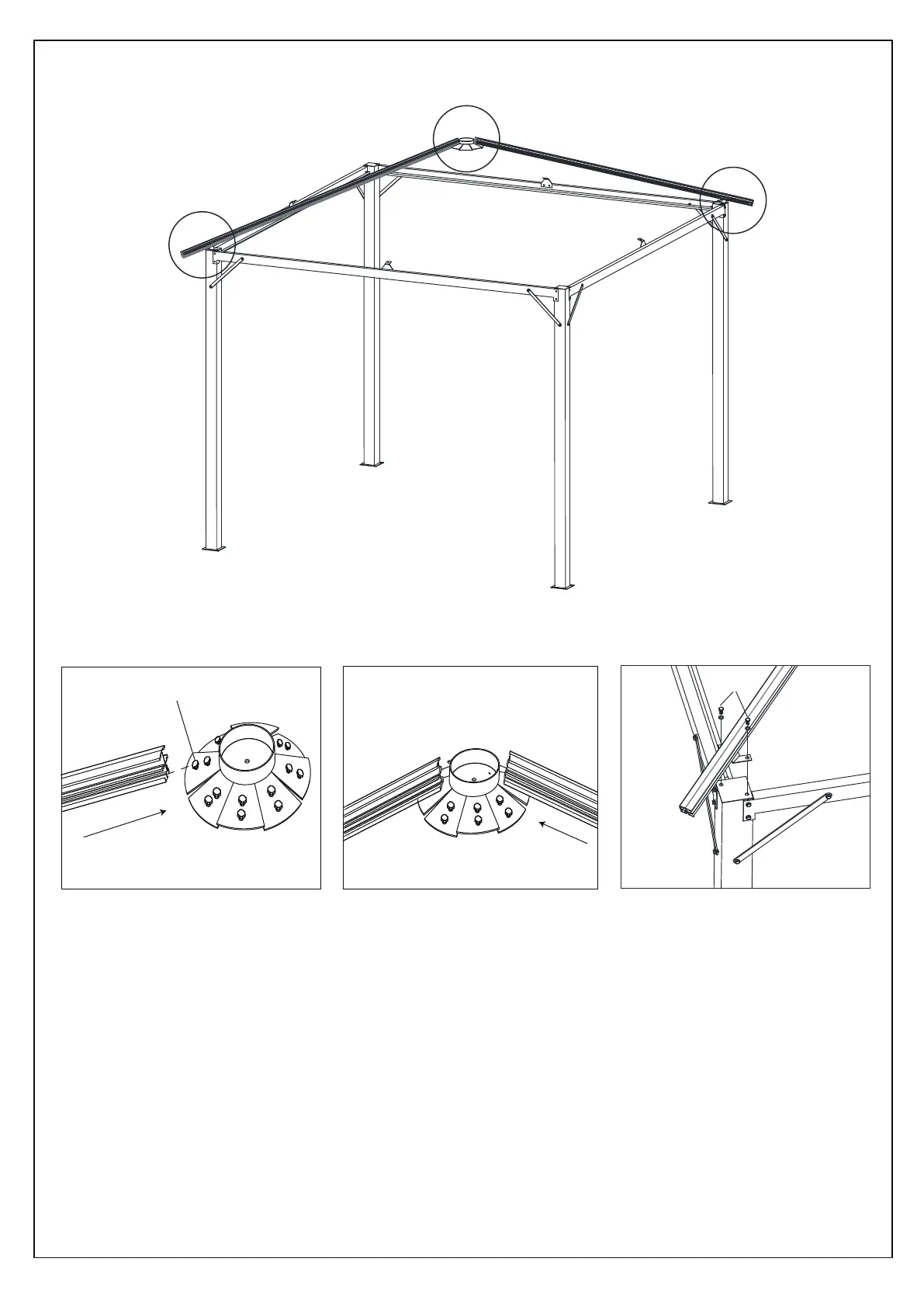

9. Insert Long Bar (3) which has the connected small piece into Bolt (34) of Lower Central
Connector (2), tighten Bolt (34). See Fig.9
10. Insert the other Long Bar (3) on an angle into Bolt (34) of Lower Central Connector (2),
tighten Bolt (34). See Fig.10
11. Attach Top Connector (11a) located below Long Bar (3) to Post (12a) with Bolt (33). See Fig.11
