Uberhaus 72255162 - Step 3: Roof Support Assembly

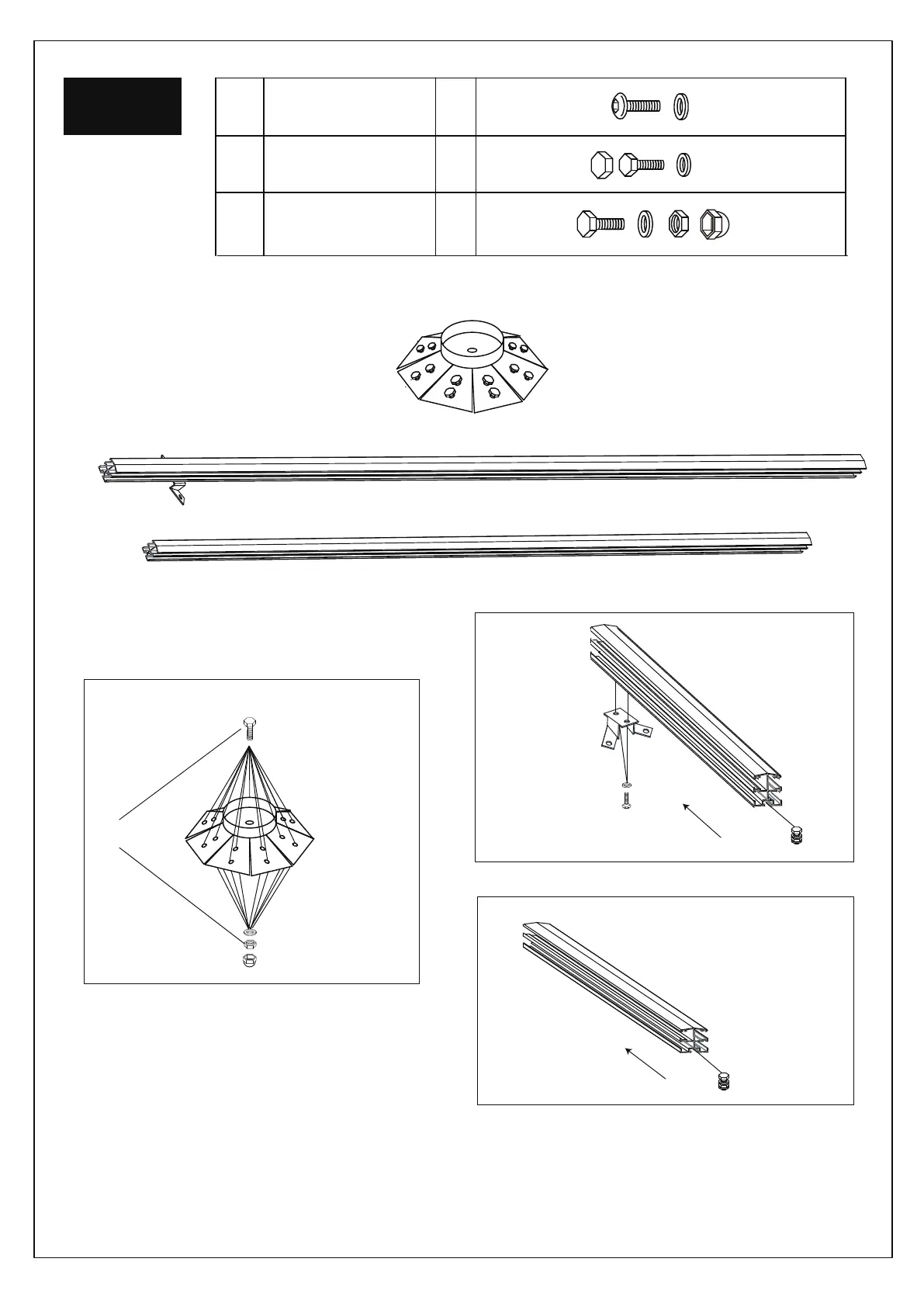

6. Screw Bolt (34) to Lower Central Connector (2).Note: do not over-tighten. See Fig.6
7. Attach Top Connector (11a) to Long Bar (3) with Bolts (32); insert two Bolts (34) into the slot
of Long Bar (3) from the other end. Repeat on each side. See Fig.7
8. Insert two Bolts (34) into the slot of Short Bar (4) from the end of insert nut; the insert nut will
connect with the other small piece. Repeat on each side. See Fig.8
Page 9
Fig.6
Fig.7
Fig.8
X16
X16
X2
X2
(33)
(34)
Step 3:
(32)
(2)
(2)
(3)
(34)
(34)
(34)
(32)
(3)
(4)
(4)
(11a)
Bolt\Steel Washer
M6*15
Bolt\Flat Washer
M6*15
Bolt\Flat Washer\ Nut\
Plastic Nut Cap
M6*15
8
12
32
