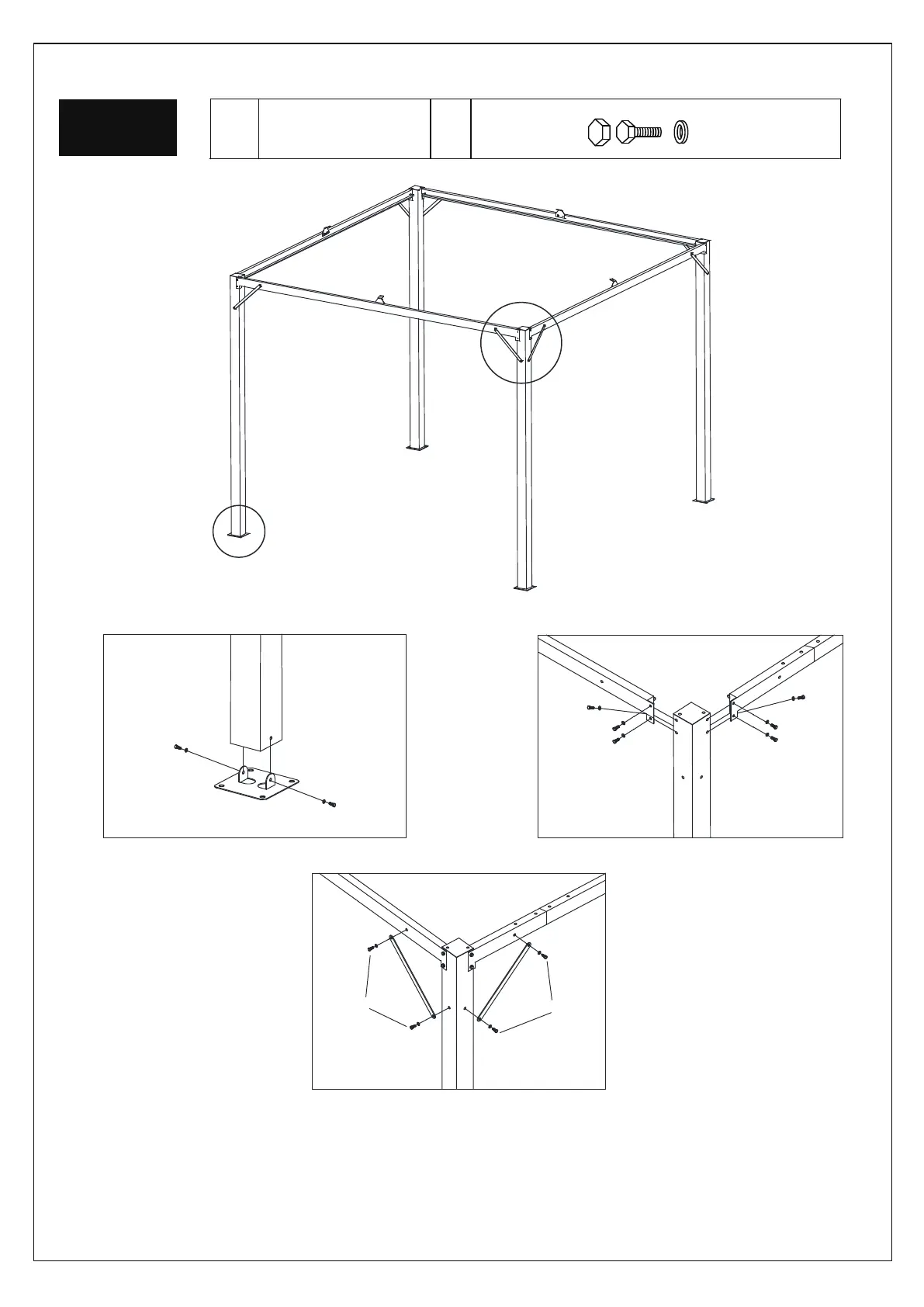

Uberhaus 72255162 - Step 2: Frame Assembly

3. Connect Base Plate (13) and Post (12a) by bolt (33). See Fig.3
4. Attach Lintel (5a)/(6) to Post (12a) with Bolt (33). Repeat on each corner. See Fig.4
5. Attach Bracket Piece (8) to Short Lintel (6) and Post (12a) with Bolt (33). Repeat on each
corner. See Fig.5
Fig. 4
Fig. 4/Fig. 5
Fig. 5
Fig. 3
Fig. 3
(33)
(12a)
(12a)
(12a)
(33)
(33)
(33)
(33)
(12a)
(12a)
(5a)
(6)
(6)
(6)
(5a)
(5a)
(5a)
(6)
(5a)
(6)
(5a)
(8)
(8)
(12a)
(12a)
(13)
(33)
(33)
Step 2:
Bolt\Flat Washer
M6*15
48
Page 8
