Uberhaus 72255162 - Step 1: Initial Assembly

16
12
Bolt\Flat Washer\Nut\
Plastic Nut Cap
M6*70
Bolt\Plastic Washer
M6*40
Fig. 1
Fig. 1
Fig. 2
Fig. 2

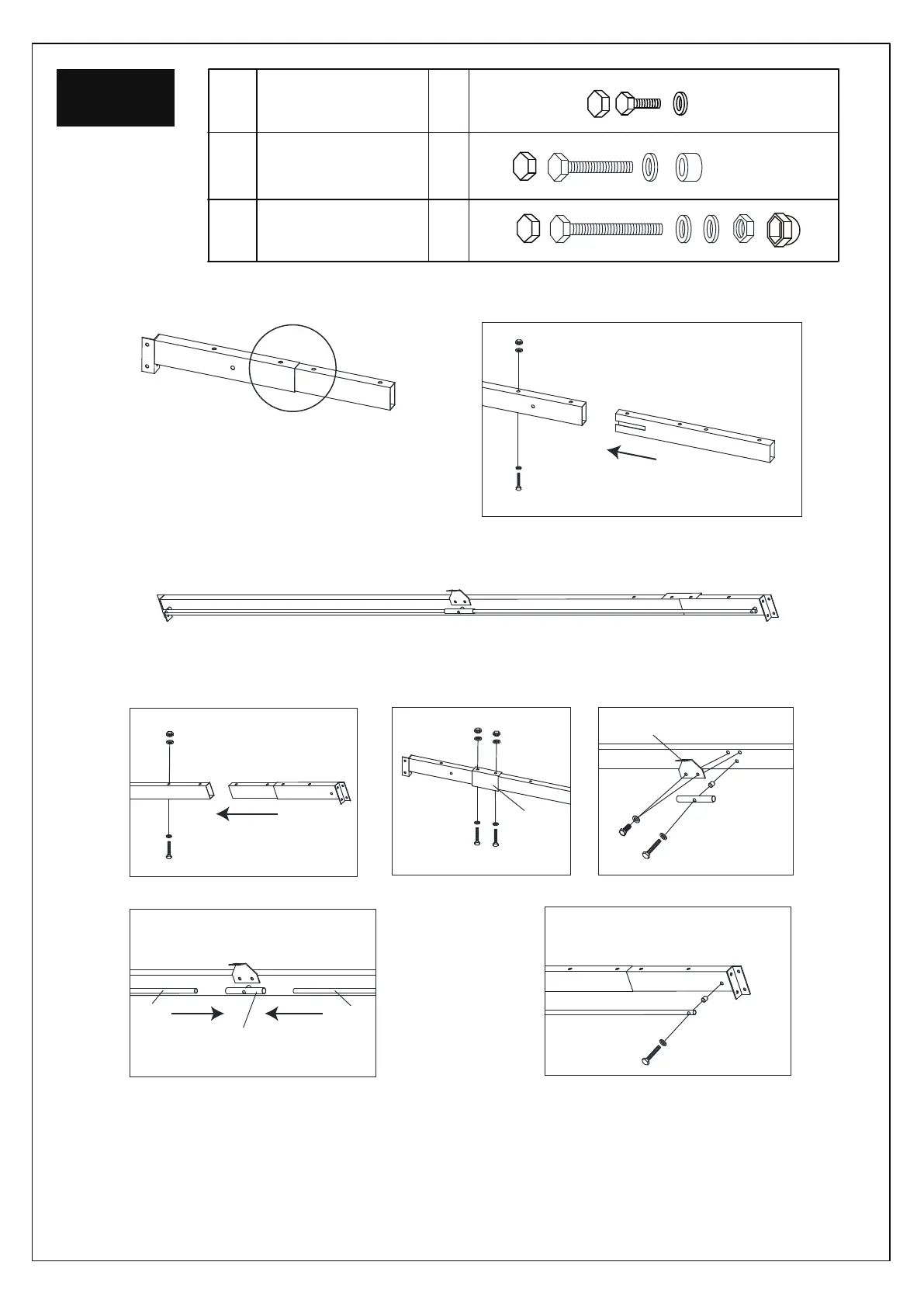

1. Insert Connector (7) into Short Lintel (6) and connect them by bolt (38). See Fig.1
2. Insert Connector (7) into Long Lintel (5a) and connect them by bolt (38), at the
same time,
attach the Lintel Cover (6a) to Lintel (5a/6) with bolts (38).
Connect Connection Piece (9) with Long Lintel (5a) by bolt (33); connect Connection tube of
Mosquito net (10) with Long Lintel (5a) by bolt (37).
Insert Mosquito Net tube (26a) into Connection tube of Mosquito net (10).
Connect Mosquito Net tube (26a) with Lintel (5a)/(6) by bolt (37).See Fig.2
