Uberhaus Gazebo User Manual

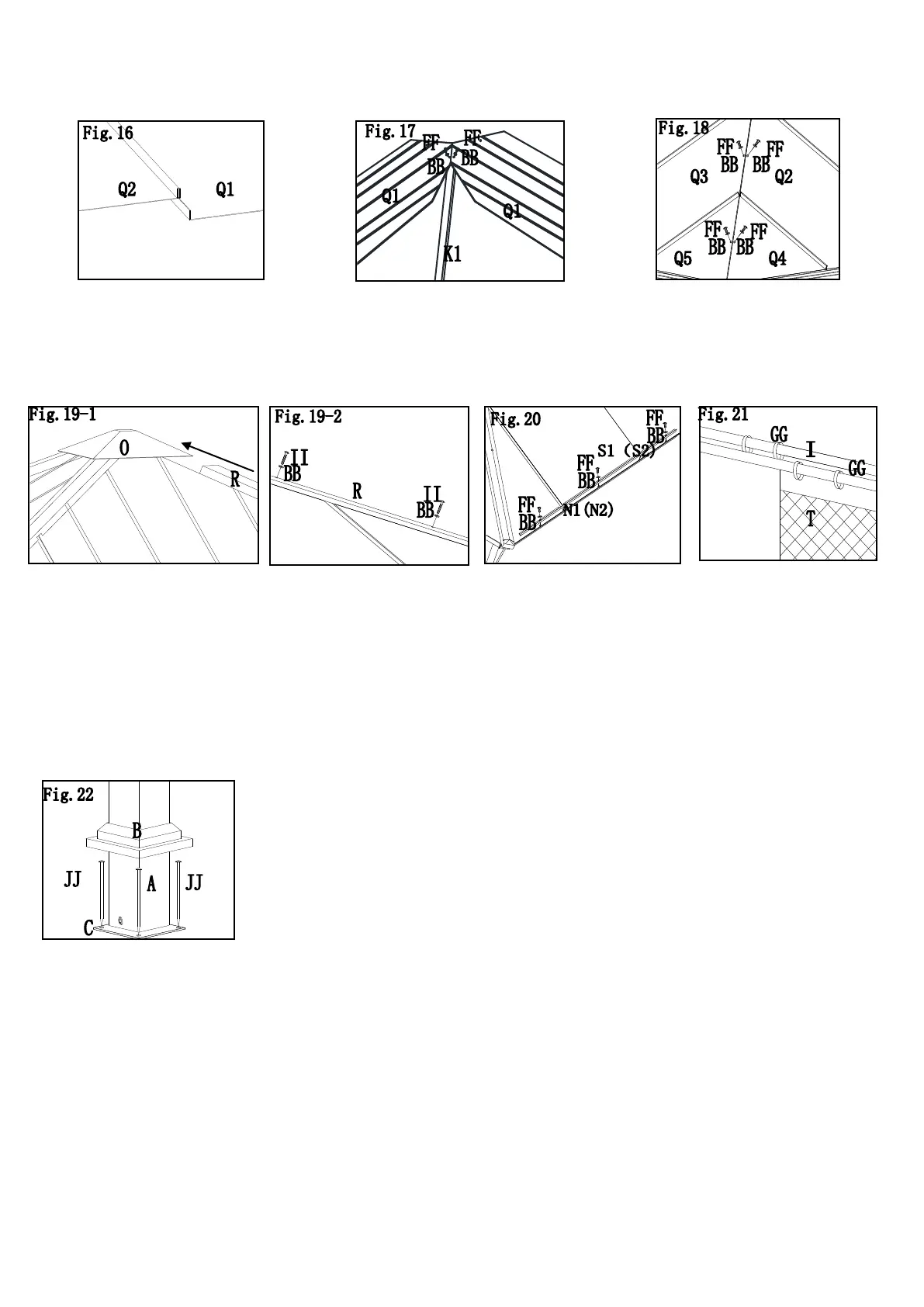

Fig. 19-1 Fig. 19-2: Insert the upper side of cover bar 1 (R) into the lower side of the big top cover (O) and tighten with bolts
(II) and washers (BB). Attach the lower side of cover bar 1 (R) to the slanted beam (K1). Making sure it is tightened.
Fig. 20: Attach cover bar 2 / cover bar 3 (S1/S2) to top long beam 1 / top long beam 2 (N1 / N2) with screws (FF) and
washers (BB).
Fig. 21: Use rings (GG) to attach the mosquito net (T) to the net tube (I).
Fig. 16: Place roof panel 2 (Q2) onto roof panel 1 (Q1).
Fig. 17: Attach roof panel 1 (Q1) to the slanted beam (K1) with screws (FF) and washers (BB).
Fig. 18: Attach roof panels 2/3/4/5 (Q2/Q3/Q4/Q5) to the slanted beam (K1) with screws (FF) and washers
(BB).。
Fig. 22: Raise the base covers (B), and anchor the gazebo on the ground with stakes
(JJ).
Your gazebo is completely assembled.
