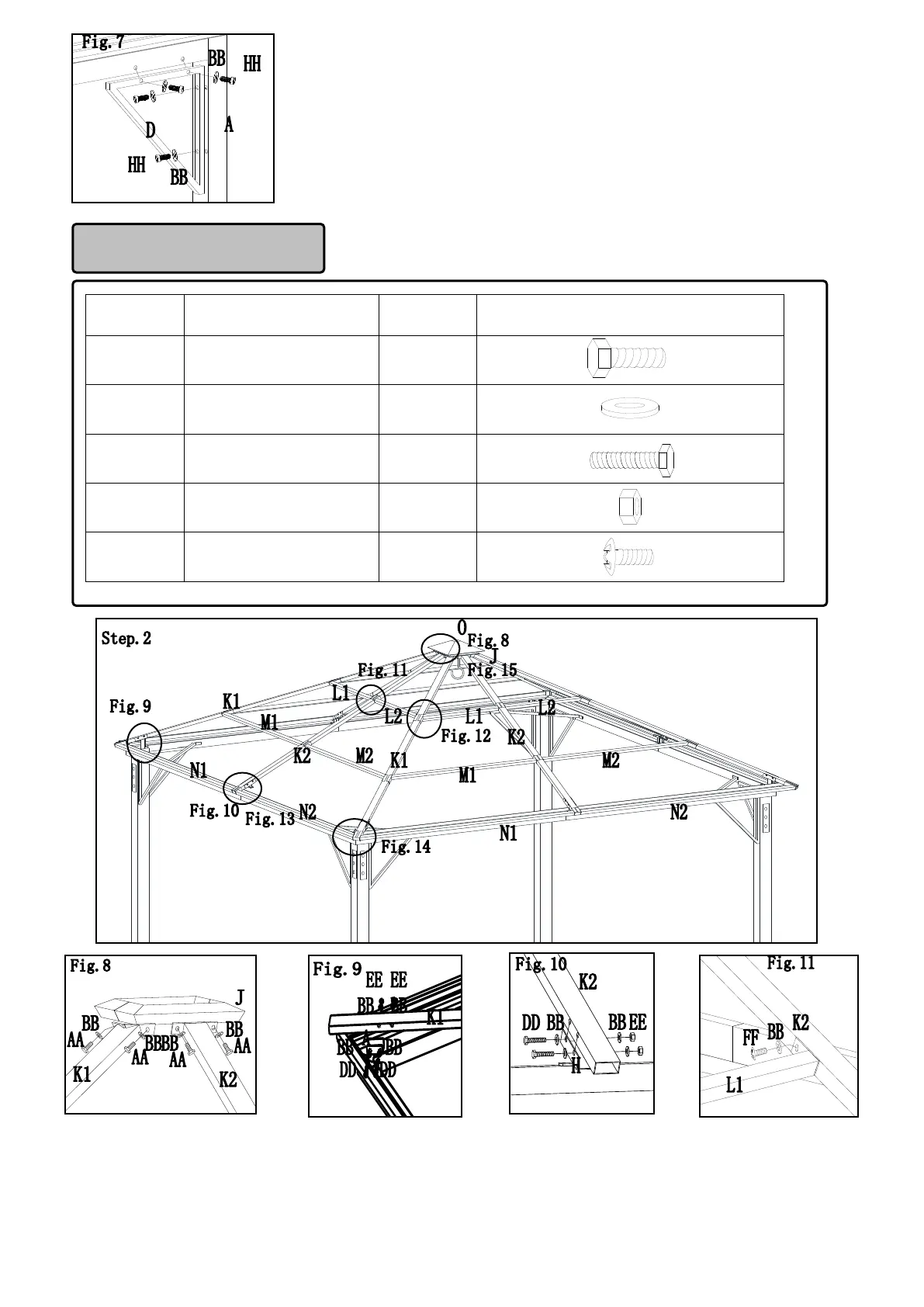

Fig. 8: Attach the slanted beam (K1) and middle beam (K2) to the top connector (J) with bolts (AA) and washers (BB).

Fig. 9: Attach the lower side of the slanted beam (K1) to the post (A) with bolts (DD), washers (BB), and nuts (EE).

Fig. 10: Attach the lower side of middle beam (K2) to top bar connector (H) with screws (DD), washers (BB) and nuts (EE).

Fig. 11: Attach the lower side of top short beam 1 / top short beam 2 (L1/L2) to the middle beam (K2) with screws (FF) and

washers (BB).

Hardware Pack 2

Part

Description

Quantity


M6X20 bolt

M6 washer

M6X55 bolt

M6 nut

M6X15 screw

Fig. 7: Attach the triangle support (D) to each post (A)

and roof bar with bolts (HH) and washers (BB).
