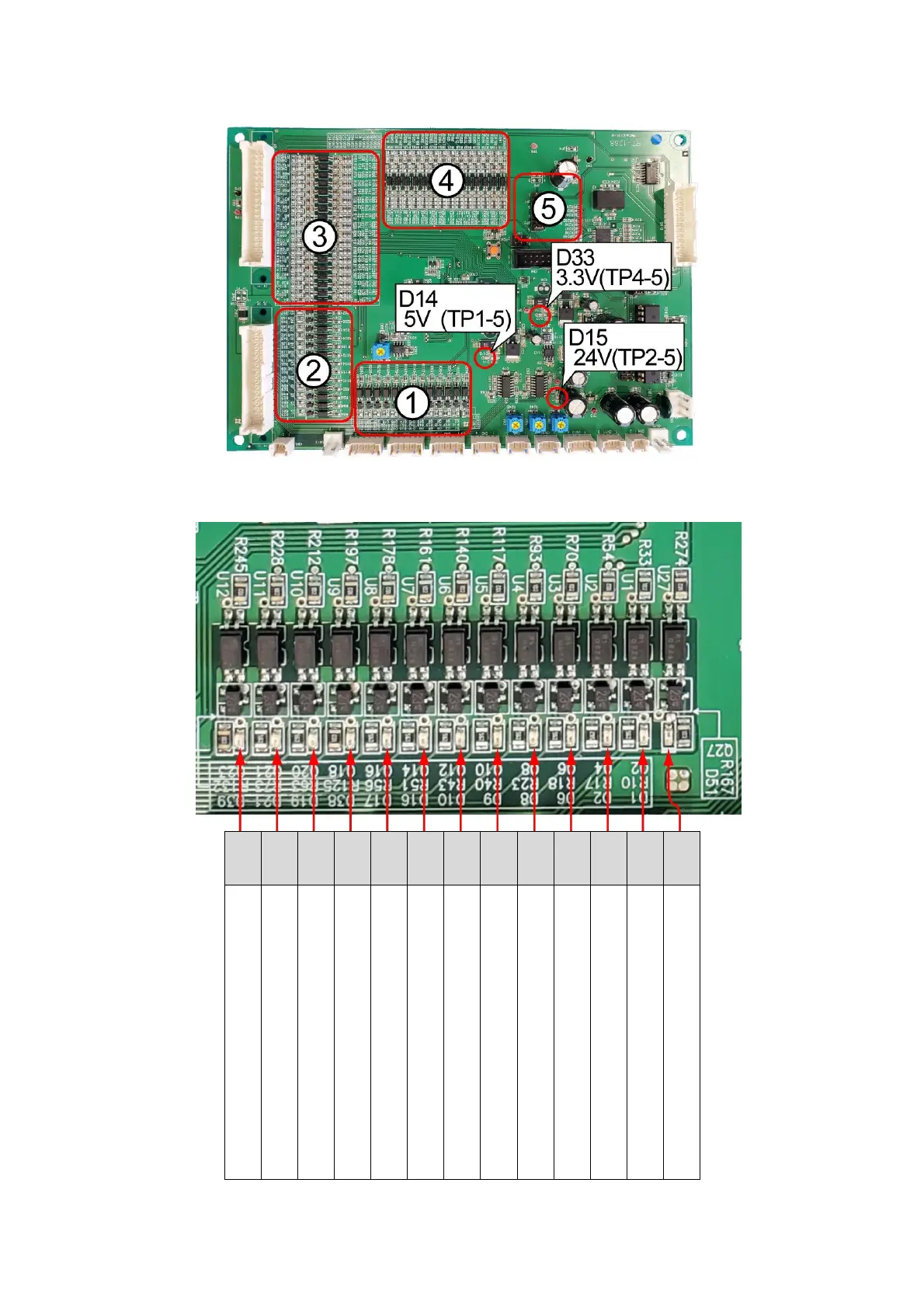

8.3 Input / Output LED Details
① LED on Lower Side
D39
D21
D19
D38
D17
D16
D10
D9
D8
D6
D2
D1
D51
OUTPUT-
Side Blow fan motor
OUTPUT- Slitter 1 move inside
OUTPUT- Slitter 1 move outside
OUTPUT- Waste conveyer motor
OUTPUT- Slitter 2 move inside
OUTPUT- Slitter 2 move outside
OUTPUT- Slitter 3 move inside
OUTPUT- Slitter 3 move outside
OUTPUT- Slitter 4 move inside
OUTPUT- Slitter 4 move outside
OUTPUT- Cutter motor move reverse
OUTPUT- Cutter motor move forward
OUTPUT- External equipment
