Ugolini ARCTIC COMPACT

17
4 22800-21900 Faucet piston 32 33900-01052 Pulley, magnet and spacer assembly
5 10028-02500 Faucet gasket 33 22800-05100 Switch cap
7 22900-02010 8 It bowl 34 22900-03602 Belt
8 21703-00000 Pinch tube 35 22800-02201 Driving pulley
9 22900-01910 5 It bowl 36 22800-04800 Motor bracket
11 10029-00000 Picture 37 22800-18921 Fan/pump motor for 1 bowl
12 22900-00500 Push handle 37A 22900-03011 Fan/pump motor for 2, 4 bowls
13 22900-00800 Faucet cover 38 RRR Fan
14 22900-00501 Push handle 39 >>> Relay
15 22800-02600 Faucet spring 40 >>> Overload protector
16 22900-01300 8 It bowl cover 41 22800-12700 Terminal block cover
17 22900-01300 5 It bowl cover 42 22800-05500 Terminal block with cable clamp
21 22800-17200 Bowl gasket 43 22800-10000 Rubber leg
22 33900-01201 Impeller 44 RRR Dispensing side panel
23 22900-00600 Central pivot 45 RRR Drip tray cover
24 22040-00000 Central pivot OR 46 RRR Drip tray
27 21087-00000 Thermostat 47 33800-00803 Motor magnet for 1, 3 bowls
29 10554-45000 Clip 48 22800-04800 Motor bracket
30 RRR Cabinet 49 22800-04706 Pump motor 3 bowls
31 21125-00000 Switch
>>> Please order what printed on piece RRR
See table
RRR
1/.. 2/.. 3/.. 4/..
30 22900-03210 22900-03211 22900-03212 22900-03213
38 22900-00403 22900-00401 22900-00401 22900-00401
44 22900-03110 22900-03111 22900-03112 22900-03113
45 22800-00500 22800-00510 22800-00510 22800-00510
46 22800-00602 22800-00611 22800-00611 22800-00611

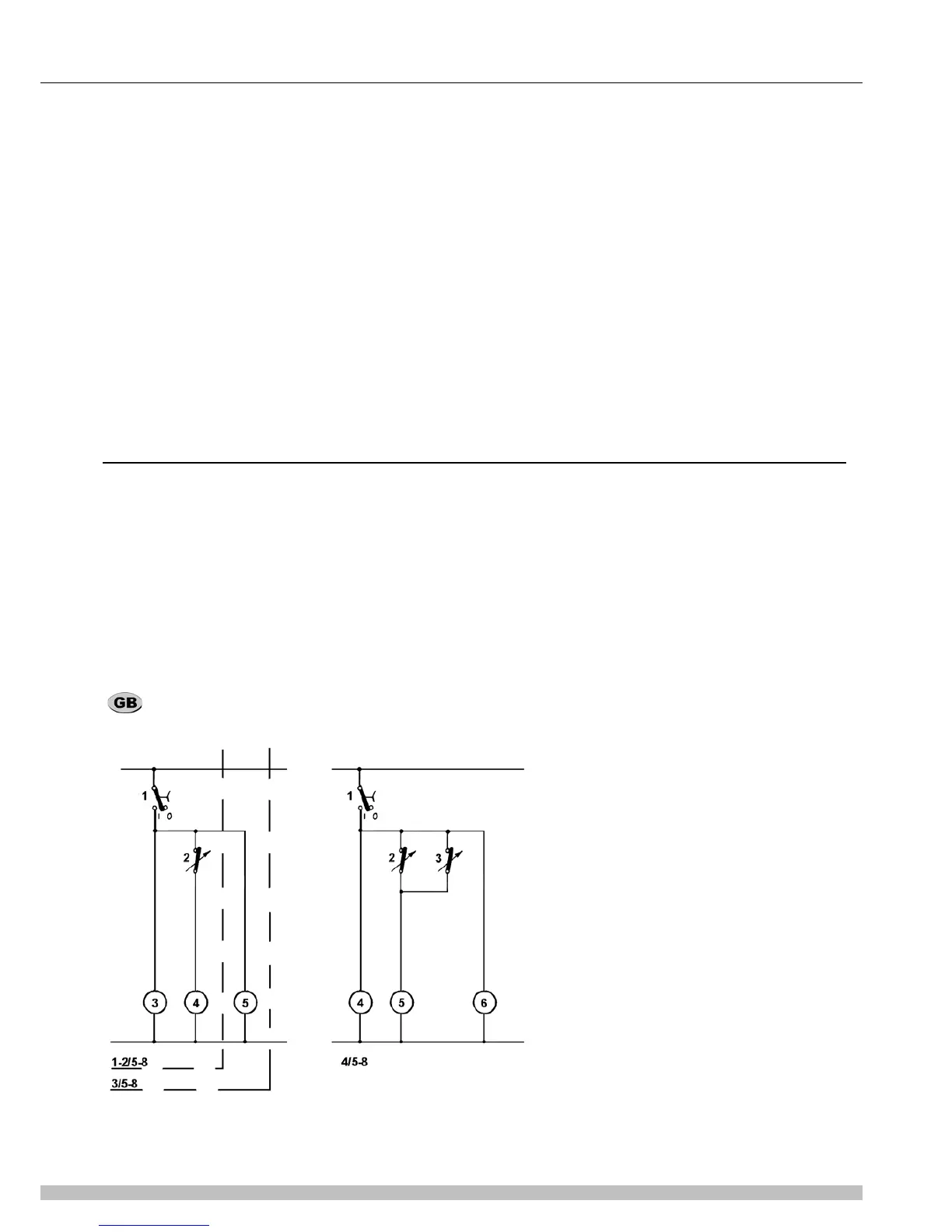

WIRING DIAGRAM ARCTIC COMPACT 5/8 LT MODEL
1/5-8 - 2/5-8 - 3/5-8
1Switch
2Thermostat
3-5 Pump/mixer
4 Compressor
4/5-8
1Switch
2-3 Thermostat
4-6 Pump/mixer
5 Compressor
