ARCTIC COMPACT & DELUXE

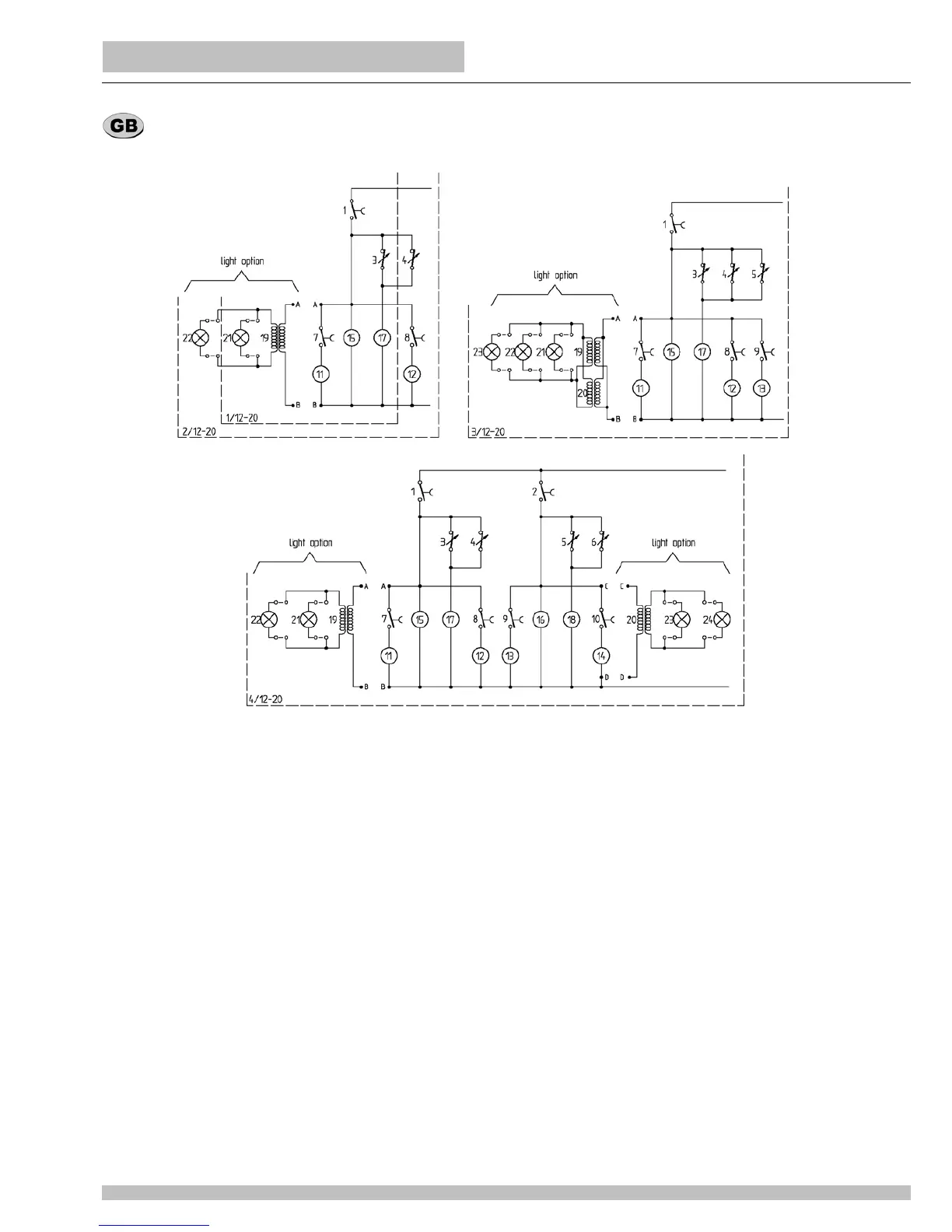

WIRING DIAGRAM ARCTIC DELUXE 12/20 LT MODEL
1-2 Switch
3-4-5-6 Thermostat
7-8-9-10 Pump/mixer switch
11-12-13-14 Pump/mixer
15-16 Fan Motor
17-18 Compressor
19-20 Transformer
21-22-23-24 Top light
