Ugolini ARCTIC COMPACT

19
1 22900-00100 20 It bowl cover 22 22800-05100 Switch cap
2 22900-00100 12 It bowl cover 23 33900-01051 Pulley, magnet and spacer assembly
3 22900-04810 20 It bowl 24 22900-03601 Belt
4 22900-00010 12 It bowl 25 22800-02201 Driving pulley
5 22800-02600 Faucet spring 26 22800-04800 Motor bracket
6 22800-17200 Bowl gasket 27 22800-18921 Fan/pump motor for 1 bowl
7 33900-01201 Impeller 27A 22900-03001 Fan/pump motor for 2, 4 bowls
8 22900-00700 Plastic I-beam for connection 28 RRR Fan
9 22900-00600 Central pivot 29 >>> Relay
10 22040-00000 Central pivot OR 30 >>> Overload protector
11 22900-03051 Capacitor 31 22800-12700 Terminal block cover
12 10554-45000 Clip 32 22800-05500 Terminal block with cable clamp
13 22800-21900 Faucet piston 33 33800-00803 Motor magnet for 1, 3 bowls
14 10028-02500 Faucet gasket 34 22800-04800 Motor bracket
15 21703-00000 Pinch tube 35 22800-04706 Pump motor 3 bowls
16 10029-00000 Picture 36 RRR Cabinet
17 22900-00500 Push handle 37 22800-10000 Rubber leg
18 22900-00800 Faucet cover 38 RRR Dispensing side panel
19 22900-00501 Push handle 39 22900-03700 Drip tray cover
20 21087-00000 Thermostat 40 22900-03800 Drip tray
21
21125-00000 Switch
>>> Please order what printed on piece RRR See table
RRR
1/.. 2/.. 3/.. 4/..
28 22900-00400 22900-00402 22900-00402 22900-00402
36 22900-03200 22900-03201 22900-03202 22900-03203
38 22900-03100 22900-03101 22900-03102 22900-03103

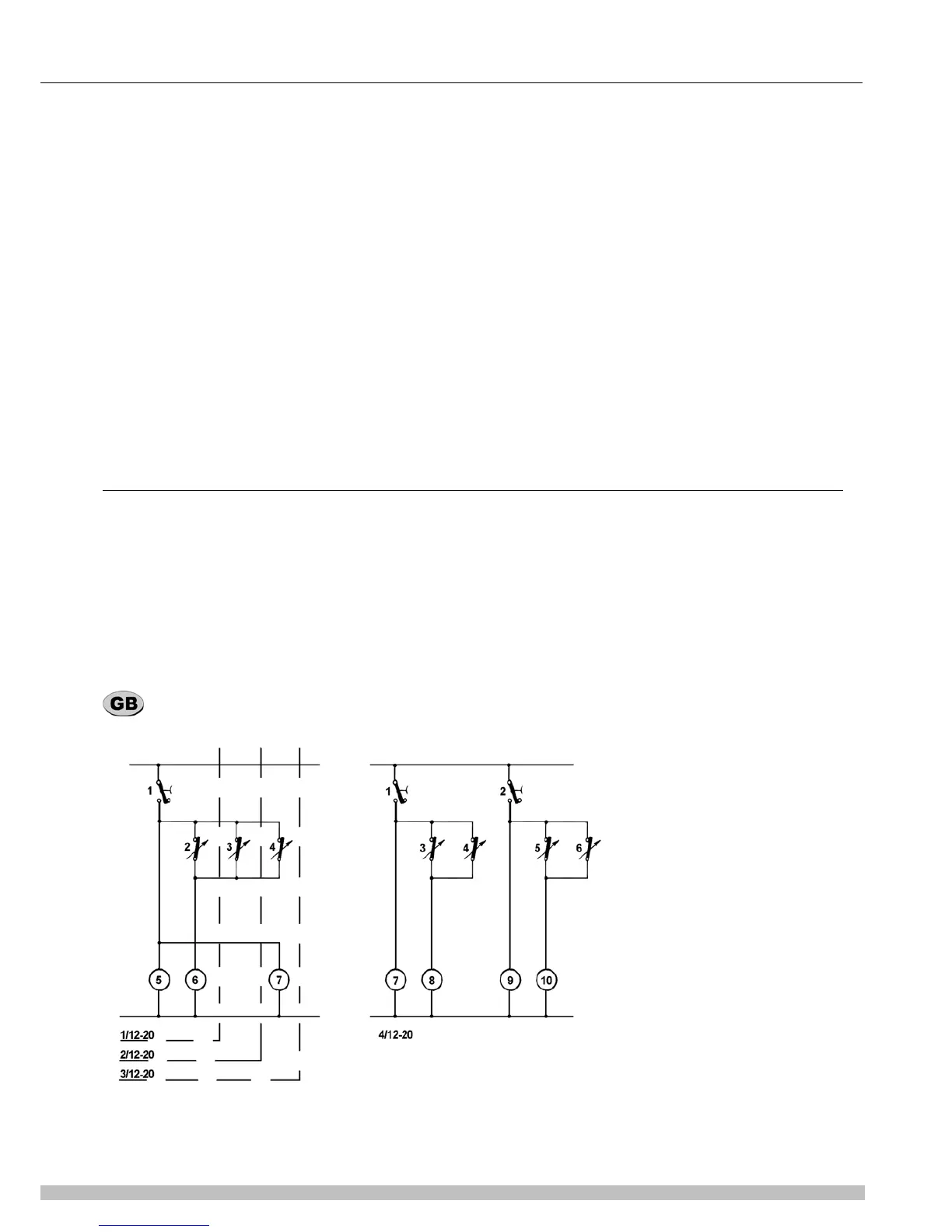

WIRING DIAGRAM ARCTIC COMPACT 12/20 LT MODEL
1/12-20 - 2/12-20 - 3/12-20
1Switch
2-3-4 Thermostat
5-7 Pump/mixer
6 Compressor
4/12-20
1-2 Switch
3-4-5-6 Thermostat
7-9 Pump/mixer
8-10 Compressor
