Ugolini minigel plus - Component Removal for Cleaning

17

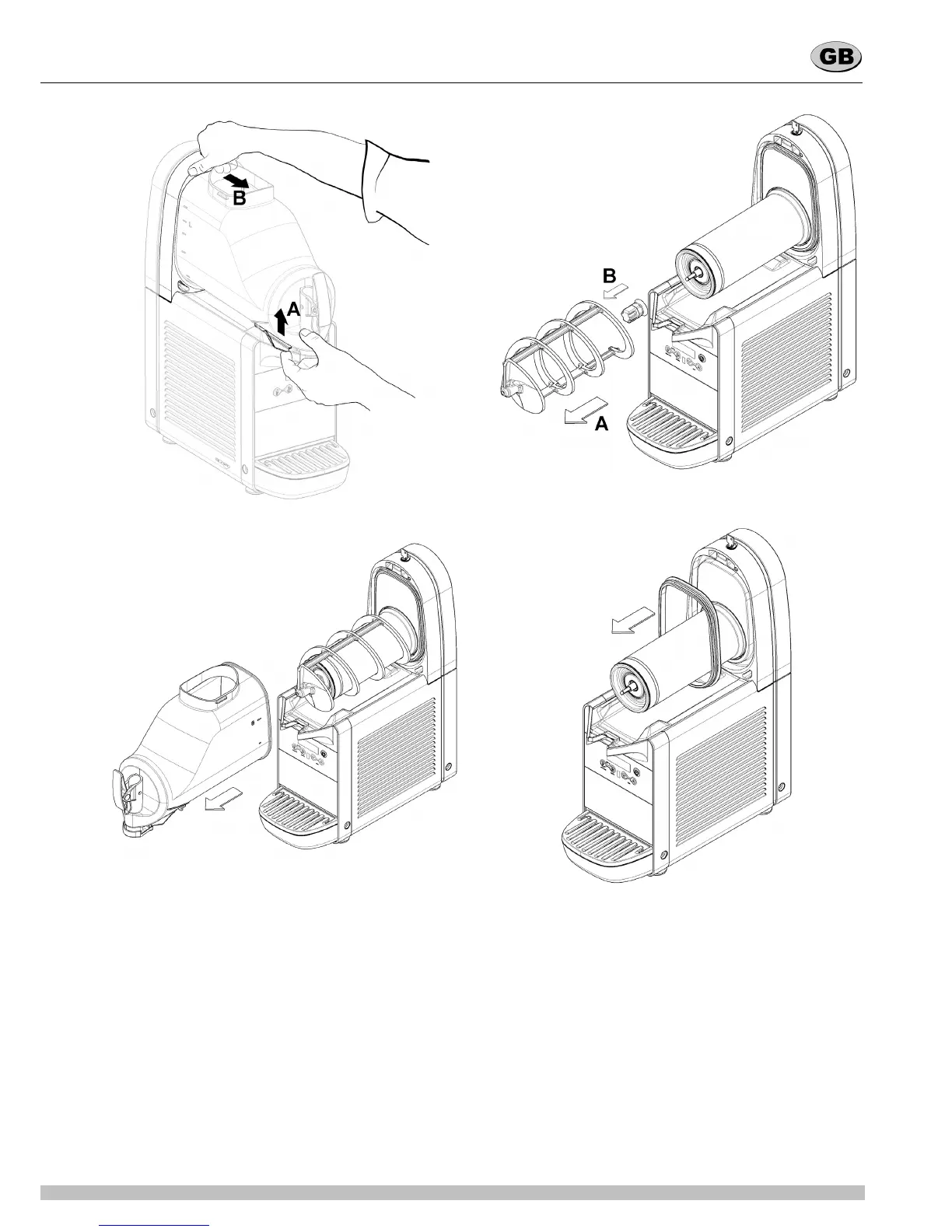

figure 3) and then remove the container itself (see figure 4).
figure 3
figure 4
3 Remove the mixer by sliding it out of the evaporator
cylinder. Then remove the hexagonal joint (see figure 5).
figure 5
4 Remove the gasket from its housing (see figure 6).
figure 6
5 Disassemble the tap by following the order given (see figure
