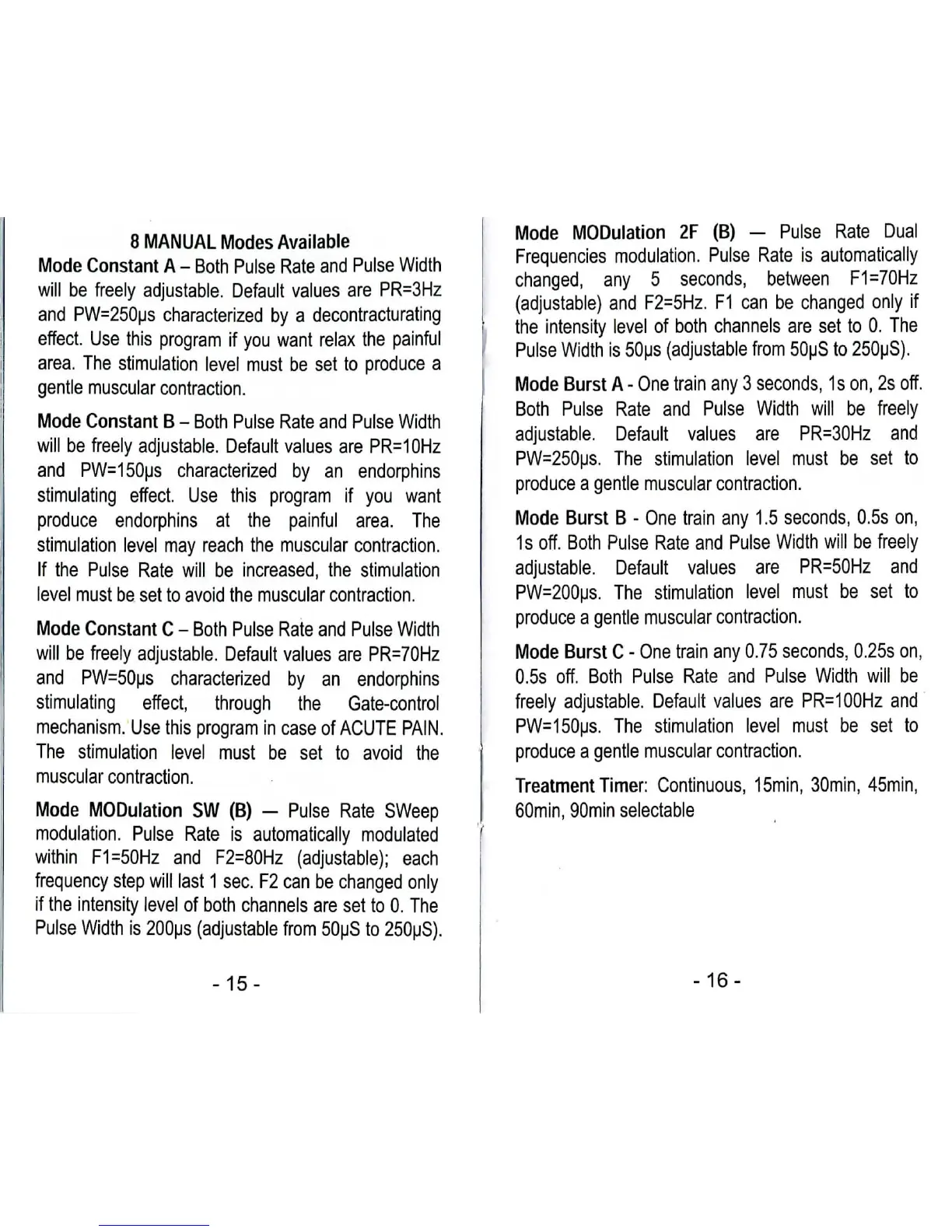

8 MANUAL Modes Available
Mode Constant A - Both Pulse Rate and Pulse Width
will be freely adjustable. Default values are PR=3Hz
and PW=250us characterized by a decontracturating
effect. Use this program if you want relax the painful
area. The stimulation level must be set to produce a
gentle muscular contraction.
Mode Constant B - Both Pulse Rate and Pulse Width
will be freely adjustable. Default values are PR=10Hz
and PW=150us characterized by an endorphins
stimulating effect. Use this program if you want
produce endorphins at the painful area. The
stimulation level may reach the muscular contraction.
If the Pulse Rate will be increased, the stimulation
level must be set to avoid the muscular contraction.
Mode Constant C - Both Pulse Rate and Pulse Width
will be freely adjustable. Default values are PR=70Hz
and PW=50us characterized by an endorphins
stimulating effect, through the Gate-control
mechanism. Use this program in case of ACUTE PAIN.
The stimulation level must be set to avoid the
muscular contraction.
Mode MODulation SW (B) — Pulse Rate SWeep
modulation. Pulse Rate is automatically modulated
within F1=50Hz and F2=80Hz (adjustable); each
frequency step will last 1 sec. F2 can be changed only
if the intensity level of both channels are set to 0. The
Pulse Width is 200us (adjustable from 50uS to 250uS).
-15-
Mode MODulation 2F (B) — Pulse Rate Dual
Frequencies modulation. Pulse Rate is automatically
changed, any 5 seconds, between F1=70Hz
(adjustable) and F2=5Hz. F1 can be changed only if
the intensity level of both channels are set to 0. The
Pulse Width is 50us (adjustable from 50uS to 250uS).
Mode Burst A - One train any 3 seconds, 1 s on, 2s off.
Both Pulse Rate and Pulse Width will be freely
adjustable. Default values are PR=30Hz and
PW=250us, The stimulation level must be set to
produce a gentle muscular contraction.
Mode Burst B - One train any 1.5 seconds, 0.5s on,
1s off. Both Pulse Rate and Pulse Width will be freely
adjustable. Default values are PR=50Hz and
PW=200us. The stimulation level must be set to
produce a gentle muscular contraction.
Mode Burst C - One train any 0.75 seconds, 0.25s on,
0.5s off. Both Pulse Rate and Pulse Width will be
freely adjustable. Default values are PR=100Hz and
PW=150us. The stimulation level must be set to
produce a gentle muscular contraction.
Treatment Timer: Continuous, 15min, SOmin, 45min,
60min, 90min selectable
-16-
