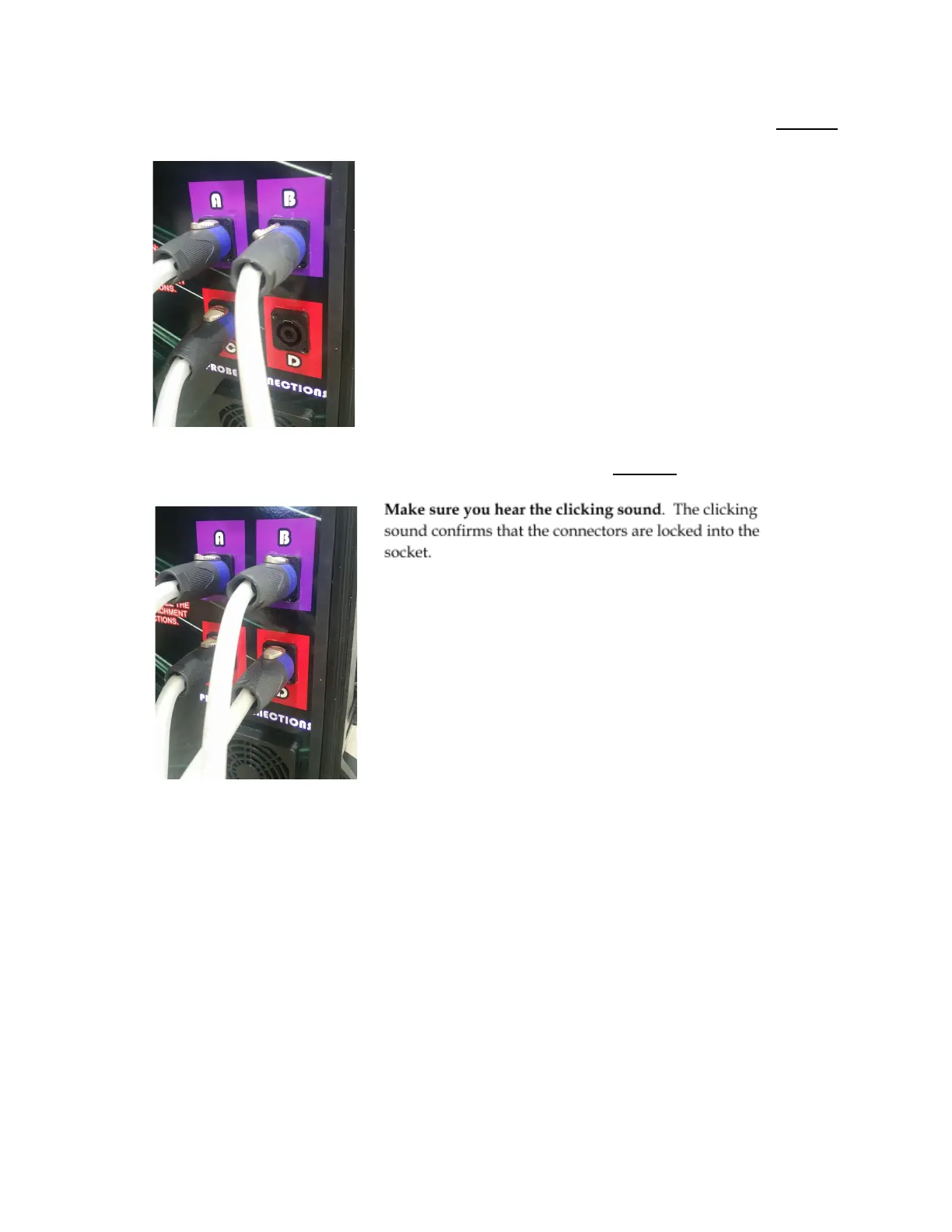

3. Similar to Step #1, take any of the probe connector for the second probe and aim it towards Socket B of
the probe connections. Insert the probe connectors at an angle as shown below
4. Similar to Step #2, insert the other connector of the second probe to Socket D then turn both connectors
towards the right until you hear a click
5. To remove the probe, pull the silver latch. Always remove the probe connector to the RIGHT first.
DO NOT let go of the silver latch until the connector is removed.
17
