2.1.8 THE LAMP

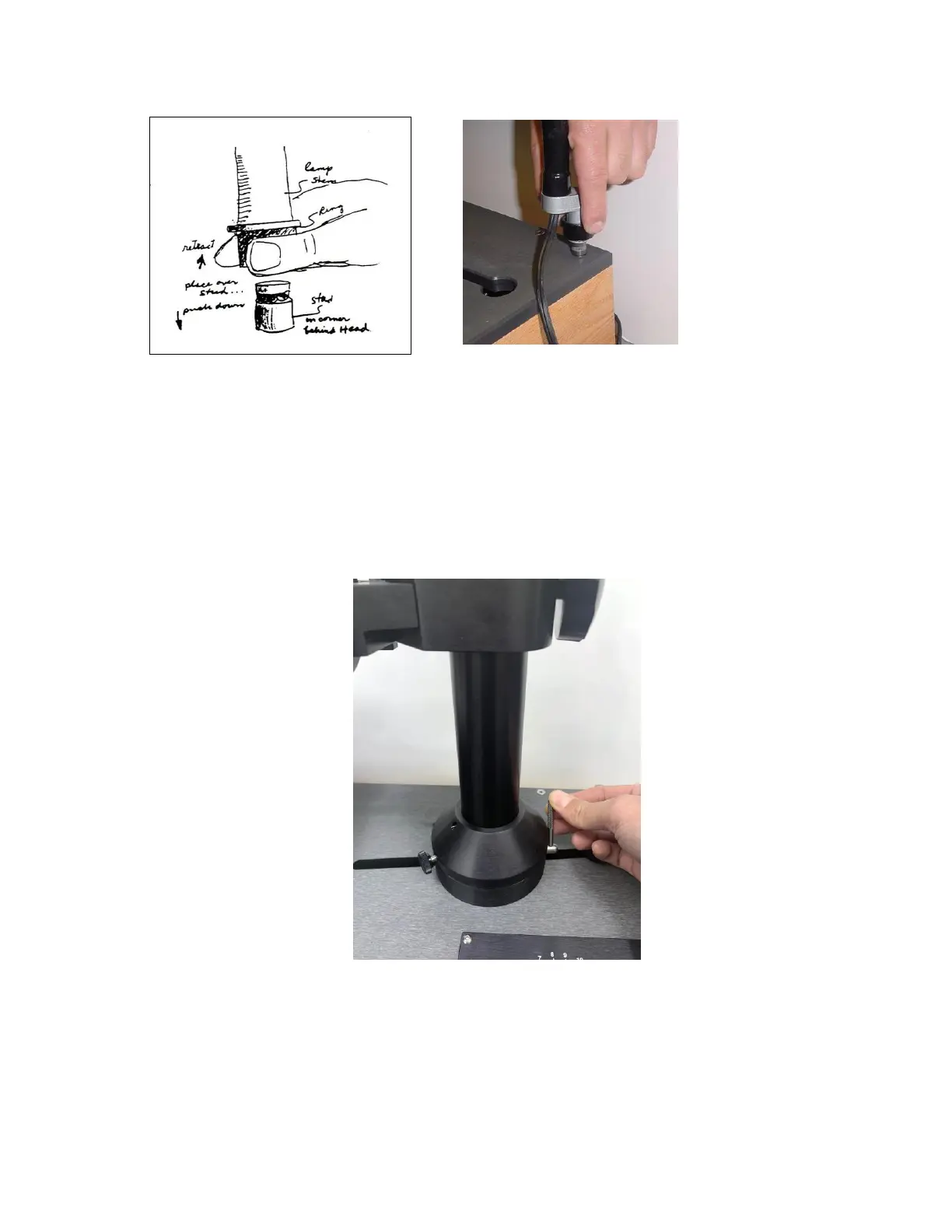

If you have purchased a lamp, it mounts onto the stud already assembled in the base, in the corner behind the
head. The lamp mounting lock has a snap-on design. Pull back the nylon ring, place the lamp onto the stud,
and push down the ring. You will feel the ring snap into the down position, where it holds the lap securely.
2.2 THE FACETING MAST
2.2.1 MOUNTING THE MAST ONTO THE BASE.
Mount the Mast onto the Base. To mount the Mast, slip the nut into the keyhole, and slide the Mast forward into
the slot. The Mast may be positioned in any convenient position along the slot. To lock the Mast into any
particular position, turn the locking lever clockwise until you can feel it become snug. The nut (that fits below
the Baseplate) can be adjusted so that the lever locks in a convenient position.
The Collar-Locking Knob (seen in the photo) holds in place the conical Collar (the Collar protects from residue
the positioning components at the base of the Z-position Cylinder). Loosening the Locking Knob allows the
Collar to rotate freely – there’s no “right” rotational position for it (whatever position is convenient for you is OK).
