Ultrafly Edge 540 - Page 8

06
Procedure 4
Procedure 6
Procedure 5

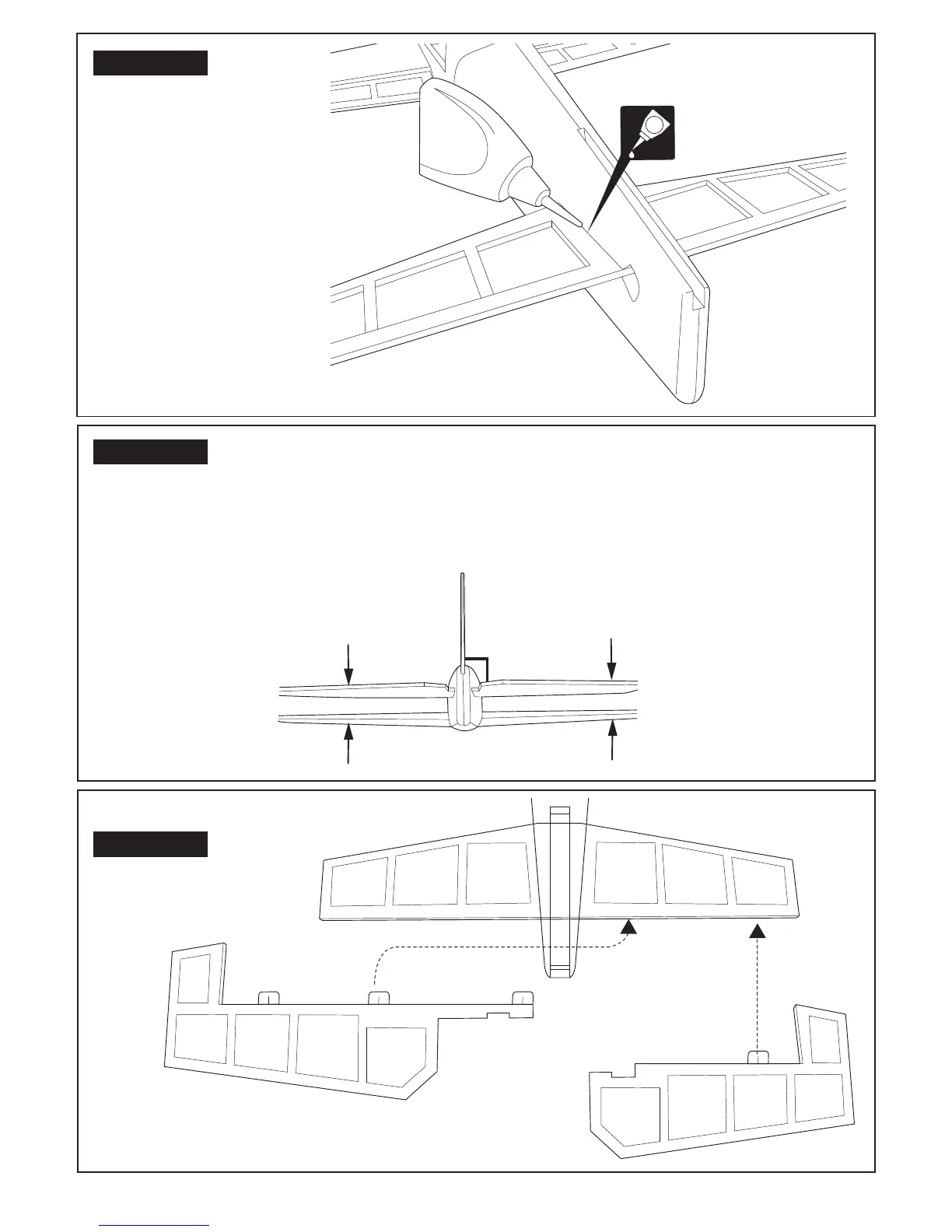

Connect the right control surface to elevator. Then install the other
side of the elevator control surface the same way.
C.A
Use CA to glue it into position as the picture
shown. Insert CA hinges into the elevator and
its control surface.
Install the main wing on the fuselage then install the rudder fin on the fuselage for reference. Put the
model on your working table and look from the tail side as graphic shows. You need to adjust the elevator
with pin or other object to make even on both sides. The distance at "a" should be equal to "b" as graphic shows.
The angle between rudder and elevator should be 90 degree as well. Once it is perfectly aligned,use CA to
hold the elevator on fuselage.
90
0
a
b
a b
=
