SEAT ARMS INSTALLATION AND ADJUSTMENT
Your UltraLite Vehicle may be equipped with Width Adjustable Folding Arms on the seat.
To install the arms:

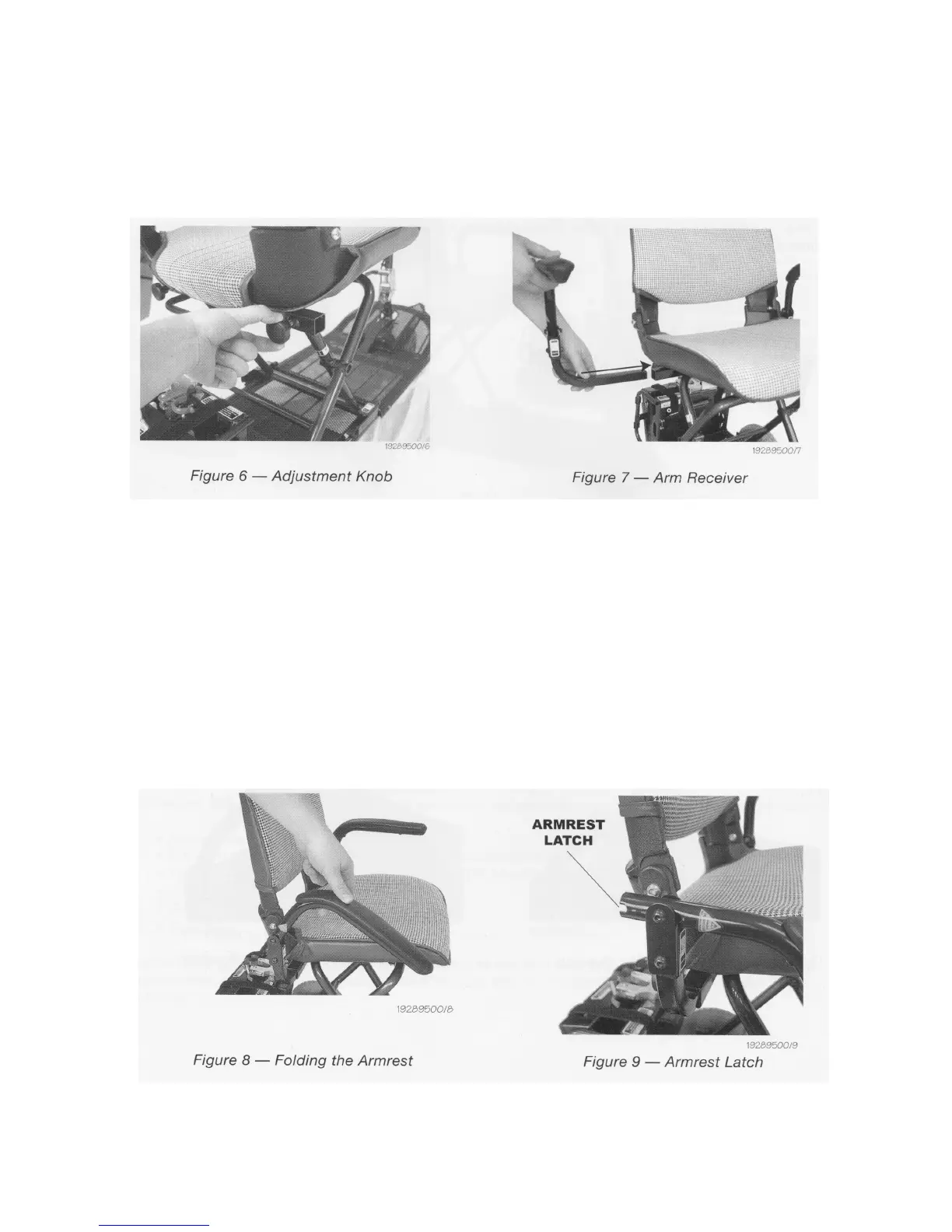

1. Loosen the Adjustment Knobs on the Arm Receiver under the rear of the seat (Figure 6).
2. Slide the square end of the Arm into the Arm Receiver and position the Arm at the desired width (Figure 7).
3. Firmly tighten the Adjustment Knobs to secure the arms.
The arms may be readjusted at any time by loosening the knobs and sliding the arms inward or outward and
re-tightening the knobs
CAUTION!
Be sure to tighten the adjustment knobs securely. Always adjust the arms equally. Do not adjust the arms to
more than 69 cm wide.
The Arms of your vehicle may be folded downward to ease getting on and off the vehicle and make your
vehicle more compact for storage and transport. To fold an arm, grasp the arm at the rear of the arm pad, and
lift the arm upward to disengage the armrest latch. The arm will swing forward and down. (Figure 8) To fold
the arm to the upward position, swing the arm up, then firmly push the arm down at the rear of the arm pad to
engage the arm rest latch. (Figure 9)
