Service Manual

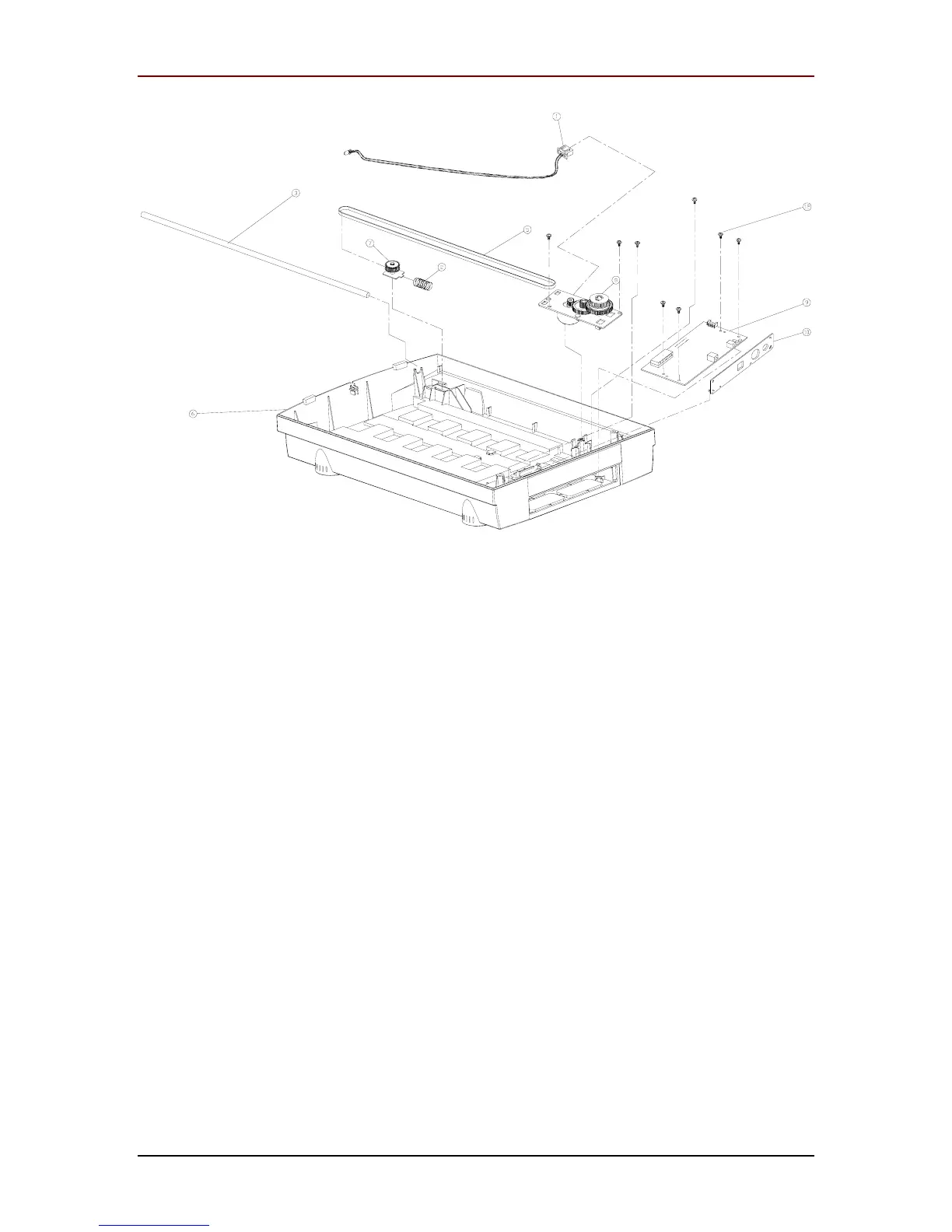

Mechanical Parts Diagram

ITEM # Description

01 WIRE, LED, WITH CORE, SUNRISE

02 SPRING, PULLEY, MOUNT, LIFE

03 ROD,10D, LIFE

05 RUBBER, TIMING BELT, 380T, LIFE

06 DOWN HOUSING, SUNRISE

07 M'ASSY, IDLER PULLEY, SUNRISE

08 M'ASSY, MOTOR, SUNRISE

09 PCBA, H890, USE-M/B, SUNRISE

10 PLATE, MAIN BOARD, USB. ASTRA 1220U

11 SCREW, MCR, M3X4, NI

SCREW, UP HOUSING, M4X6XD8
