Service Manual

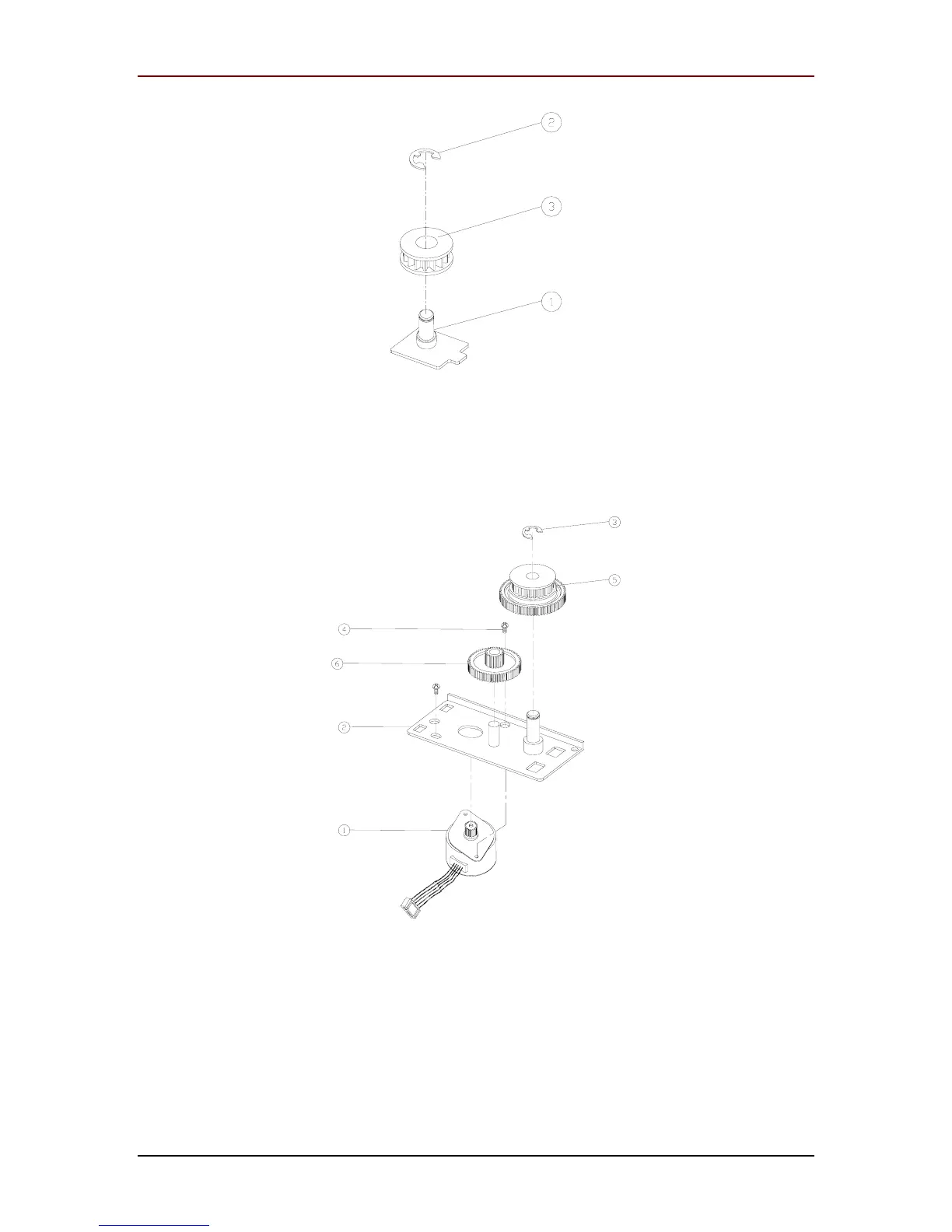

Idler Pulley Assembly

ITEM # Description

01 MOUNT, IDLER PULLEY, SUNRISE

02 E-RING, 5D, NI

03 PULLEY, IDLER, 25T, C, P2.032

Motor Frame Assembly

ITEM # Description

01 MOTOR, MITSUMI, M35SP-7

02 MOTOR MOUNT, SUNRISE

03 E-RING, 5D, NI

04 SCREW, MCT, T, M3 X 6, NI

05 GEAR, 90T, PULLEY, 25T

06 GEAR, 18TX80T, SUNRISE
