Service Manual

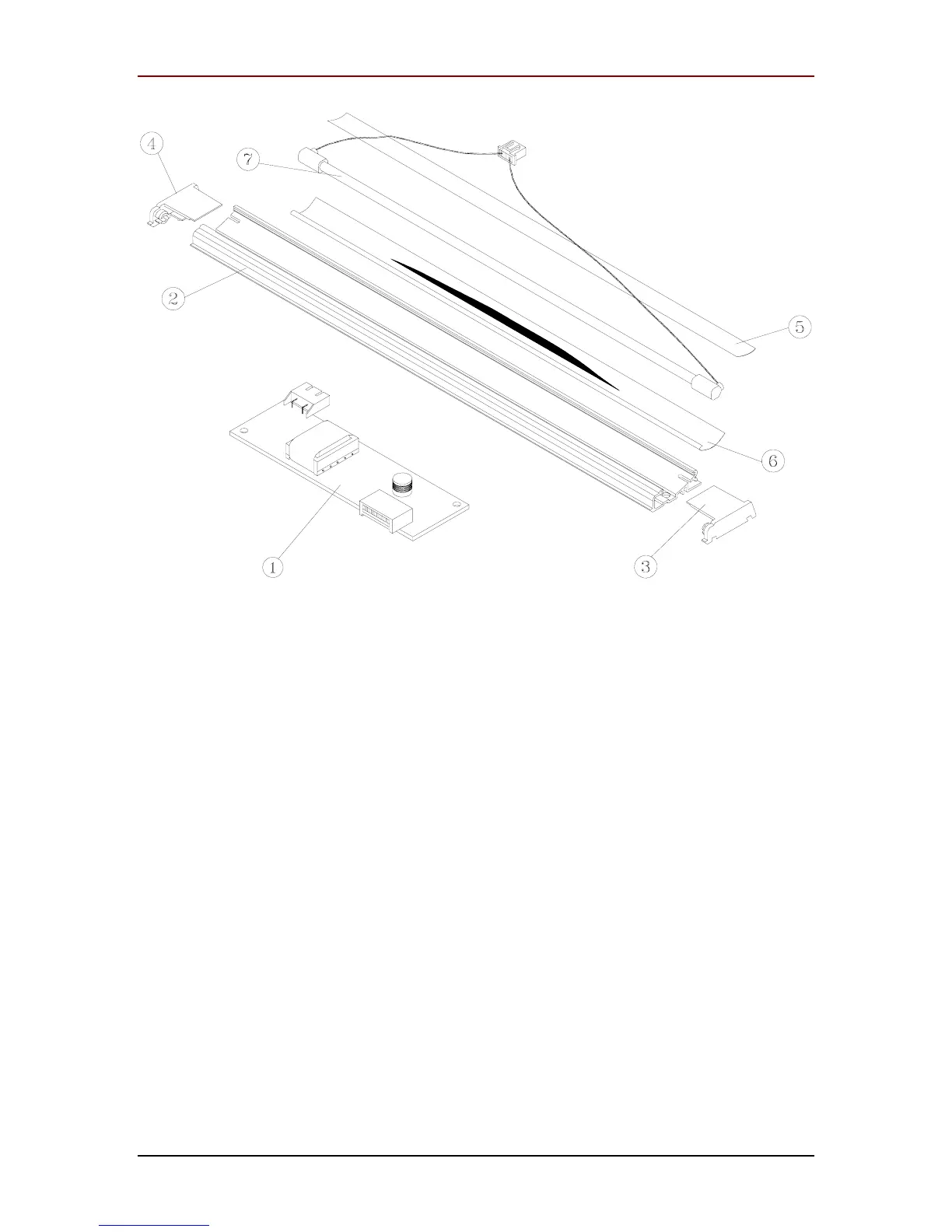

Lamp Assembly Diagram

ITEM # Description

01 INV, 9V, 2.6¢X250X1, SUN, COTEK

02 HOLDER, LAMP, SUN

03 CAP, LEFT, LAMP, SUN

04 CAP, RIGHT, LAMP, SUN

05 SHEET, DIFFUSE, 240X16.2MM, SUN

06 SHEET, REFLECT, 264X23MM, SUN

07 LAMP, A’SSY, D2.6X250L, FL-2650-MW, SUN
