Service Manual

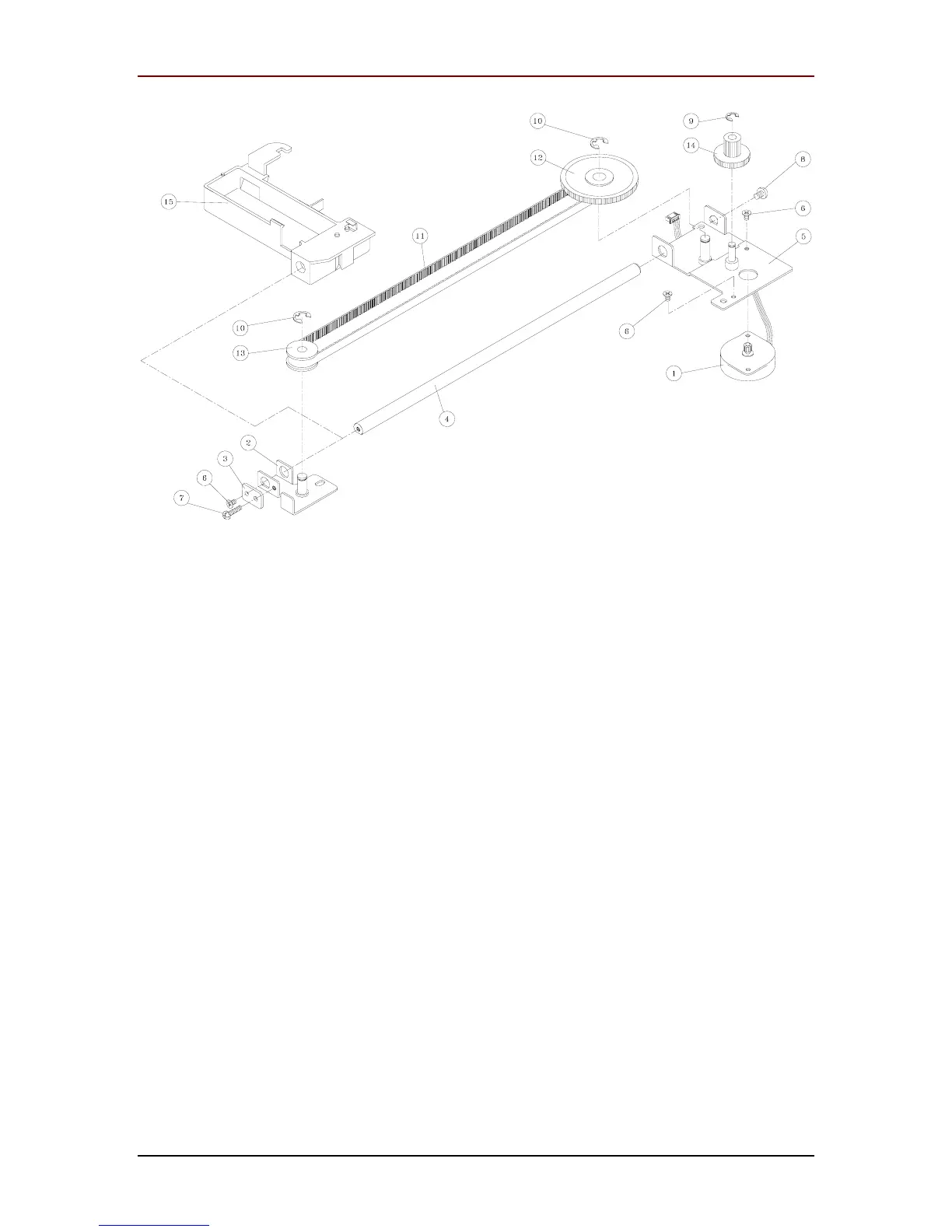

Motor Assembly Diagram

ITEM # Description

01 MOTOR, 12V, M42SP-4, SUN

02 BRACKET, IDLER, SUN

03 BLOCK, POSITIONING, UTA-V

04 SHAFT, ROD, SUN

05 BRACKET, MOTOR, SUN

06 SCREW, MCT, T, M3X6, NI

07 SCREW, MCP, M3X12, ZN

08 SCREW, MCP, T, M4X6M, ZN

09 E-RING, 2.5D, NI

10 E-RING, 5D, NI

11 RUBBER, TIMER BELT, 397T, SUN

12 GEAR, 90T-PULLEY 25T

13 PULLEY IDLER 25T, CP2.032

14 GEAR, 40T-18T, SUN

15 FRAME, SLIDE, SUN
