Service Manual

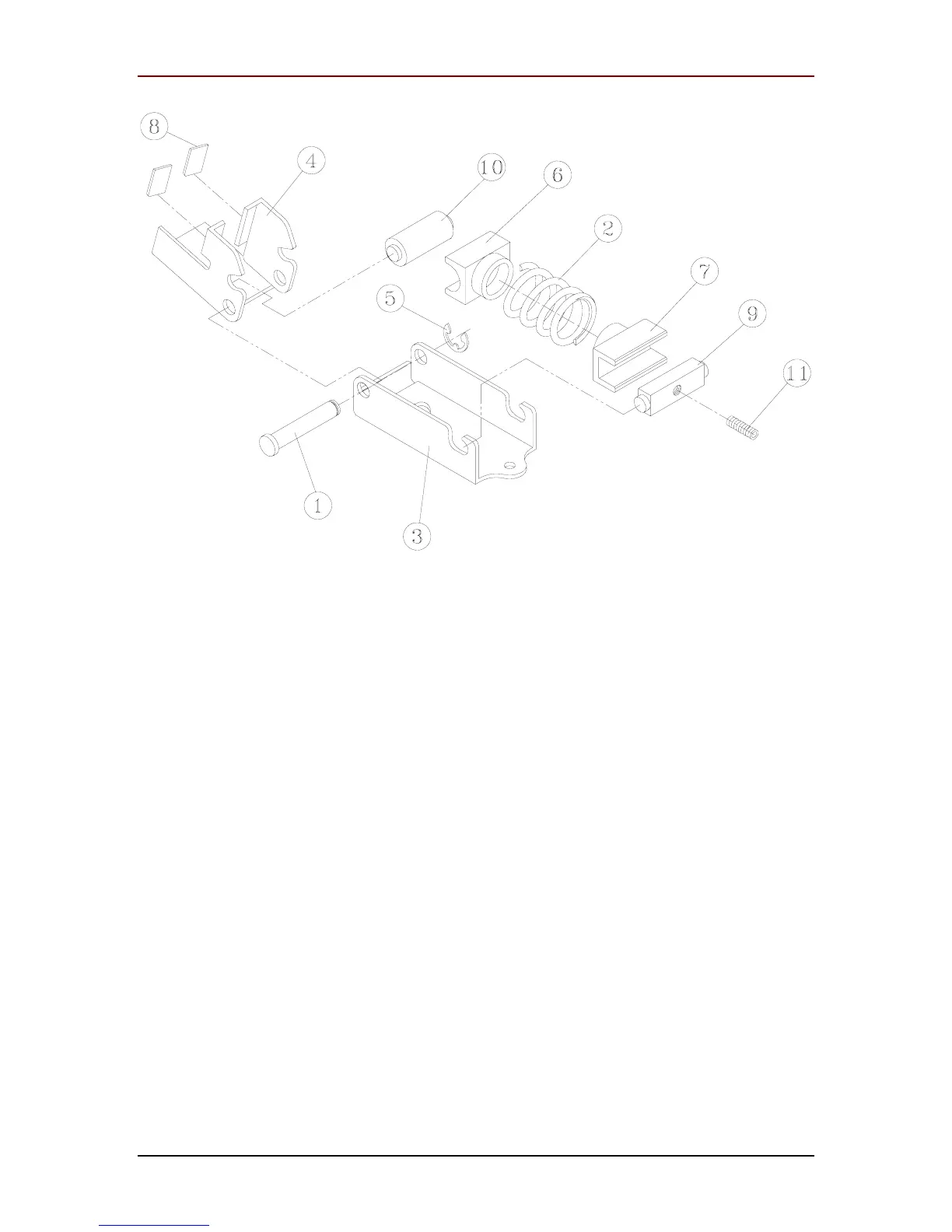

Hinge Assembly Diagram

ITEM # Description

01 SHAFT, HING, D5.9X34.1

02 SPRING, HINGE, UTA-V

03 FRAME, HINGE, UTA-V

04 HINGE, BASE, SUN

05 E-RING, 5D, NI

06 BLOCK, FRICTION, UTA-V, PART2

07 BLOCK, FRICTION, UTA-V, PART1

08 PAD, HINGE, UTA-V

09 SHAFT, HINGE, D9X31.4

10 SHAFT, HINGE, D11X26.8

11 SCREW, SET, M4X10, BLK
