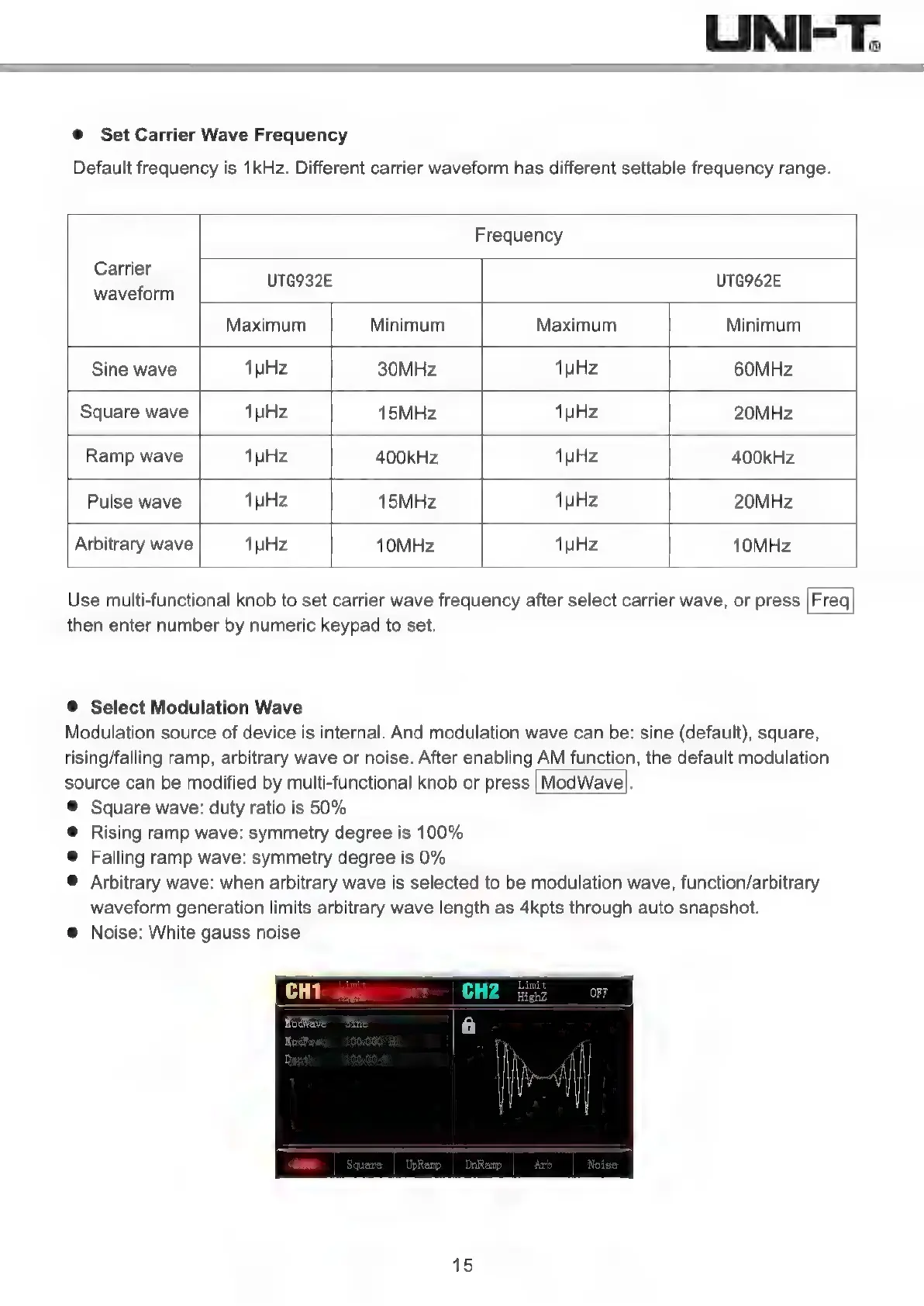

® Set Carrier Wave Frequency
Default frequency is 1kHz. Different carrier waveform has different settable frequency range.
Frequency
Gamer UTG932E UTG962E
waveform
Maximum Minimum Maximum Minimum
Sine wave 1pHz 30MHz 1uHz 60MHz
Square wave 1pHz 15MHz 1pHz 20MHz
Ramp wave 1pHz 400kHz 1pHz 400kHz
Pulse wave 1pHz 15MHz 1pHz 20MHz
Arbitrary wave 1pHz 10MHz Hz 10MHz
Use multi-functional knob to set carrier wave frequency after select carrier wave, or press [Freq]
hen enter number by numeric keypad to set.
® Select Modulation Wave
Modulation source of device is internal. And modulation wave can be: sine (default), square,
rising/falling ramp, arbitrary wave or noise. After enabling AM function, the default modulation
source can be modified by multi-functional knob or press [Modwavel.
® Square wave: duty ratio is 50%
® Rising ramp wave: symmetry degree is 100%
® Falling ramp wave: symmetry degree is 0%
© Arbitrary wave: when arbitrary wave is selected to be modulation wave, function/arbitrary
waveform generation limits arbitrary wave length as 4kpts through auto snapshot.
@ Noise: White gauss noise
