UNI-T UTG900E Series User Manual

LINI-T,.

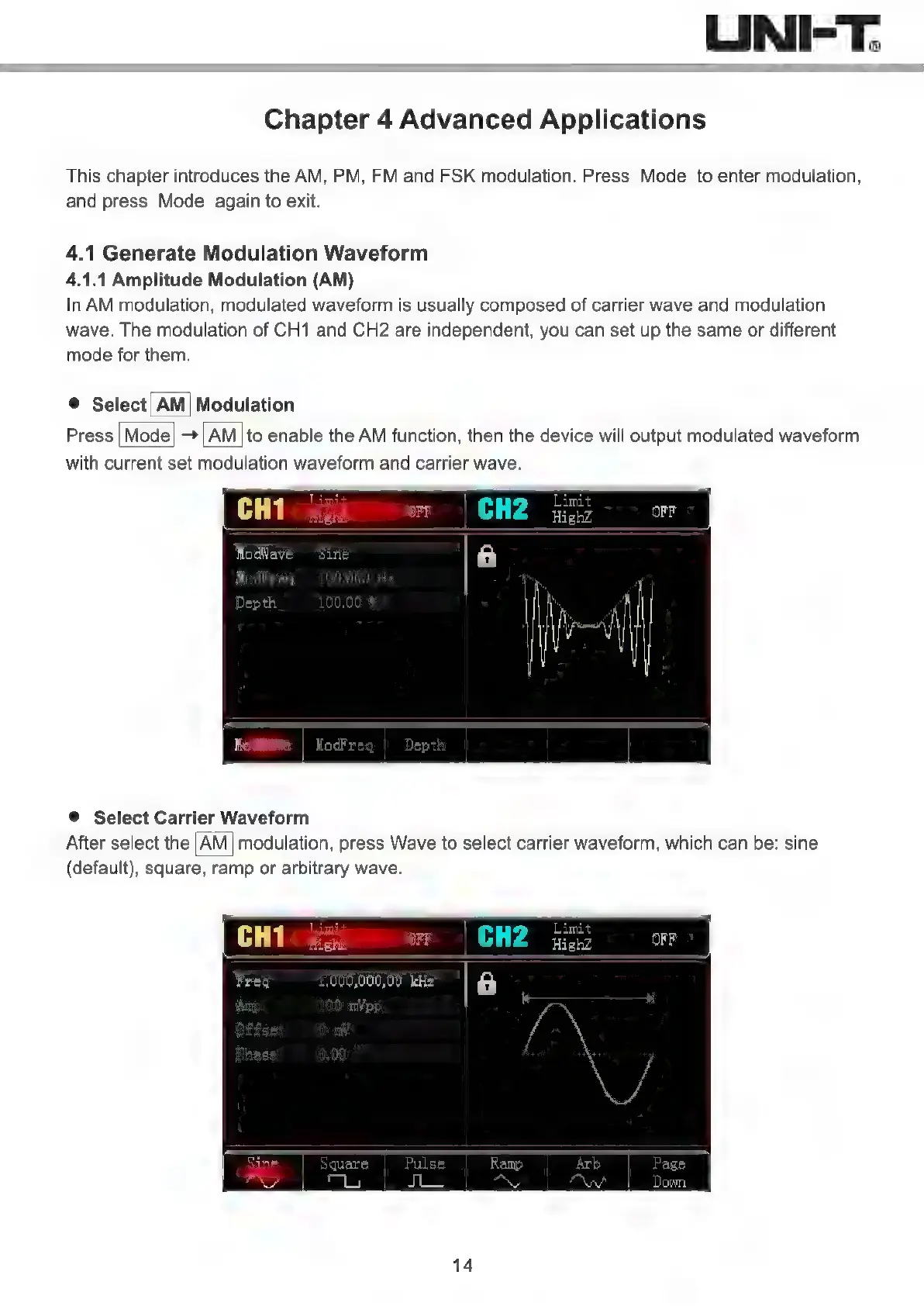

Chapter 4 Advanced Applications
This chapter introduces the AM, PM, FM and FSK modulation. Press Mode to enter modulation,
and press Mode again to exit.
4.1 Generate Modulation Waveform
4.1.1 Amplitude Modulation (AM)
In AM modulation, modulated waveform is usually composed of carrier wave and modulation
wave. The modulation of CH1 and CH2 are independent, you can set up the same or different
mode for them.
© Select) AM |Modulation
Press |Mode| >| AM |to enable the AM function, then the device will output modulated waveform
with current set modulation waveform and carrier wave.
Limit
Sine
HodFreq
_
100.000
Hz
Depth 100.00 %
® Select Carrier Waveform
After select the AM |modulation, press Wave to select carrier waveform, which can be: sine
(default), square, ramp or arbitrary wave.
14
