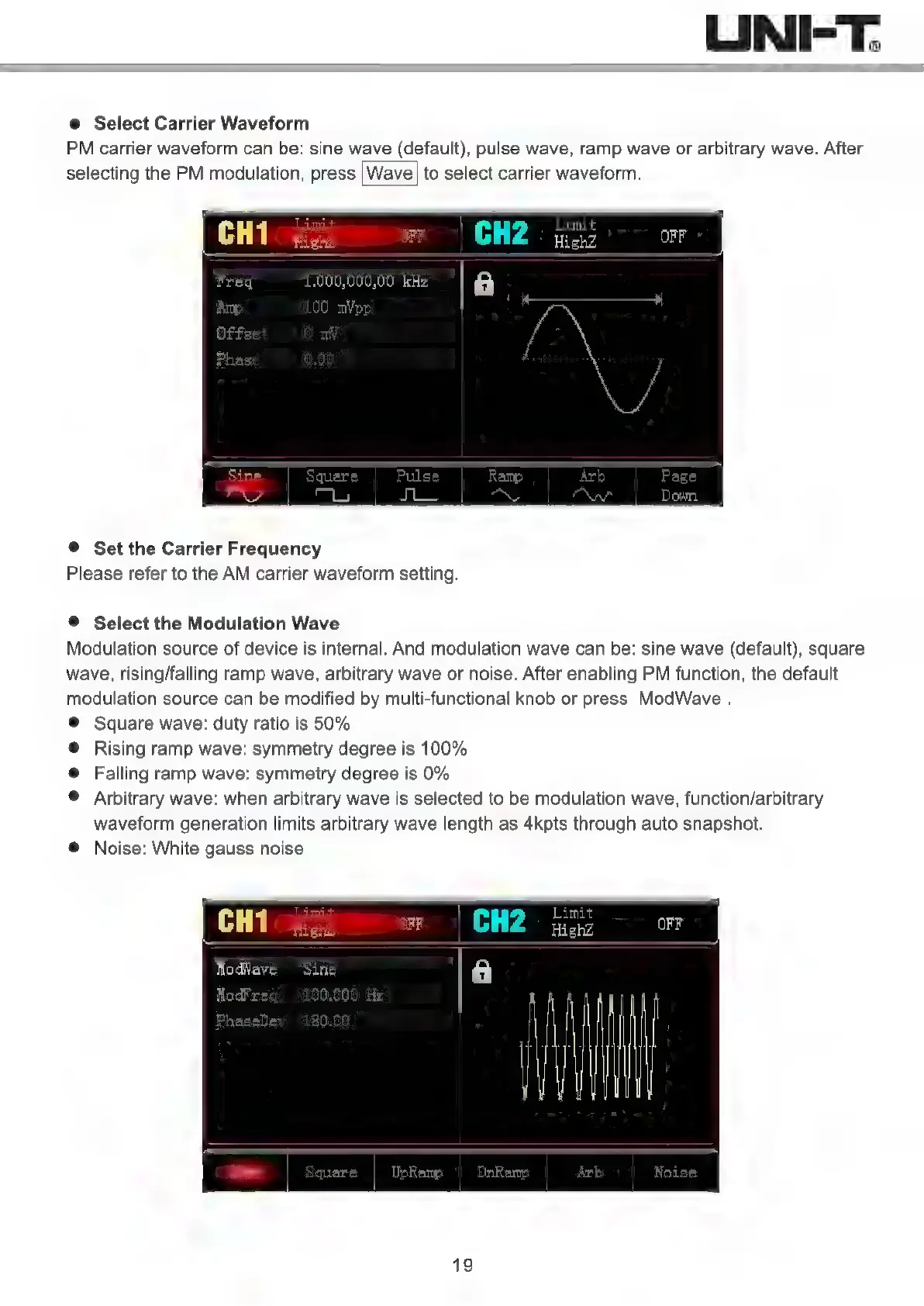

© Select Carrier Waveform
PM carrier waveform can be: sine wave (default), pulse wave, ramp wave or arbitrary wave. After
selecting the PM modulation, press [Wave] to select carrier waveform.
Limit
100 mipp
® Set the Carrier Frequency
Please refer to the AM carrier waveform setting.
® Select the Modulation Wave
Modulation source of device is internal. And modulation wave can be: sine wave (default), square
wave, rising/falling ramp wave, arbitrary wave or noise. After enabling PM function, the default
modulation source can be modified by multi-functional knob or press ModWave .
® Square wave: duty ratio is 50%
® Rising ramp wave: symmetry degree is 100%
@ Falling ramp wave: symmetry degree is 0%
© Arbitrary wave: when arbitrary wave is selected to be modulation wave, function/arbitrary
waveform generation limits arbitrary wave length as 4kpts through auto snapshot.
Noise: White gauss noise
19
