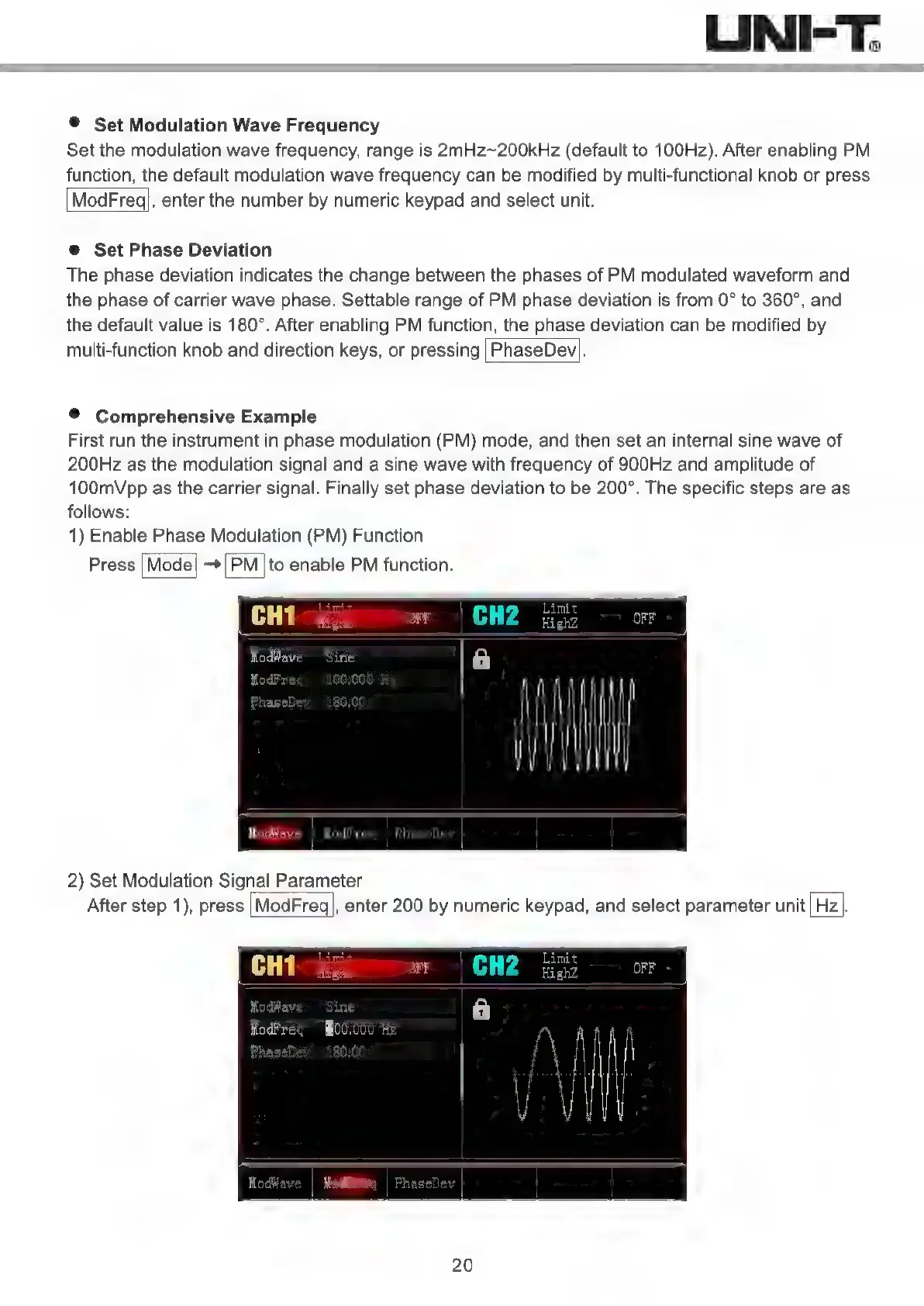

LINI-T,.
©
Set
Modulation
Wave
Frequency
Set
the
modulation
wave
frequency,
range
is
2mHz-200kHz
(default
to
100Hz).
After
enabling
PM
unction,
the
default
modulation
wave
frequency
can
be
modified
by
multi-functional
knob
or
press
ModFreg,
enter
the
number
by
numeric
keypad
and
select
unit.
®
Set
Phase
Deviation
The
phase
deviation
indicates
the
change
between
the
phases
of
PM
modulated
waveform
and
the
phase
of
carrier
wave
phase.
Settable
range
of
PM
phase
deviation
is
from
0°
to
360°,
and
the
default
value
is
180°.
After
enabling
PM
function,
the
phase
deviation
can
be
modified
by
multi-function
knob
and
direction
keys,
or
pressing
|PhaseDev).
©
Comprehensive
Example
First
run
the
instrument
in
phase
modulation
(PM)
mode,
and
then
set
an
internal
sine
wave
of
200Hz
as
the
modulation
signal
and
a
sine
wave
with
frequency
of
900Hz
and
amplitude
of
100mVpp
as
the
carrier
signal. Finally
set
phase
deviation
to
be
200°.
The
specific
steps
are
as
follows:
1)
Enable
Phase
Modulation
(PM)
Function
Press
|[Mode/
>|
PM
|to
enable
PM
function.
>
â
en
MAME
IN
EN
ModWave
|
Mo:
q
|
PhaseDev
2)
Set
Modulation
Signal
Parameter
After
step
1),
press
[ModFreg|,
enter
200
by
numeric
keypad,
and
select
parameter
unit
[rz].
20
