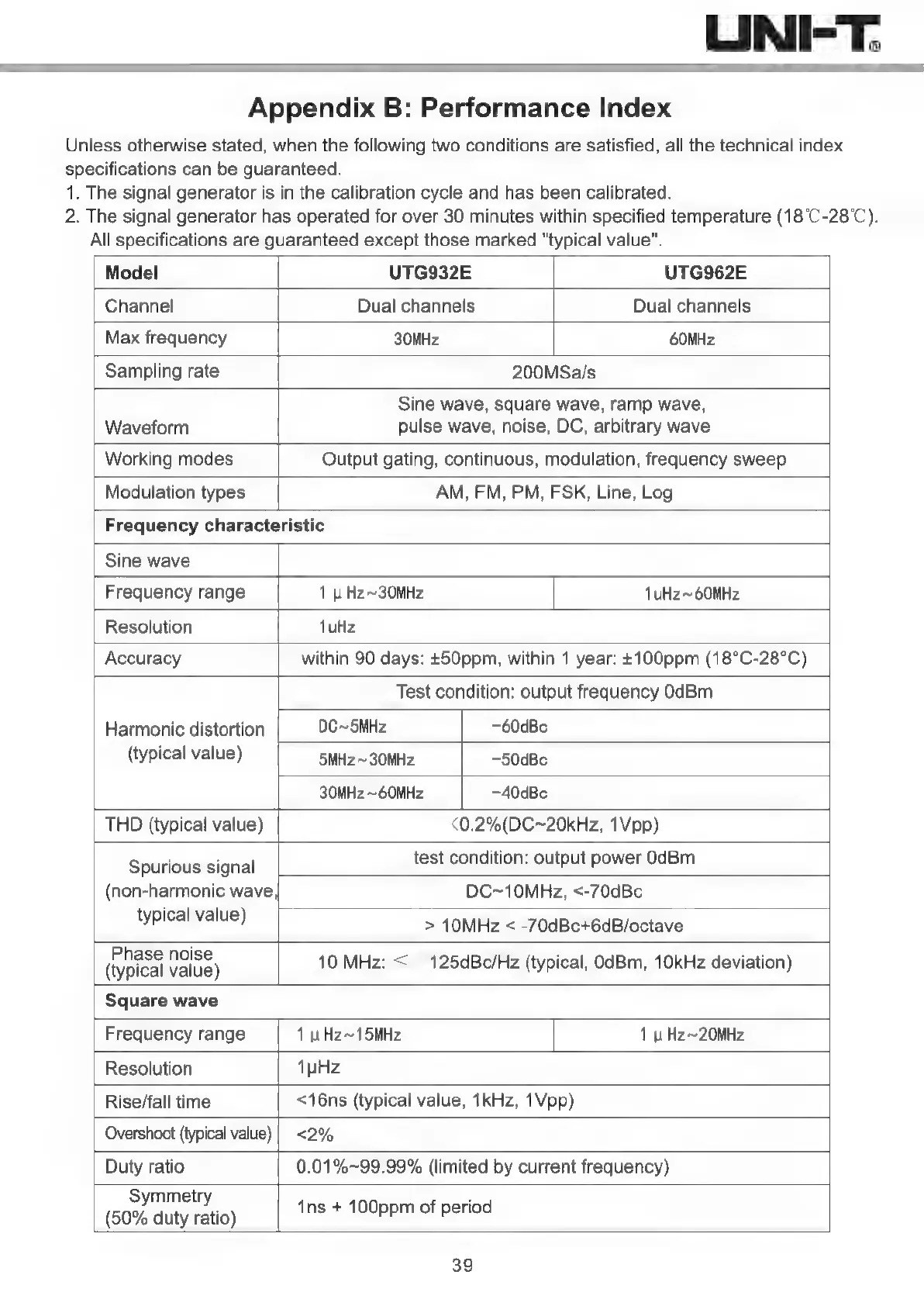

Appendix B: Performance Index
Unless otherwise stated, when the following two conditions are satisfied, all the technical index
specifications can be guaranteed.
1. The signal generator is in the calibration cycle and has been calibrated.
2. The signal generator has operated for over 30 minutes within specified temperature (18'C-28°C ).
All specifications are guaranteed except those marked “typical value”.
Model UTG932E UTG962E
Channel Dual channels Dual channels
Max frequency 3O0MHz 6OMHz
Sampling rate 200MSa/s
Sine wave, square wave, ramp wave,
Waveform pulse wave, noise, DC, arbitrary wave
Working modes Output gating, continuous, modulation, frequency sweep
Modulation types AM, FM, PM, FSK, Line, Log
Frequency characteristic
Sine wave
Frequency range 1 u Hz-30MHz 1uHz-60MHz
Resolution 1uHz
Accuracy within 90 days: +50ppm, within 1 year: #100ppm (18°C-28°C)
Test condition: output frequency OdBm
Harmonic distortion DC S5MHz —60dBe
(typical value) 5MHz-30MHz -50dBe
3OMHz —6OMHz -40dBc
THD (typical value) <0.2%(DC-20kHz, 1Vpp)
Spurious signal test condition: output power OdBm
(non-harmonic wave, DC-10MHz, <-70dBc
ypleal vals) > 10MHz < -70dBc+6dBloctave
Delen 10 MHz: < -125dBo/Hz (typical, OdBm, 10kHz deviation)
Square wave
Frequency range 1 uHz=15MHz 1 u Hz-20MHz
Resolution 1uHz
Rise/fall time <16ns (typical value, 1kHz, 1Vpp)
Overshoot (typical value) | <2%
Duty ratio 0.01%-99.99% (limited by current frequency)
Symmetry
(50% duty ratio) Ins + 100ppm of period
