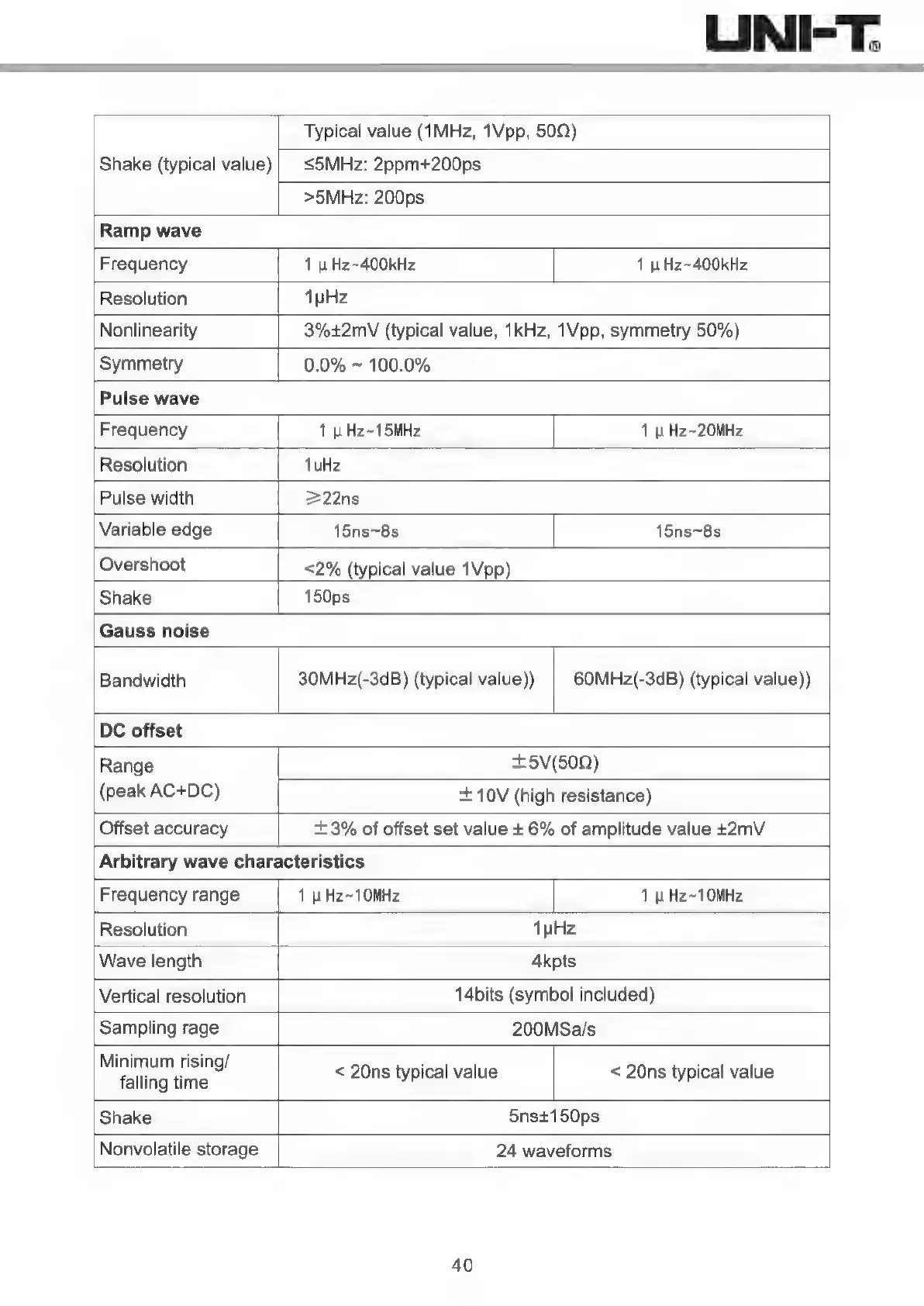

UNI-T UTG962E - Page 40

LINI-T,.
Shake (typical value)
Typical value (1MHz, 1Vpp, 500)
<5MHz: 2ppm+200ps
>5MHz: 200ps
Ramp wave
Frequency 1 Hz-400kHz 1 u Hz-400kHz
Resolution 1pHz
Nonlinearity 3%£2mV (typical value, 1kHz, 1Vpp, symmetry 50%)
Symmetry 0.0% — 100.0%
Pulse wave
Frequency 1 u Hz-15MHz 1 u Hz-20MHz
Resolution 1uHz
Pulse width 222ns
Variable edge 15ns-8s 15ns-8s
Overshoot <2% (typical value 1Vpp)
Shake 150ps
Gauss noise
Bandwidth 30MHz(-3dB) (typical value) 6OMHz(-3dB) (typical value))
DC offset
Range
+5V(500)
(peak AC+DC) £ 10V (high resistance)
Offset accuracy
3% of offset set value + 6% of amplitude value £2mV
Arbitrary wave characteristics
Frequency range 1 u Hz-1OMHz 1 u Hz-1O0MHz
Resolution 1pHz
Wave length 4kpts
Vertical resolution
14bits (symbol included)
Sampling rage
200MSa/s
Minimum rising/
falling time
< 20ns typical value < 20ns typical value
Shake
5ns2150ps
Nonvolatile storage
24 waveforms
