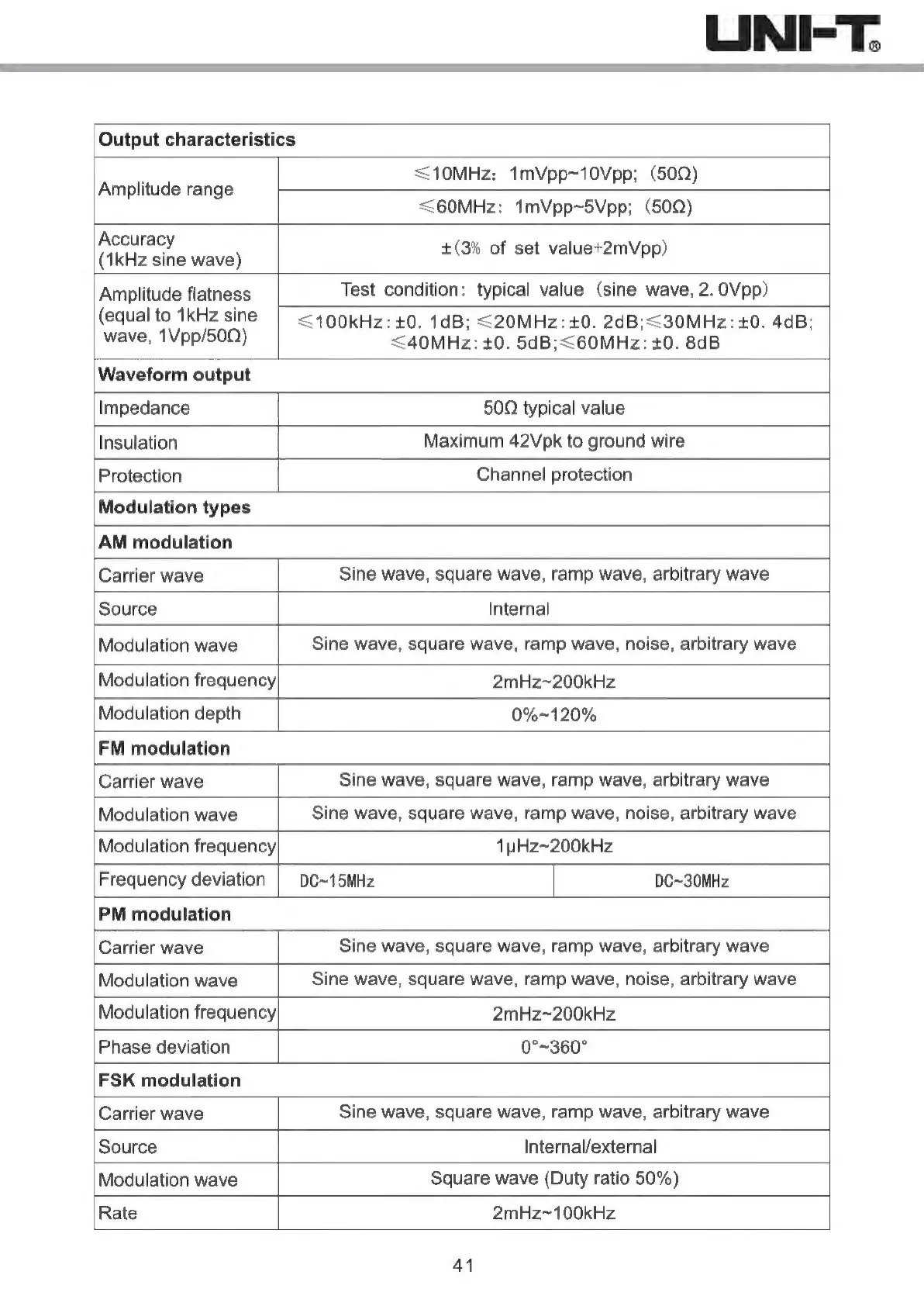

Output characteristics
<10MHz: 1mVpp=-10Vpp; (500)
Amplitude range
S60MHz: 1mVpp-5Vpp; (500)
Accuracy
(1kHz sine wave)
+(3% of set value+2mVpp)
Amplitude flatness
Test condition: typical value (sine wave, 2. OVpp)
(equal to 1kHz sine
wave, 1Vpp/500)
S100kHz:#0. 1dB; S20MHz: #0. 2dB;S30MHz: +0. 4dB;
S40MHz: #0. 5dB;S60MHz: #0. 8dB
Waveform output
Impedance 500 typical value
Insulation Maximum 42Vpk to ground wire
Protection Channel protection
Modulation types
AM modulation
Carrier wave
Sine wave, square wave, ramp wave, arbitrary wave
Source
Modulation wave
Internal
Sine wave, square wave, ramp wave, noise, arbitrary wave
Modulation frequency
Modulation depth
2mHz-200kHz
0%-120%
FM modulation
Carrier wave
Sine wave, square wave, ramp wave, arbitrary wave
Modulation wave
Sine wave, square wave, ramp wave, noise, arbitrary wave
Modulation frequency 1uHz-200kHz
Frequency deviation
DC-15MHz DC-30MHz
PM modulation
Carrier wave
Sine wave, square wave, ramp wave, arbitrary wave
Modulation wave
Sine wave, square wave, ramp wave, noise, arbitrary wave
Modulation frequency
2mHz-200kHz
Phase deviation 0°-360°
FSK modulation
Carrier wave
Sine wave, square wave, ramp wave, arbitrary wave
Source
Internal/external
Modulation wave
Square wave (Duty ratio 50%)
Rate 2mHz-100kHz
