Unic URW295CUR - Column Bolt Tightening; Column Bolt Tightening Torque and Order

1
6
5
8
2
3
9
74

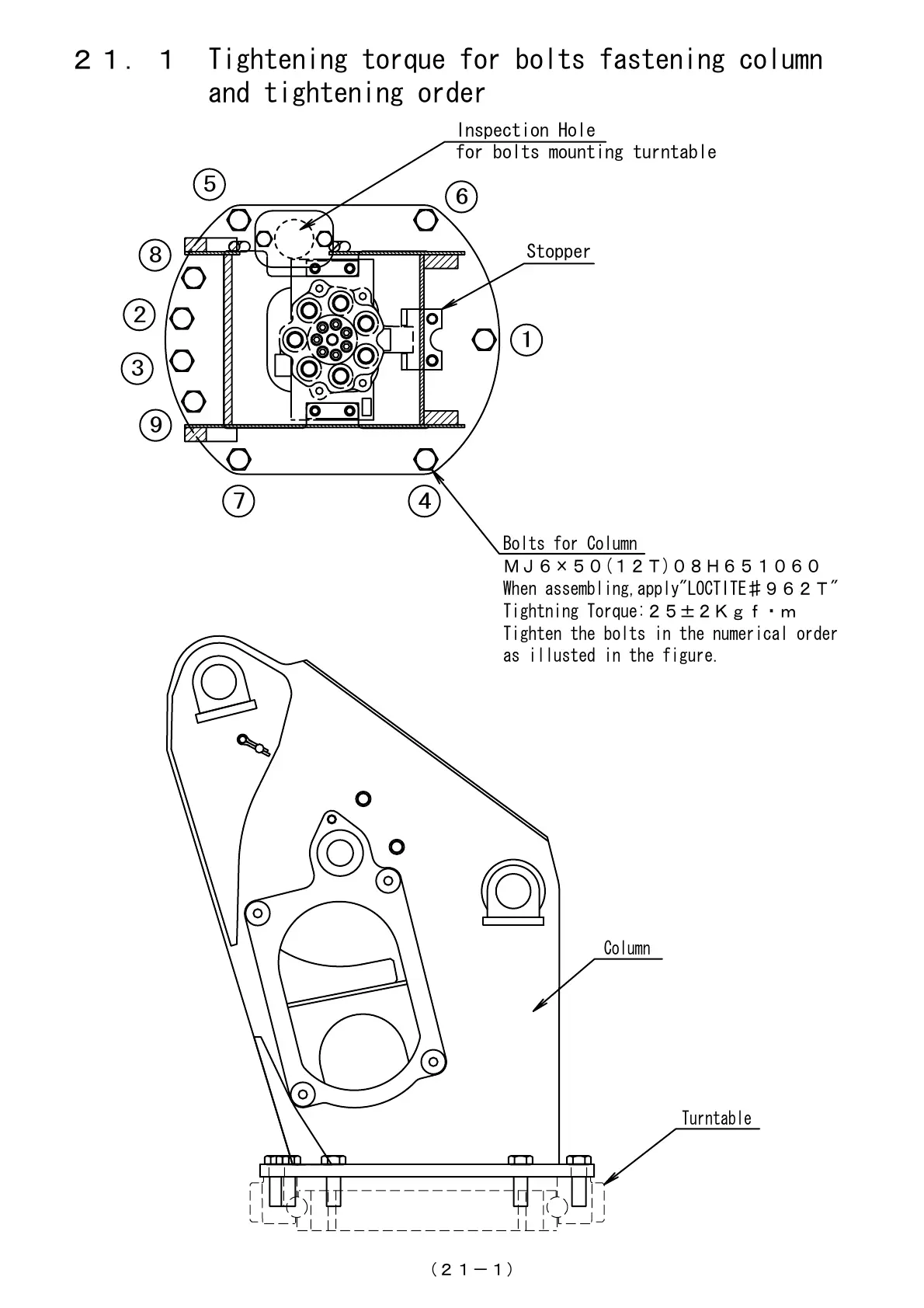

２１．１ Tightening torque for bolts fastening column
and tightening order
Column
Turntable
Stopper
Inspection Hole
for bolts mounting turntable
Bolts for Column
Ｍ󲦗６×５󲥽(１２Ｔ)󲥽８Ｈ６５１󲥽６󲥽
When assembling,apply"LOCTITE♯９６２Ｔ"
Tightning Torque:２５±２󲦘ｇｆ・ｍ
Tighten the bolts in the numerical order
as illusted in the figure.
󲥵２１－１）
