Unic URW295CUR - Battery Removal Procedures; URW295 C (Gasoline Engine) Battery Installation Location; Cover Removal Steps; Outrigger Extension Angle Adjustment

Cover
(2) Remove the M8 bolt shown in the Fig. 2 to remove the cover.
Then remove the M8 double nut system to remove the battery attachment bracket.
Remove M8 bolt to
remove cover.
Remove M8 double nut
system to remove battery
attachment bracket.
Fig. 2 Battery mounting position in detail
Battery
Battery attachment bracket
(3) Put the extension angle of outrigger ④ to an angle of approx. 90゜as in the Fig. 3.
Fig.3 Extension angle of outrigger in detail
Fig. 1 Battery mounting position

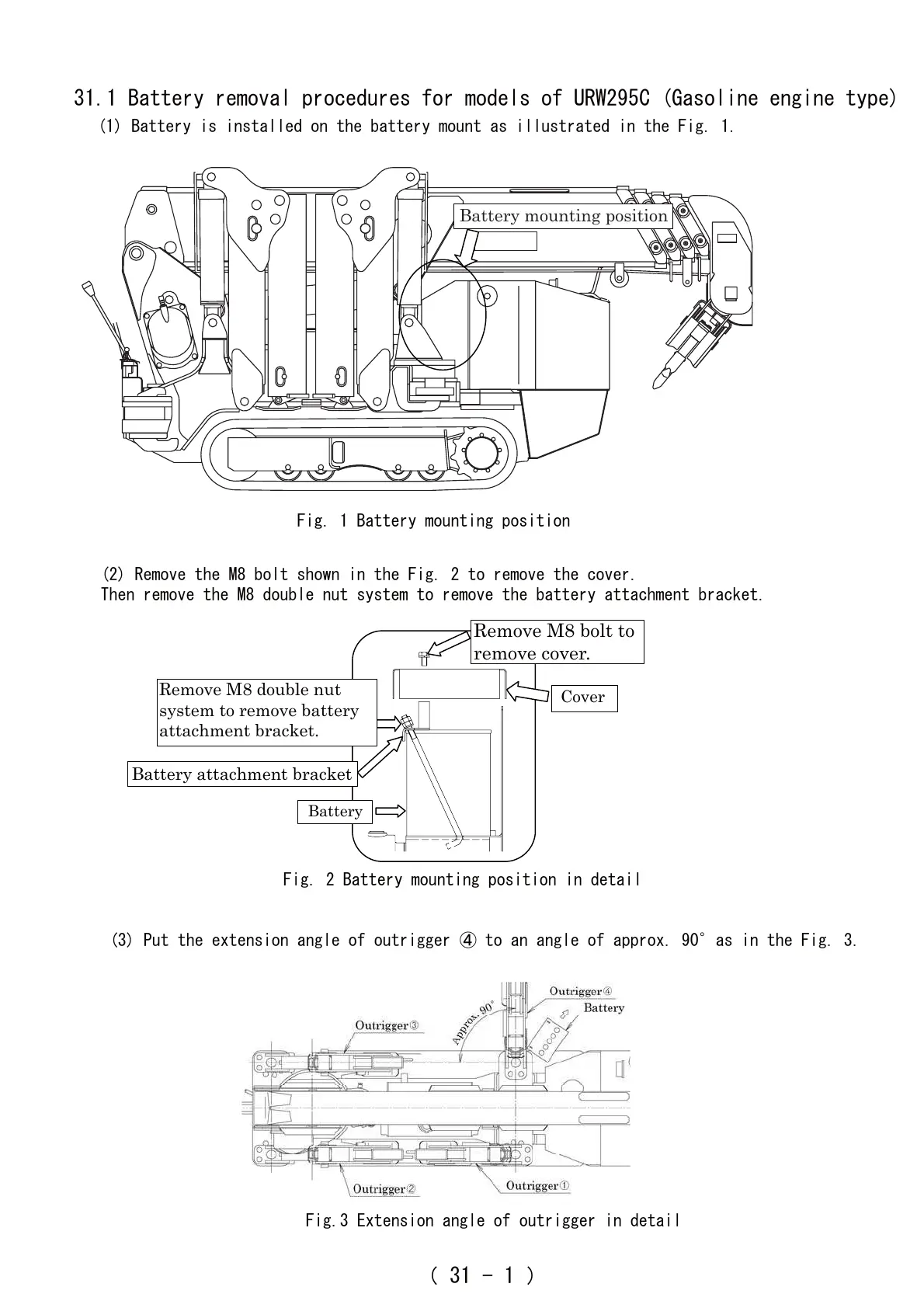

31.1 Battery removal procedures for models of URW295C (Gasoline engine type)
(1) Battery is installed on the battery mount as illustrated in the Fig. 1.
Battery mounting position
󲥵 31 - 1 ）
