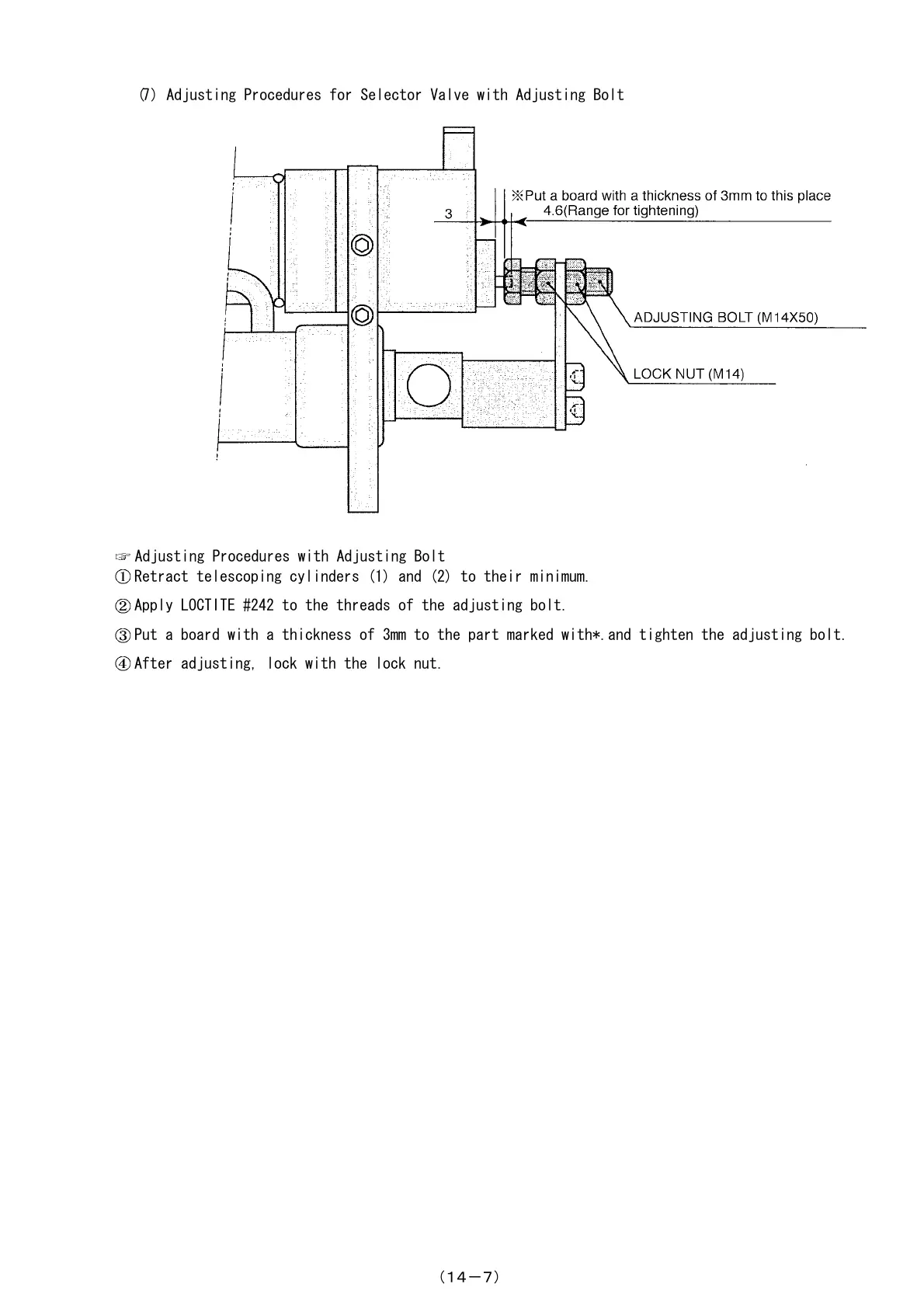

(7) Adjusting Procedures for Selector Valve with Adjusting Bolt
Adjusting Procedures with Adjusting Bolt
Retract telescoping cylinders (1) and (2) to their minimum.
Apply LOCTITE #242 to the threads of the adjusting bolt.
Put a board with a thickness of 3mm to the part marked with*.and tighten the adjusting bolt.
After adjusting, lock with the lock nut.
１４－７
