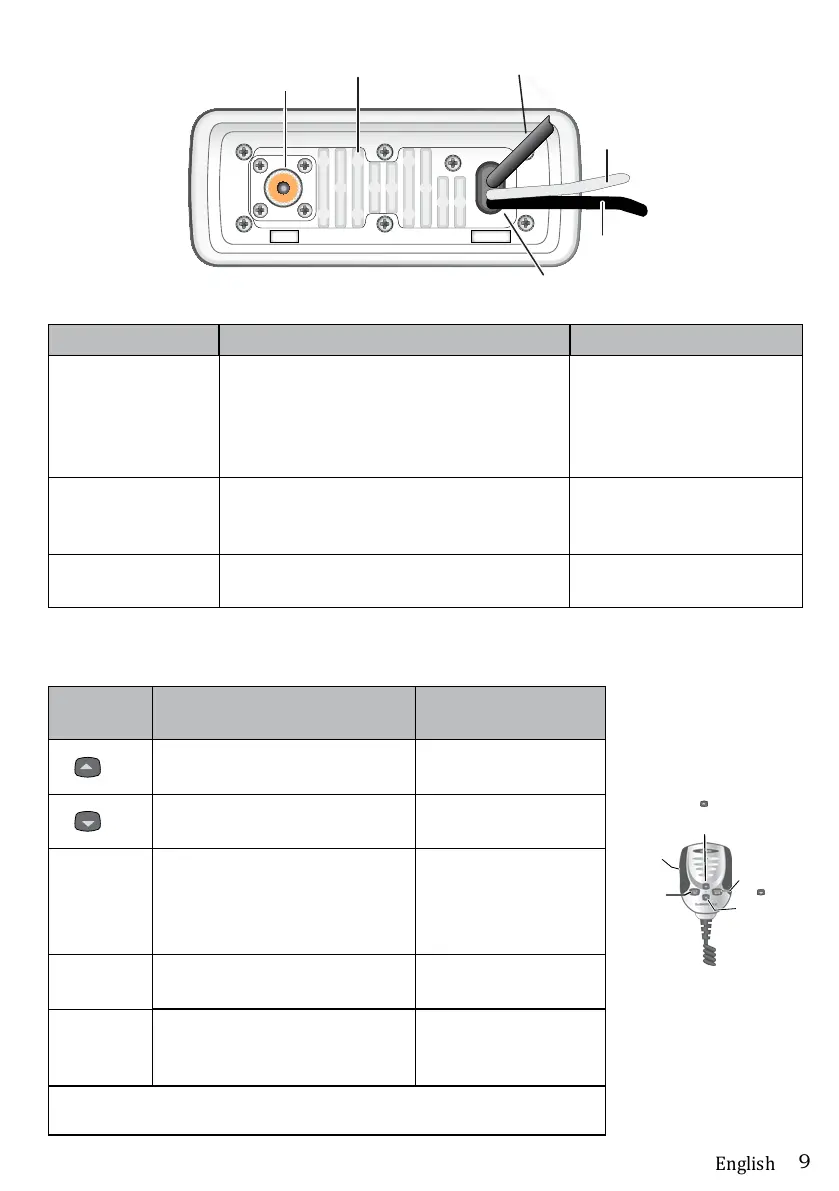

9


Connector/Cable Connects to... For details, see ...
Antenna
connector
External VHF antenna with a male
PL259 (SO238) connector and 50 Ω
impedance. Minimum 4 ft, 3dB rated
antenna for sailboats, 8 ft, 6 dB rated
for power boats.
Connecting the radio
(see page 33).
Power cable
Nominal 13.8 VDC power supply with
negative ground (10.5 VDC to 16.0
VDC) (Red wire +, black wire -).
Connecting the radio
(see page 33).
Accessory cable GPS receiver, GPS chartplotter.
Connecting accessories
(see page 34).

Button Press to...
Press and hold
to...
(
)
Move up one channel at a
time.
Move quickly up
the channels.
( )
Move down one channel at
a time.
Move quickly down
the channels.
16/9-TRI
1
st
press: Go to Channel 16.
2
nd
press: Go to Channel 9.
3
rd
press: Go back to the
original channel.
Go into Triple Watch
or Dual Watch mode
(see page 18).
PUSH-TO
TALK
Cancel scanning and stay on
a channel.
Talk on a channel.
SCAN/MEM
Activate the channel scan
feature; start scanning
channels.
Save/delete the
current channel from
memory.
NOTE:
SCAN/MEM
on the microphone functions the same as the
SCAN
and
MEM
buttons on the radio.
13.8V DC
ANTENNA
Black wire
(-)
Red wire
(+)
Power
Cable
Antenna
connector
(SO238)
Heat sink
Accessory
cable
16/9 TRI
(Triple/Dual-
Watch) button
UP button
(move up a
channel)
DOWN button
(move down
a channel)
SCAN/MEM
button
Push-to-Talk
button
