SFP Speed/Link/Act LED (Ports 1 - 2)
RJ45 (Ports 1 - 24)
SFP (Ports 1 - 2)
Reset Button
Console Port
Power Port
Off No Link
Green
Link Established at 1 Gbps
Flashing Indicates Activity
RJ45 ports support Power over Ethernet (PoE) and 10/100/1000 Ethernet connections.
Hot-swappable SFP ports support 1 Gbps connections.
This button serves two functions for the UniFi Switch:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the Reset button for more than
ve seconds.

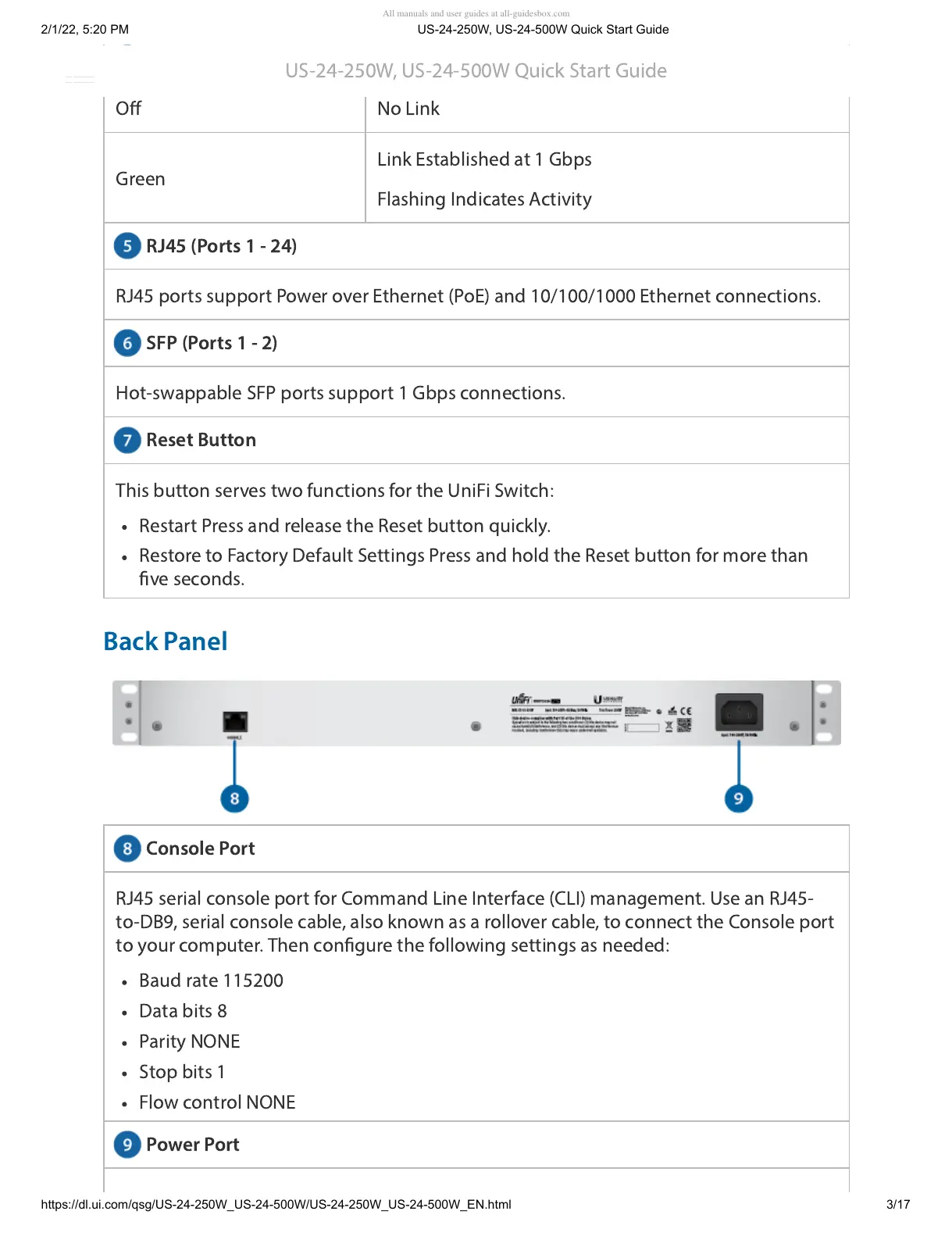

Back Panel
RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-
to-DB9, serial console cable, also known as a rollover cable, to connect the Console port
to your computer. Then congure the following settings as needed:
Baud rate 115200
Data bits 8
Parity NONE
Stop bits 1
Flow control NONE
