Uniforest 45M User Manual

25

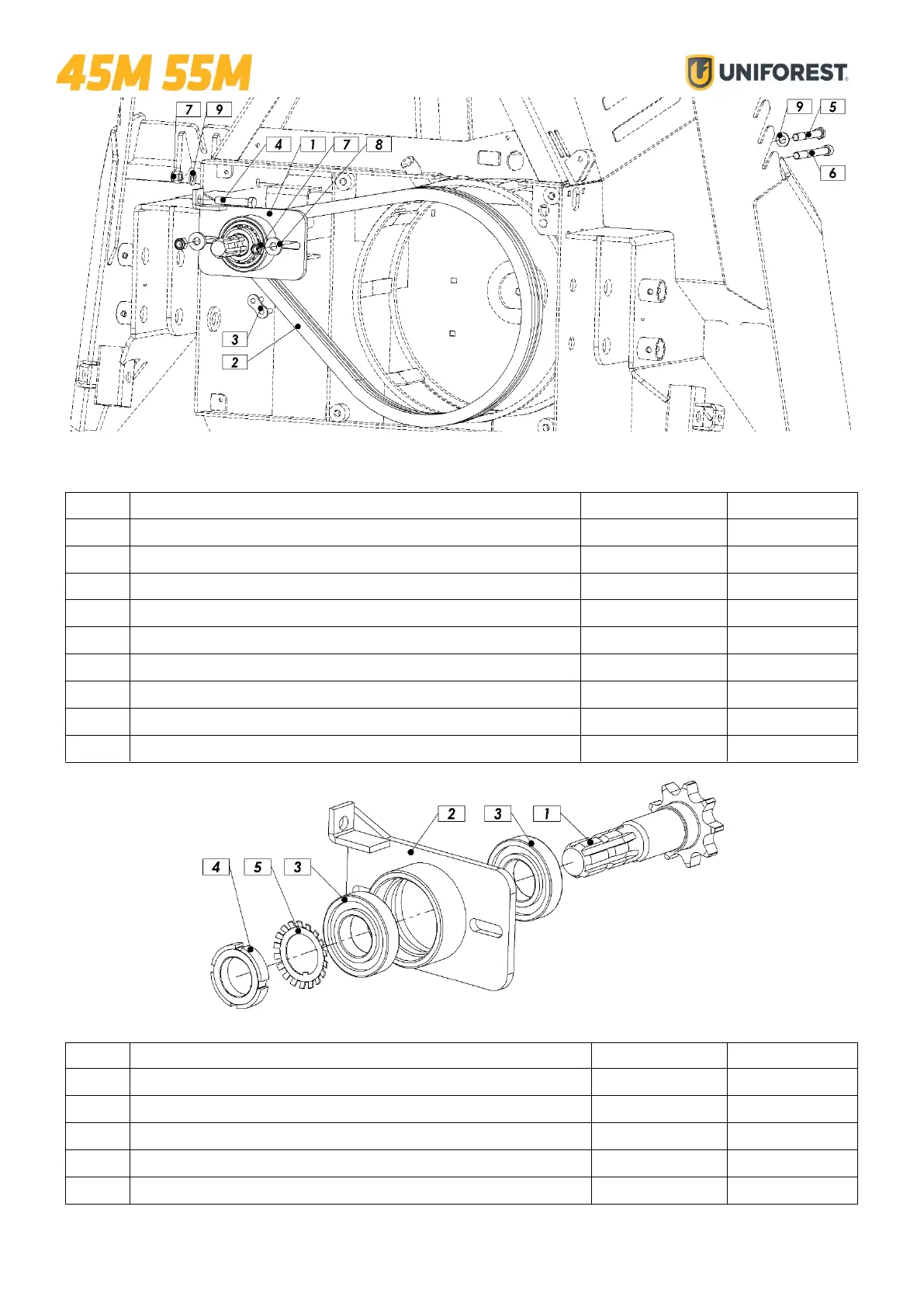

Figure 4: 5002.08.00.0 – Drive 45M/55M kpl.
Figure 5: 502.08.00.0 – Drive.
Pos.
Name
No. of pieces
Number
1
Drive kpl.
1
502.08.00.0
2
CHAIN RK 16 B-1 (Lange 57x25,4=1447,8)
1
1000292
3
Joint link SG 16 B1
1
1003488
4
Screw M12x65 Zn
1
1000045
5
Screw M12x95 Zn
1
1000047
6
Hexagon socket screw M12x120
1
1001095
7
Nut M12 Zn
3
1000142
8
Washer M12 Zn
2
1003632
9
Washer M12 Zn
2
1000161
Pos.
Name
No. of pieces
Number
1
Drive shaft
1
502.08.02.A
2
Drive housing var.
1
502.08.10.0
3
Bearing 6208 2RS
2
1000313
4
Nut KM8 ( M40x1,5)
1
1000145
5
Washer mb-8
1
1003510
