Uniforest 45M User Manual

24

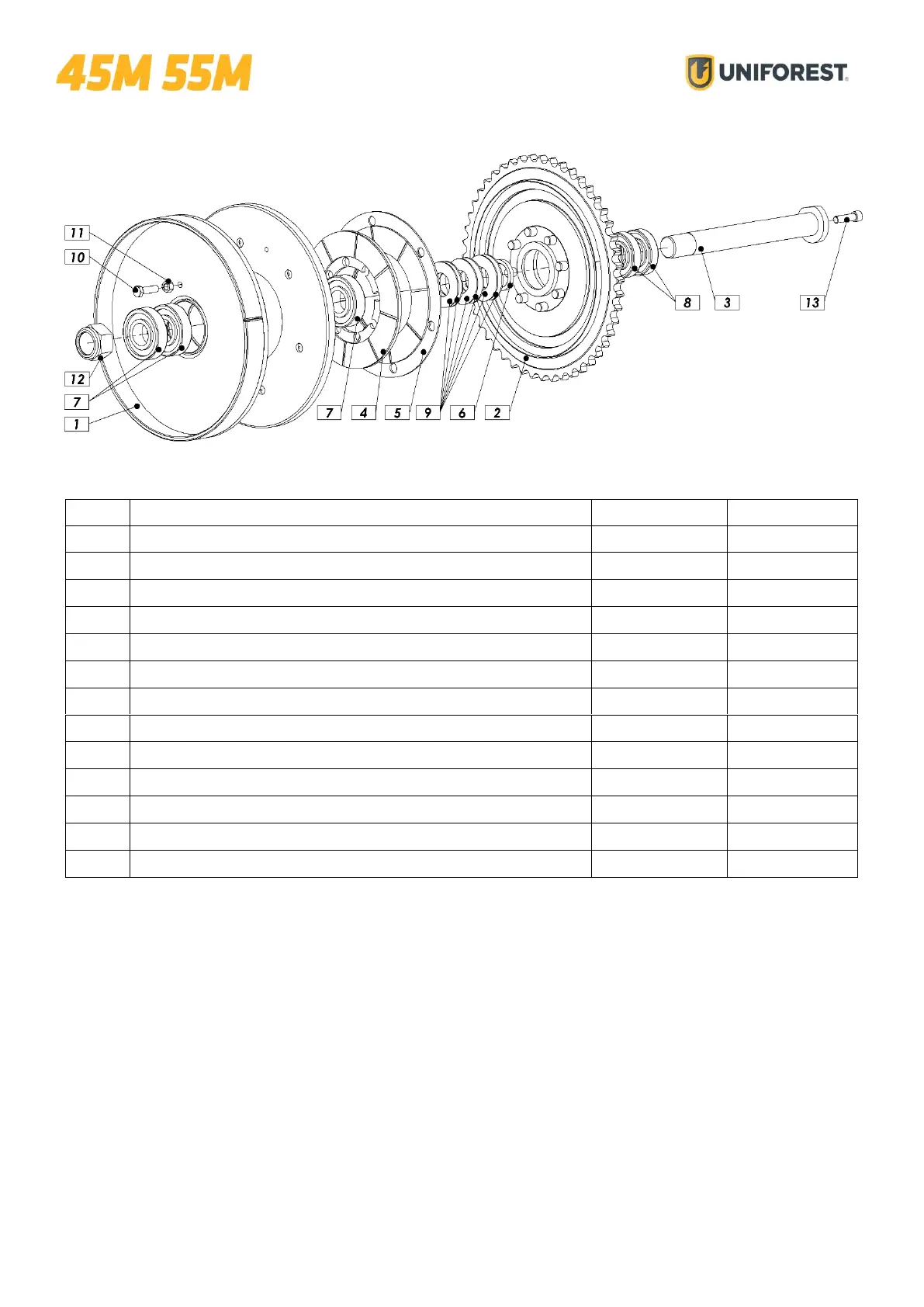

Figure 3: 5002.06.00.0 - Rope drum with a chain wheel.
Pos.
Name
No. of pieces
Number
1
Rope drum var.
1
5006.05.00.0
2
Chain wheel Z48 var.
1
5006.06.01.0
3
Drum shaft var.
1
5006.06.06.0
4
Clutch plate 240
1
5006.06.09.0
5
Clutch plate 274
1
5006.06.10.0
6
Distance bush
1
5006.06.14.0
7
Bearing 6308 ZZ
3
1000303
8
Bearing 6208 2Z
2
1000301
9
DISC SPRING 80x41x2,25
6
1000290
10
Screw M12x40 Zn
1
1000059
11
Nut M12 Zn
1
1000139
12
Nut M39
1
1000147
13
Hexagon socket screw M12x45
1
1000099
