UNIQUE 24& 30
15

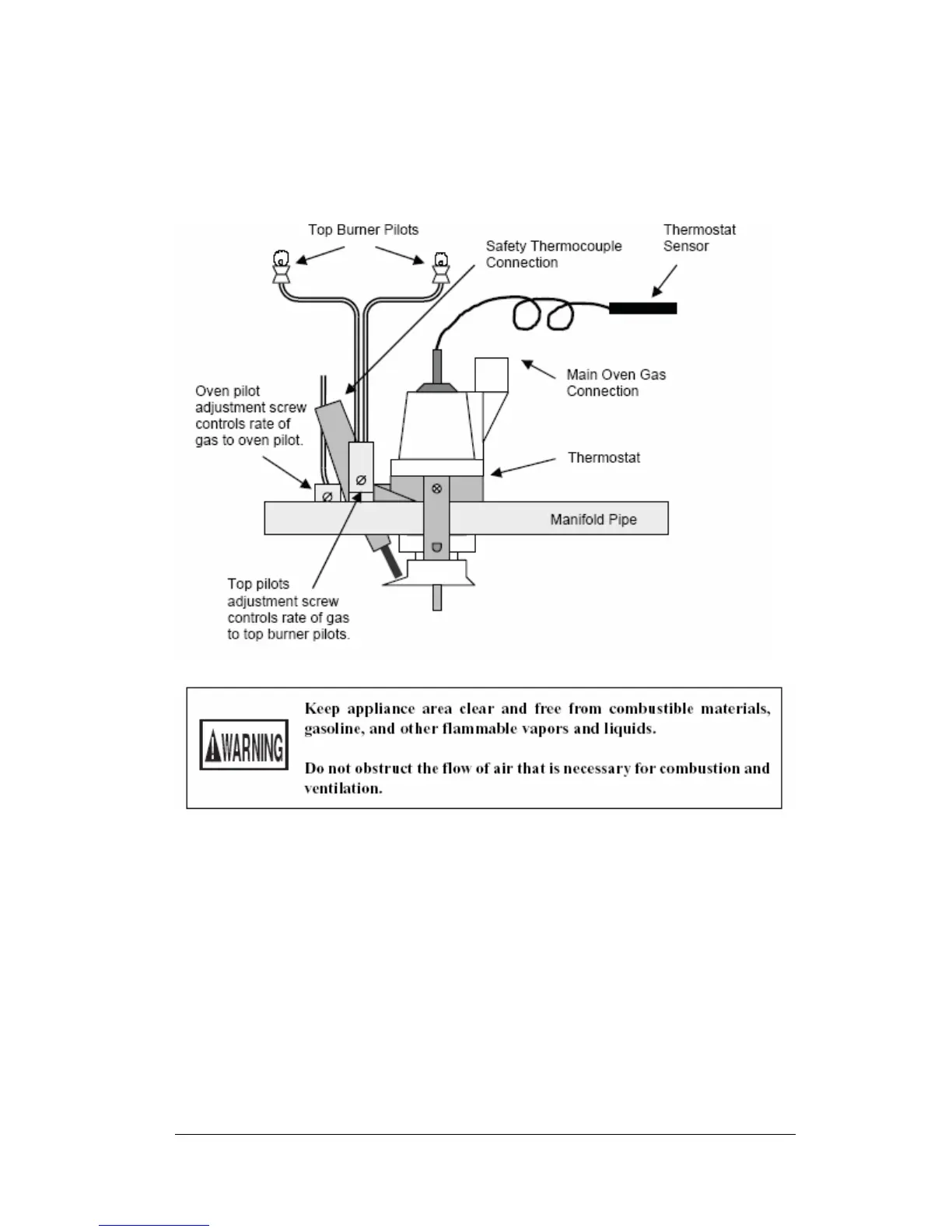

only a slight tip of yellow on the flame. Pilots are constant burning. DO NOT BLOW
OUT FLAME WITHOUT TURNING OFF PILOT ADJUSTMENT SCREW.
3. Top Burner Valves
Top burner valves have orifices that are dedicated to the type of fuel to be used. These
orifices are not adjustable. They must be changed completely to convert from one gas to
the other. DO NOT DISCARD THE UNUSED ORIFICES. They should be saved in
order to convert the range back to its original fuel.
When converting the gas valves, the minimum flame adjustment screw must be adjusted
through the center of the valve stem. You will need a 3/32” flat blade screw driver to
make this adjustment. Hold the valve stem and turn the adjustment screw until the proper
flame of approximately 1/8” is obtained.
Adjust the air shutter , which is located on the throat of each burner, to obtain the proper
mixture of gas and air to create the proper sharp blue flame without a red or yellow tip.
