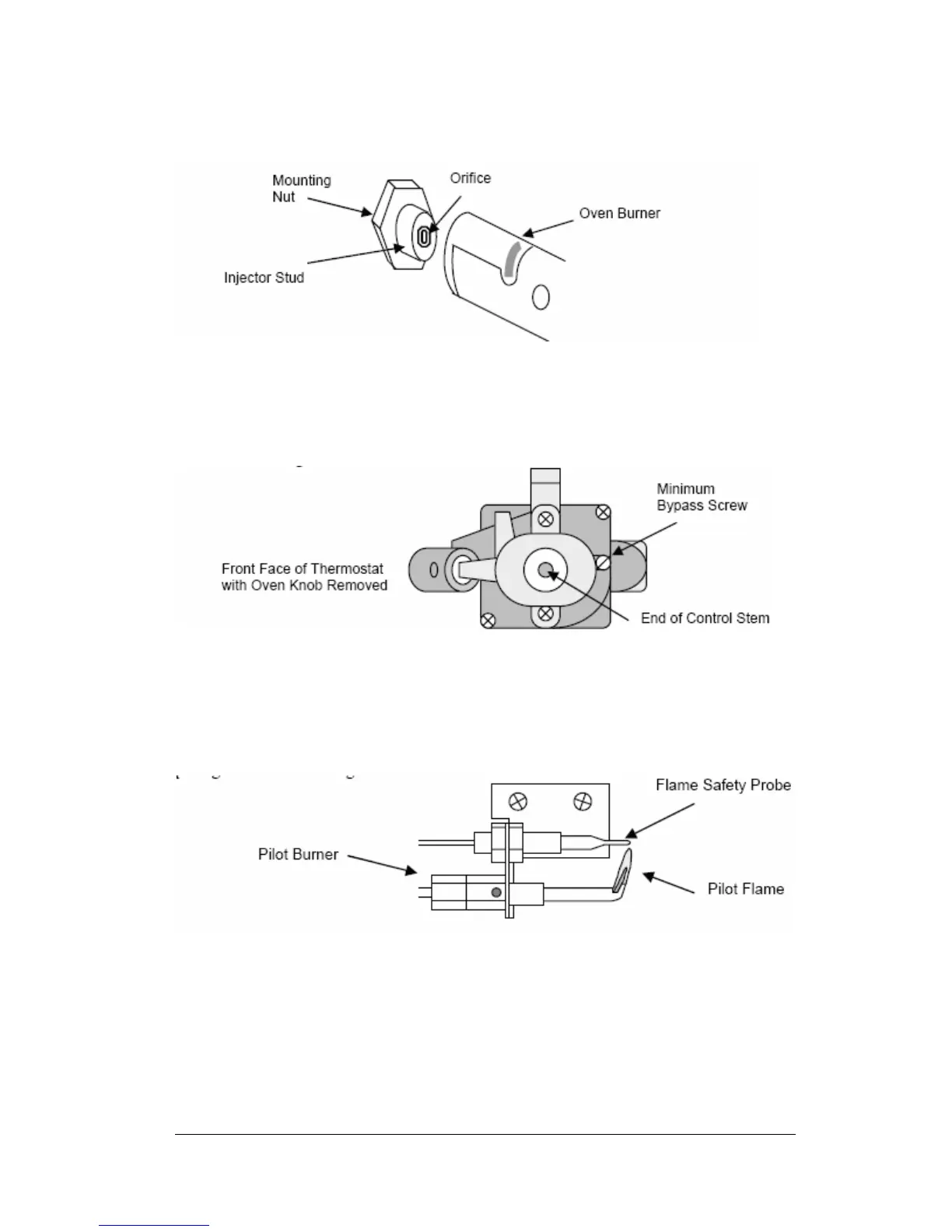

When converting the oven thermostat to LP (Propane) gas, the minimum bypass
screw must be screwed in all the way until it tightens. To convert back to natural gas,
turn the screw counterclockwise until the minimum burner flames appear as a row of
1/8” diameter dots along the side of the burner.
Oven Pilot
The oven pilot is located along the left hand side of the oven burner. It is fastened
under the flame safety probe. The flame of the oven pilot ignites main burner gas
when the oven is turned on. If the pilot flame is not present, the flame safety device
will not allow pilot gas or main burner gas to flow.
Pilot flame size is set by the adjustment screw located along the side of the
thermostat. The outer tip of the flame should just barely reach the underside of the
end of the flame safety probe. The pilot screw must be adjusted if the range is
converted to LP gas.
