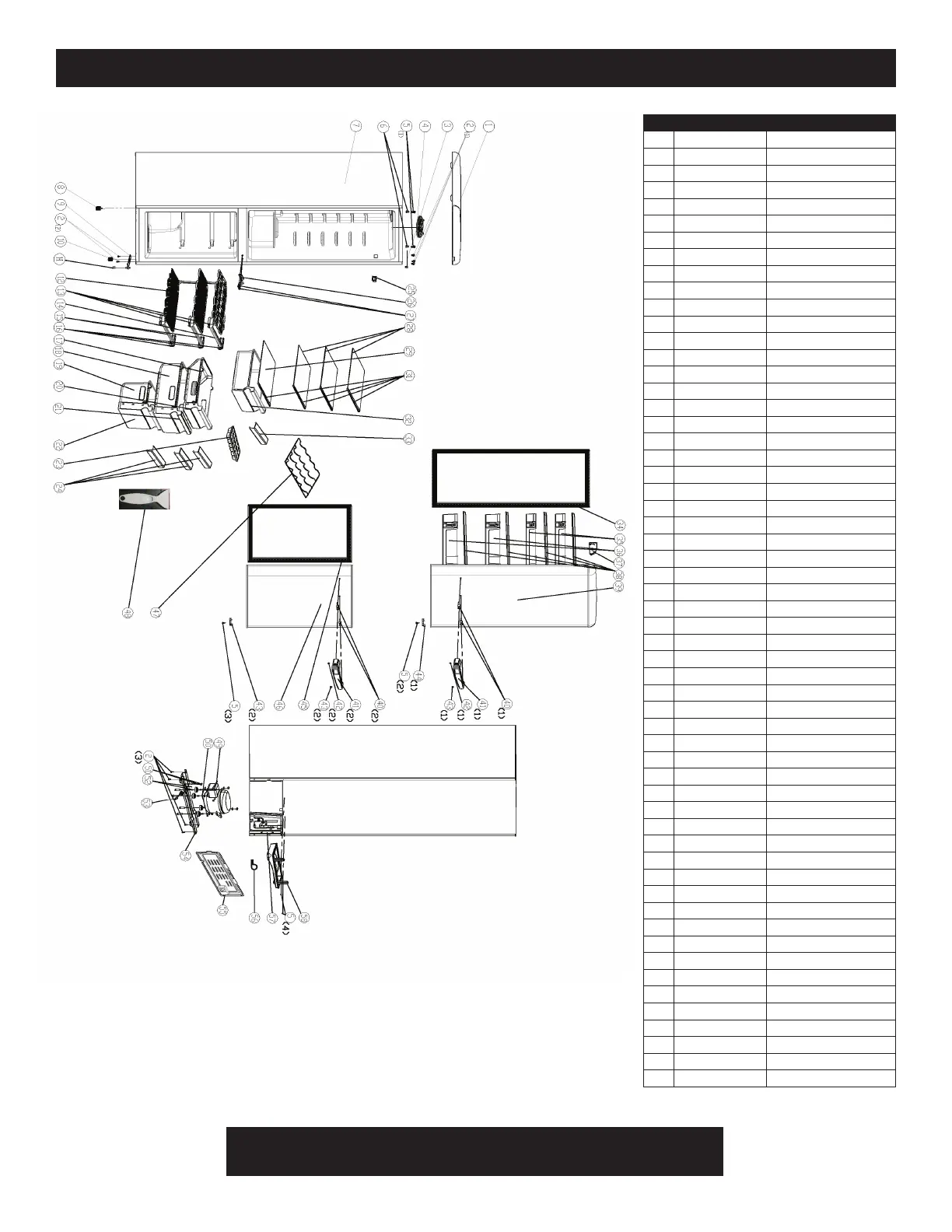

PARTS DIAGRAM & LIST
Please visit our website www.uniqueappliances.com to view a PDF
version of the schematics which will allow you to zoom in and out
ITEM # PART # DESCRIPTION
1 UGP-BCD275215-01 Plastic Top cover
2 UGP-BCD275215-02 Screw M5x16
3 UGP-BCD275215-03 Upper hinge group
4 UGP-BCD275215-04 Ceiling light group
5 UGP-BCD275215-05 Screw ST4.2x16
6 UGP-BCD275215-06 Cover fixing base
7 UGP-BCD275-07 Cabinet
8 UGP-BCD275215-08 Adjustable foot
9 UGP-BCD275215-09 Lower hinge parts
10 UGP-BCD275215-10 Low adjustable foot 1
11 UGP-BCD275215-11 Low adjustable foot 2
12 UGP-BCD275-12 F Evaporator
13 UGP-BCD275215-13 Left stop block
14 UGP-BCD275-14 Ornament strip for evaporator 1
15 UGP-BCD275-15 Ornament strip for evaporator 2
16 UGP-BCD275215-16 Right stop block
17 UGP-BCD275175-17 Top Crisper drawer body 1
18 UGP-BCD275175-18 Top Crisper drawer body 2
19 UGP-BCD275175-19 Crisper drawer body bottom 1
20 UGP-BCD275175-20 Top Crisper drawer panel 1
21 UGP-BCD275175-21 Top Crisper drawer panel 2
22 UGP-BCD275175-22 Crisper drawer panel bottom
23 UGP-BCD275215-23 Ice tray
24 UGP-BCD275-24 Chrome Trim for drawers
25 UGP-BCD275215-25 Door switch
26 UGP-BCD275215-26 Middle hinge
27 UGP-BCD275-27 Screw ST5x12
28 UGP-BCD275-28 Glass Shelves
29 UGP-BCD275-29 Crisper drawer cover
31 UGP-BCD275-31 Chrome Trim for glass shelves
32 UGP-BCD275-32 Crisper drawer
33 UGP-BCD275-33 Chrome Trim for drawers
34 UGP-BCD275-34 Upper door seal
35 UGP-BCD275215-35 Top Door Rack
36 UGP-BCD275215-36 Bottom Door Rack
37 UGP-BCD275215-37 Top hinge group
38 UGP-BCD275215-38 Chrome Trim for Door Racks
39 UGP-BCD275-39 Upper door
40 UGP-BCD275215175-40 Fixed base for handle
41 UGP-BCD275215175-41 Handle
42 UGP-BCD275215175-42 Screws M5*8
43 UGP-BCD275215175-43 Screws M5*8
44 UGP-BCD275215-44 Door stopper
45 UGP-BCD275-45 Bottom door seal
46 UGP-BCD275-46 Bottom door
47 UGP-BCD275215-47 Wine Rack
48 UGP-BCD275215-48 Ice Scoop
49 UGP-BCD275215-49 Process tube
50 UGP-BCD275215-50 AC compressor
51 UGP-BCD275215-51 Screw M4X10
52 UGP-BCD275215-52 Flat Head Screw
53 UGP-BCD275215-53 Power supply cord with plug
54 UGP-BCD275215-54 Compressor base
55 UGP-BCD275215-55 Back cover
56 UGP-BCD275215-56 Fixing Clamp for drying filter
57 UGP-BCD275215-57 Drier filter
58 UGP-BCD275215-58 Drip tray
