8
The default left side orientation of the door can be changed to the
right side. Use the following procedure to change the side of the
door hinge.
Tools required: Slot screwdriver, Cross screwdriver, Spanner
1. Set the thermostat to the 0 position and disconnect the power
plug from the electrical outlet.
2. Tilt the appliance backwards to an angle of 45° and securely sup
port it.
3. Remove the shelves, crisper and egg tray from the unit.
4. Remove the 2 stoppers with a screwdriver (flat screwdriver).

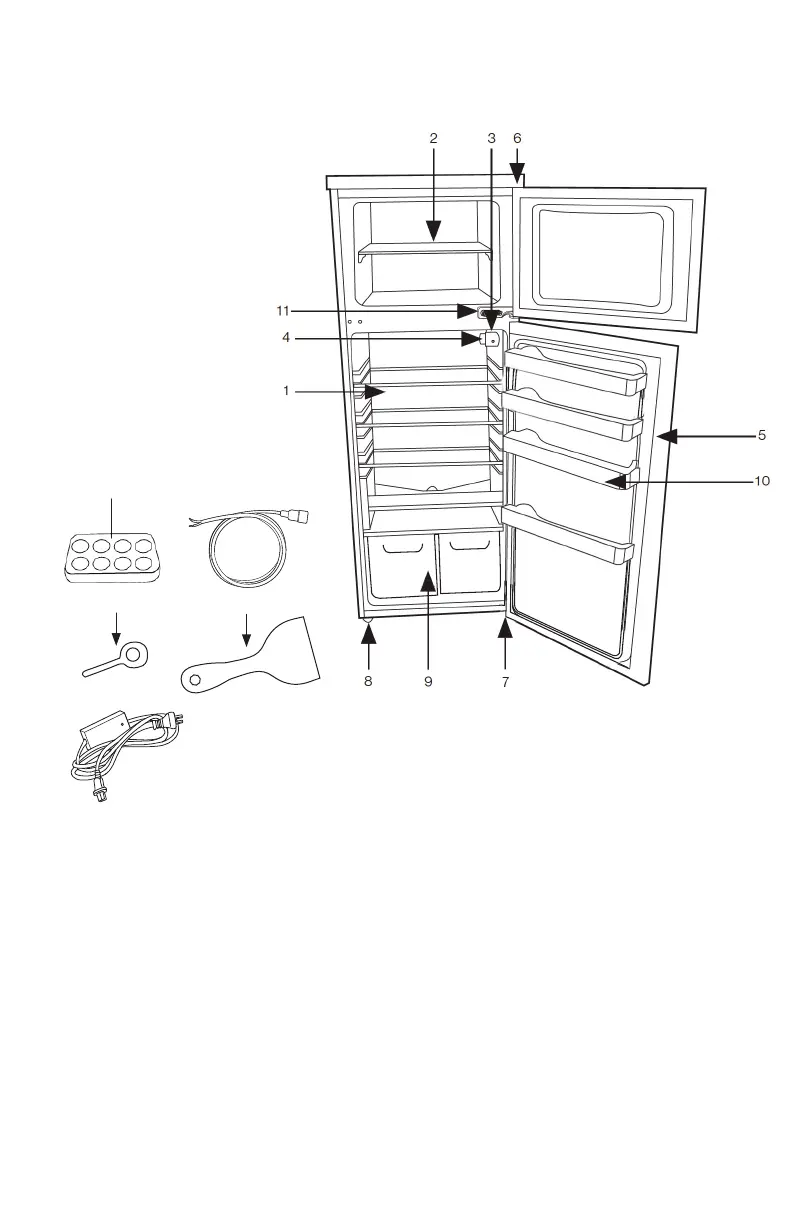

PARTS LIST
PARTS LIST
1: Shelf
2: Freezer compartment
3: Bulb with cover
4: Thermostat 0 - 7
5: Door
6: Upper hinge
7: Lower hinge
8: Adjustable feet
9: Crispers
10: Detachable door rack
11: Middle hinge
12: Egg Tray
13: Power Cable
14: AC/DC Plug (optional
for on-grid use)
15 Ice Scraper
16 Drain Cleaner
12
13
DOOR REMOVAL AND REVERSAL
AC/DC plug
(optional for on-grid use)
*sold separately
15
16
To Next Page
