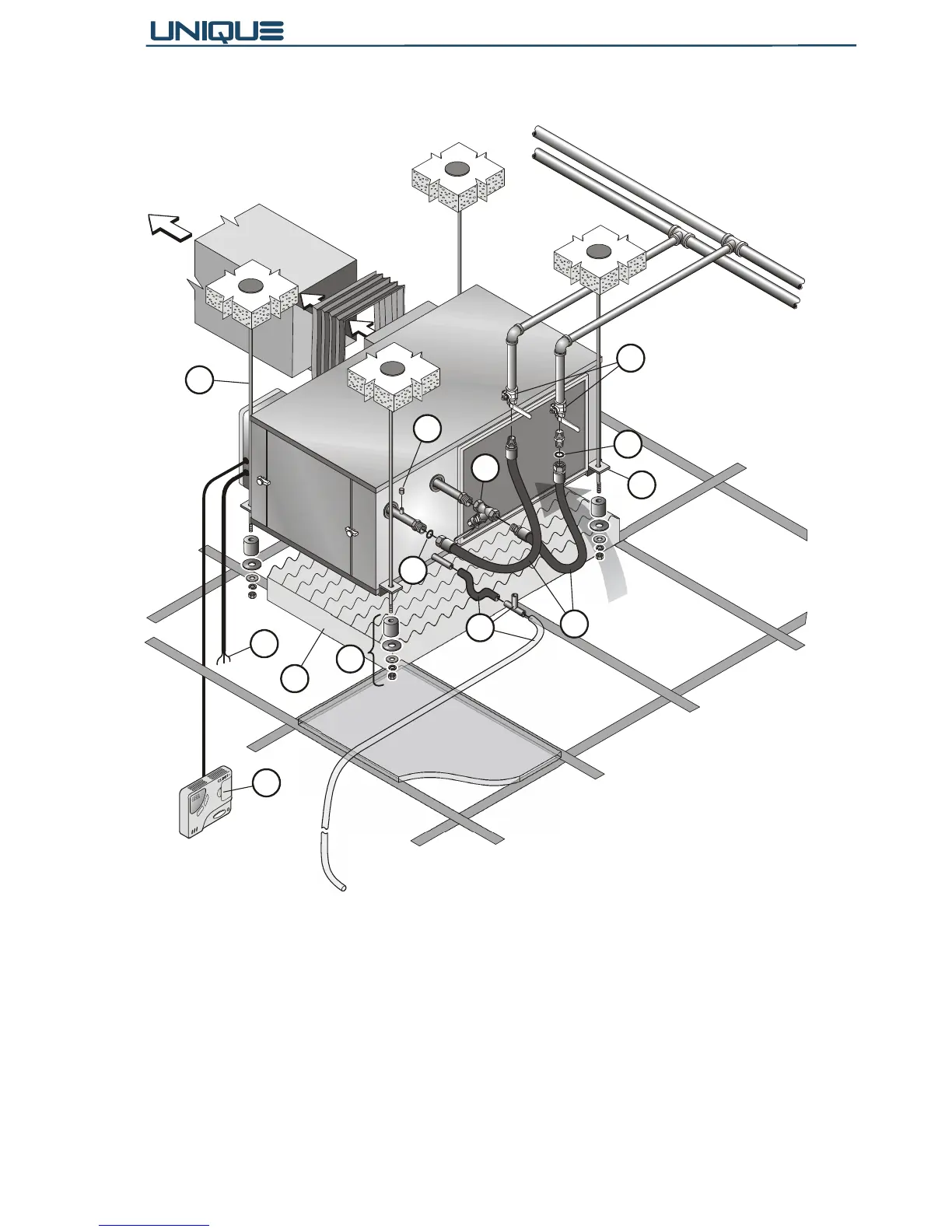

7.3 Typical WS Installation
Fig. 7-1
1. Rubber Shock Absorbers. 7. Control Unit.
2. Strainer. 8. Electrical cable.
3. PTFE or Rubber ring. 9. Acoustic Insulation.
4. Flexible hose. 10. Hanger Mounting Brackets.
5. Cut-Off Valves. 11. Hanger Anchors.
6. Rubber Joints (Siphon, T-Connection and Drain Hose). 12. Air Vent Plug.
