Series
Advanced air conditioning systems
7.6 Connecting the Drain Hose
Connect the supplied rubber siphon (6) to the drain hose connection. See Fig. 7-1 for details.
The T- connection (breather, not supplied) and the drain hose (not supplied) immediately
follow the siphon.
7.7 Connecting the Ducting Work
• To obtain optimal results, duct cross sections, connections, elbows and branches must
be properly designed. We highly recommend seeking for expert advice on this matter.
• Use flexible sleeve to connect the ducting to the air conditioner.

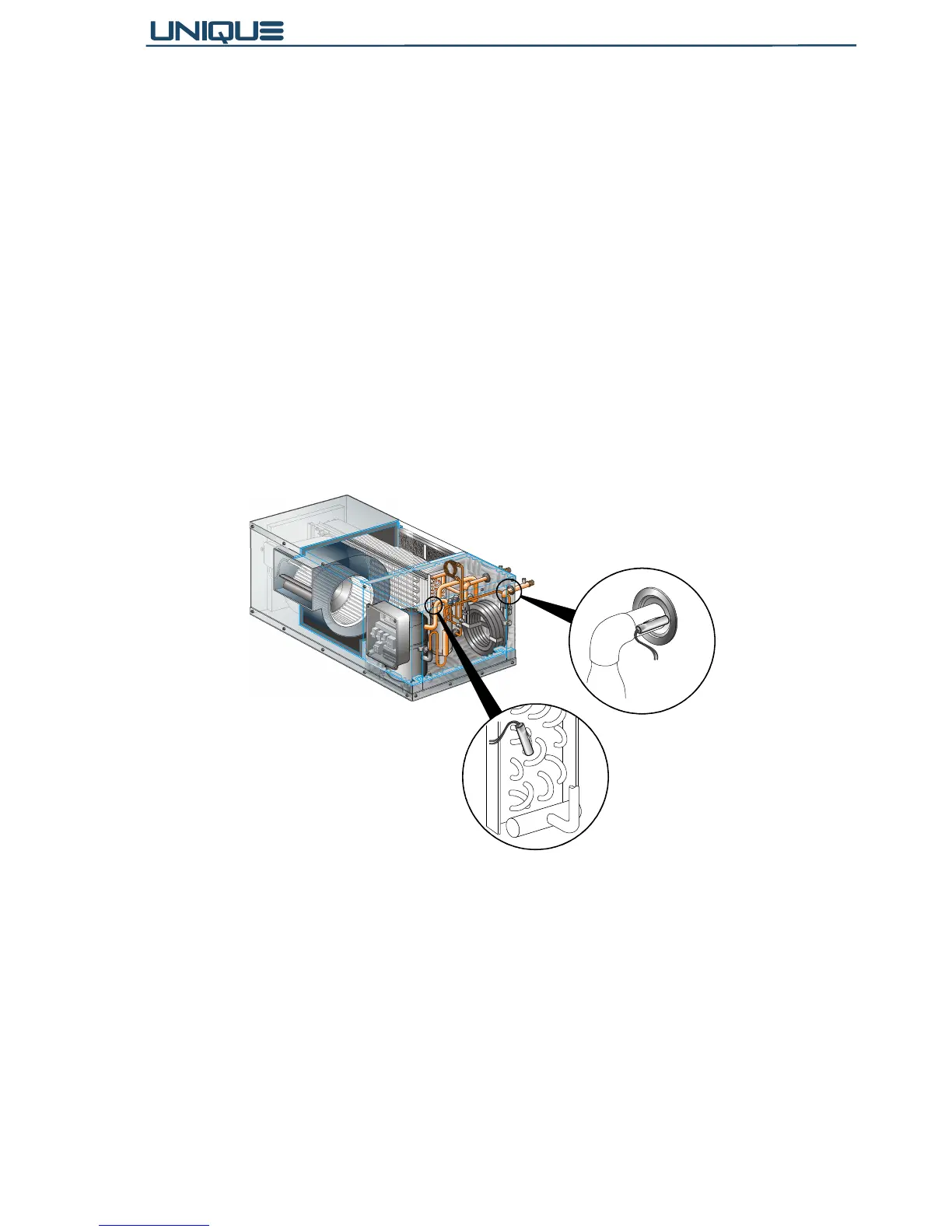

7.8 Connecting the Temperature Sensor Bulbs
• See Fig. 7-4 for identification.
• The temperature sensor bulbs are factory pre-assembled.
• In case of replacement, make sure that the new bulb is fitted into the locating tube with
touch-fit.
Fig. 7-4
.
